Understanding the Role of Mixer Settlers in Chemical Separation Processes

Mixer settlers play a crucial role in chemical separation processes, offering efficient and cost-effective solutions for various industries. These versatile devices combine mixing and settling stages to separate immiscible liquids, extract valuable compounds, and purify materials. By leveraging the principles of liquid-liquid extraction, mixer settlers enable precise control over mass transfer and phase separation. Their modular design allows for customization to suit specific application requirements, making them indispensable in fields such as hydrometallurgy, pharmaceutical production, and wastewater treatment. As we delve deeper into the world of mixer settlers, we'll explore their inner workings, key applications, and the advantages they bring to modern chemical processing.

The Mechanics of Mixer Settlers: How They Work

Mixing Stage: Enhancing Mass Transfer

The mixing stage is where the magic begins in a mixer settler. Here, two immiscible liquids are brought into intimate contact, creating a large interfacial area for mass transfer. The mixer typically consists of an agitator or impeller that vigorously blends the phases. This turbulent mixing ensures that the desired compounds are efficiently transferred between the liquids. The mixing intensity can be fine-tuned by adjusting the agitator speed, usually ranging from 100 to 800 RPM, depending on the specific requirements of the separation process.

Settling Stage: Gravity-Driven Separation

After mixing, the combined liquids flow into the settling chamber. Here, gravity takes over, allowing the phases to separate based on their density differences. The settler is designed with baffles and weirs to guide the flow and maintain a stable interface between the phases. The heavier phase settles to the bottom, while the lighter phase rises to the top. The residence time in the settler is crucial for achieving clean separation, and the interface height can be adjusted to optimize the process.

Continuous Operation: Multi-Stage Extraction

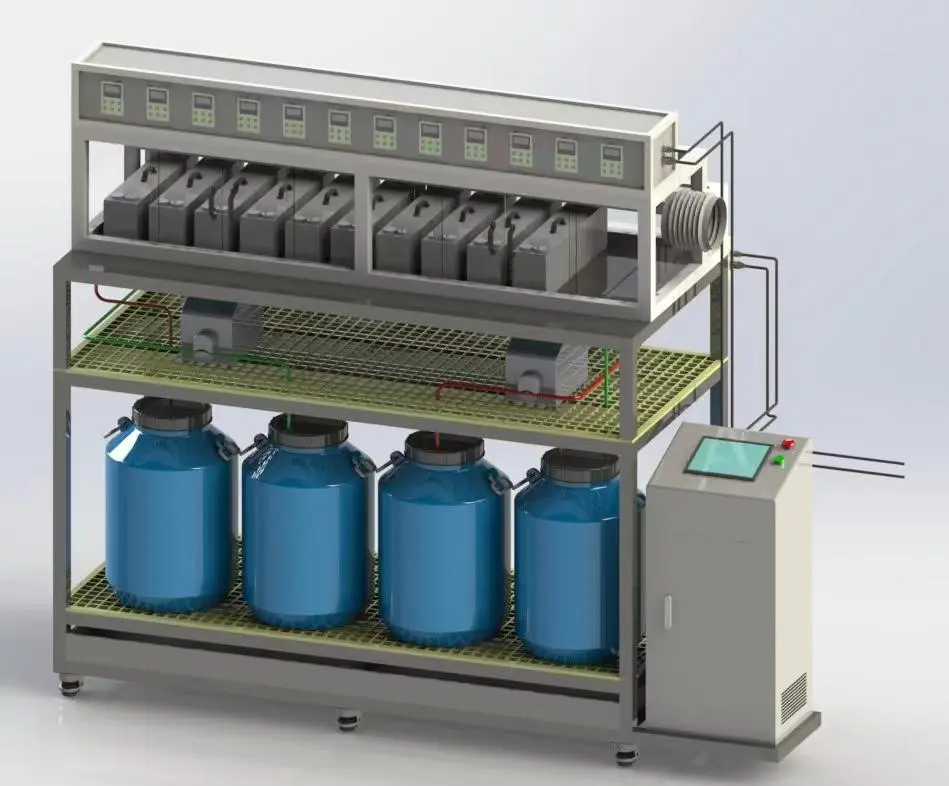

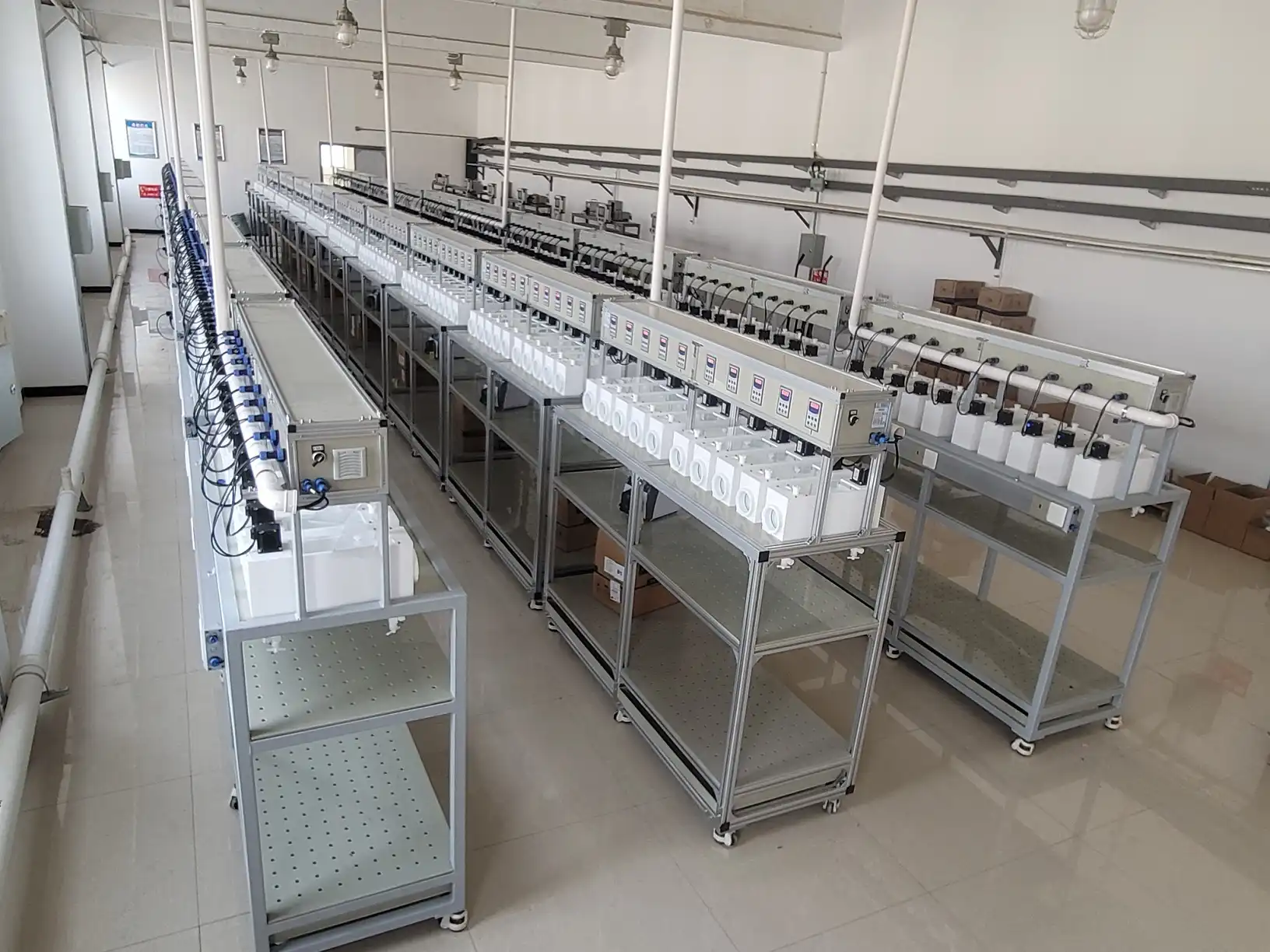

One of the key advantages of mixer settlers is their ability to operate continuously in multi-stage configurations. By connecting multiple units in series, complex separation tasks can be accomplished with high efficiency. Each stage represents a theoretical equilibrium step, and the number of stages can be tailored to achieve the desired separation purity. This modular approach allows for easy scale-up and flexibility in process design, making mixer settlers adaptable to changing production needs.

Applications Across Industries: Versatility in Action

Rare Earth Element Purification

In the realm of advanced materials, mixer settlers excel at purifying rare earth elements like neodymium and dysprosium. These elements are critical for manufacturing high-performance magnets used in electric vehicles and wind turbines. The extraction process begins with leaching rare earth-containing ores, followed by selective solvent extraction in mixer settlers. By carefully controlling pH levels and using specialized extractants, individual rare earth elements can be separated with high purity. This capability is crucial for reducing dependence on imported materials and supporting sustainable technology development.

Battery Recycling and Metal Recovery

As the world shifts towards electric mobility, the need for efficient battery recycling grows. Mixer settlers play a vital role in recovering valuable metals like lithium and cobalt from spent lithium-ion batteries. After mechanical preprocessing, the battery materials undergo leaching to dissolve the metals. Mixer settlers then facilitate the liquid-liquid extraction process, where specific organic solvents selectively capture the target metals. Through multi-stage extraction and stripping, high-purity lithium and cobalt can be recovered, ready for use in new battery production. This closed-loop approach not only conserves resources but also reduces the environmental impact of battery manufacturing.

Nuclear Fuel Processing

In the nuclear industry, mixer settlers are indispensable for the precise separation of uranium and plutonium. The PUREX (Plutonium Uranium Redox EXtraction) process, a cornerstone of nuclear fuel reprocessing, relies heavily on mixer settler technology. By using specialized organic solvents and carefully controlled chemical conditions, uranium and plutonium can be selectively extracted from spent nuclear fuel. The multi-stage nature of mixer settlers allows for high separation factors, ensuring that the recovered materials meet stringent purity requirements for nuclear safety and non-proliferation standards.

Advantages and Innovations in Mixer Settler Design

Enhanced Efficiency Through Customization

Modern mixer settlers offer a high degree of customization to optimize performance for specific applications. Manufacturers like Cuiyan Technology provide options for adjustable agitator speeds, variable phase interface heights, and modular stage configurations. This flexibility allows process engineers to fine-tune the extraction efficiency and separation quality. Additionally, innovations in baffle design help prevent unwanted bubble formation, ensuring stable phase separation even at high throughputs. The ability to tailor mixer settlers to exact process requirements leads to improved product quality and reduced operating costs.

Material Advancements for Challenging Environments

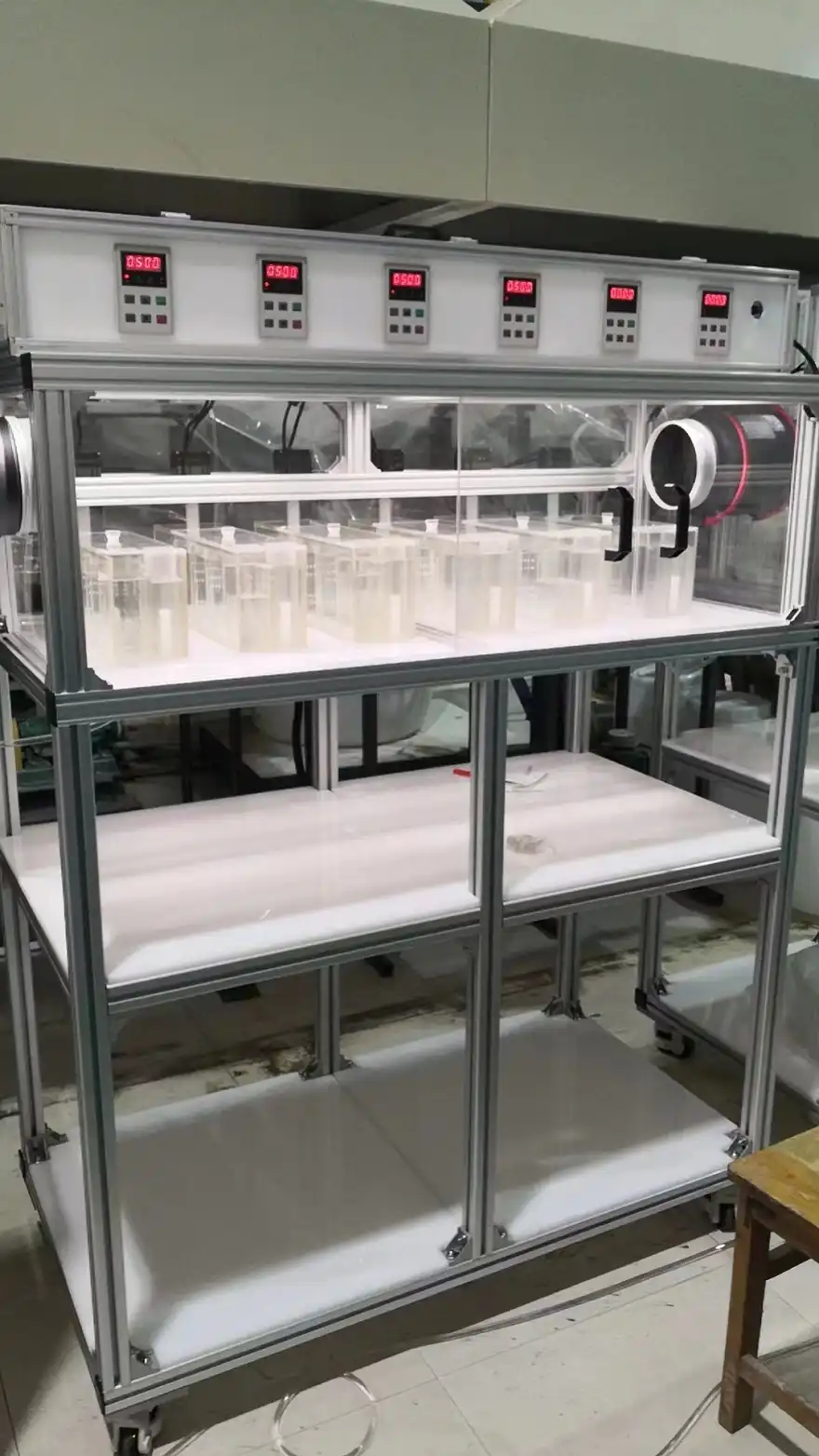

The choice of construction materials significantly impacts the performance and longevity of mixer settlers. For corrosive environments, such as those encountered in hydrometallurgical processes, materials like PTFE (polytetrafluoroethylene) and high-grade stainless steel (e.g., SUS316L) offer exceptional chemical resistance. These materials can withstand pH ranges from 1 to 14, making them suitable for both highly acidic and alkaline conditions. For applications requiring visual monitoring of the extraction process, transparent materials like PMMA (polymethyl methacrylate) allow real-time observation of mixing dynamics and interface behavior.

Integration of Smart Technologies

The latest generation of mixer settlers incorporates smart technologies to enhance control and monitoring capabilities. Sensors integrated into the units can track critical parameters such as pH, temperature, and liquid levels in real-time. This data can be fed into programmable logic controllers (PLCs) for automated process control and optimization. Some advanced systems even offer predictive maintenance features, analyzing operational data to forecast when components might need replacement or servicing. These smart features not only improve process reliability but also contribute to overall plant efficiency by reducing downtime and optimizing resource utilization.

Conclusion

Mixer settlers stand as a cornerstone technology in chemical separation processes, offering a powerful combination of efficiency, flexibility, and reliability. From rare earth purification to nuclear fuel reprocessing, these versatile devices continue to evolve, meeting the challenges of modern industrial applications. As we've explored, the key to their success lies in the seamless integration of mixing and settling stages, coupled with customizable designs and material innovations. By understanding and harnessing the capabilities of mixer settlers, industries can achieve higher product purities, reduce environmental impact, and drive technological progress across various sectors.
