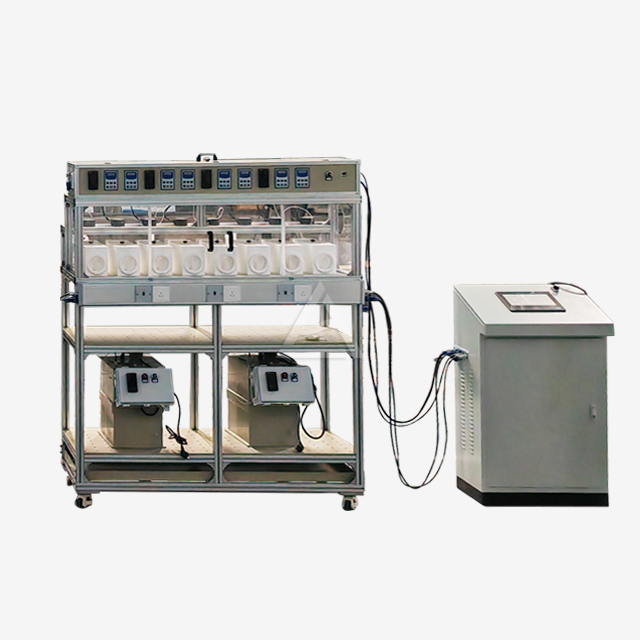

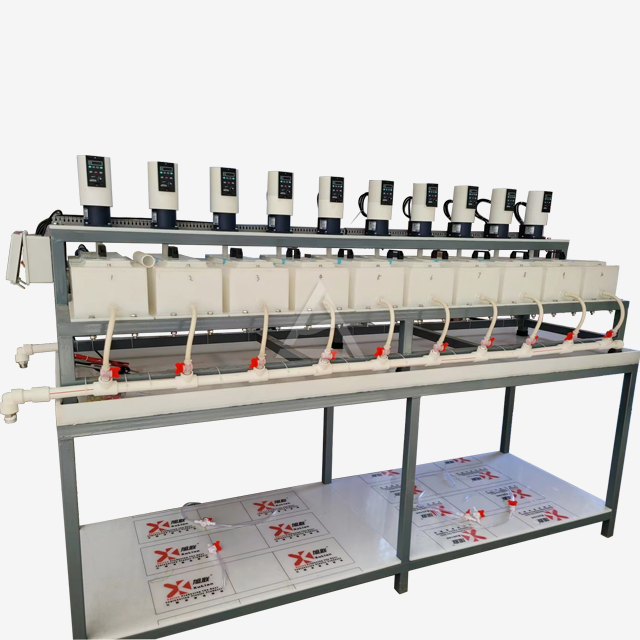

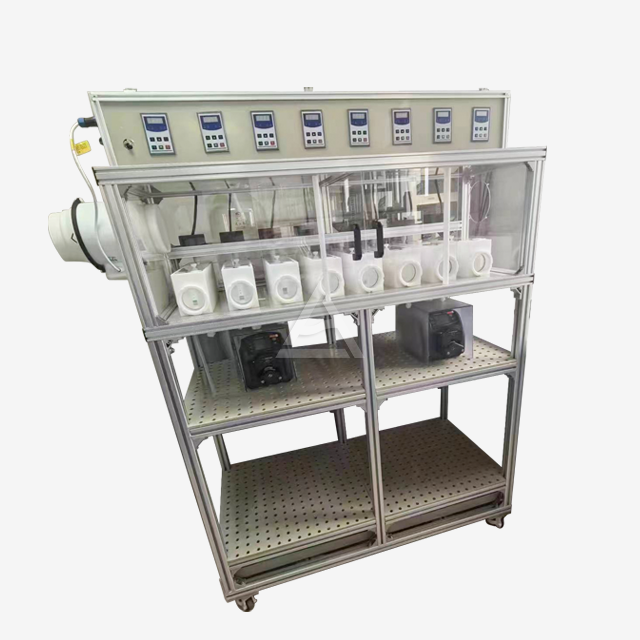

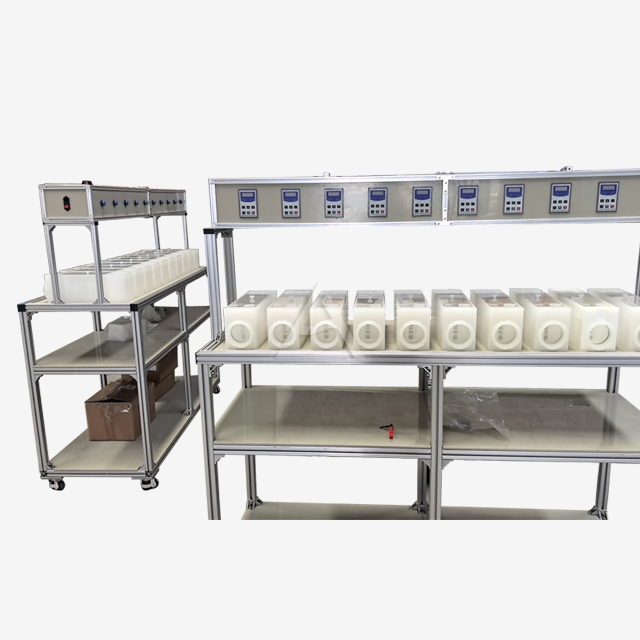

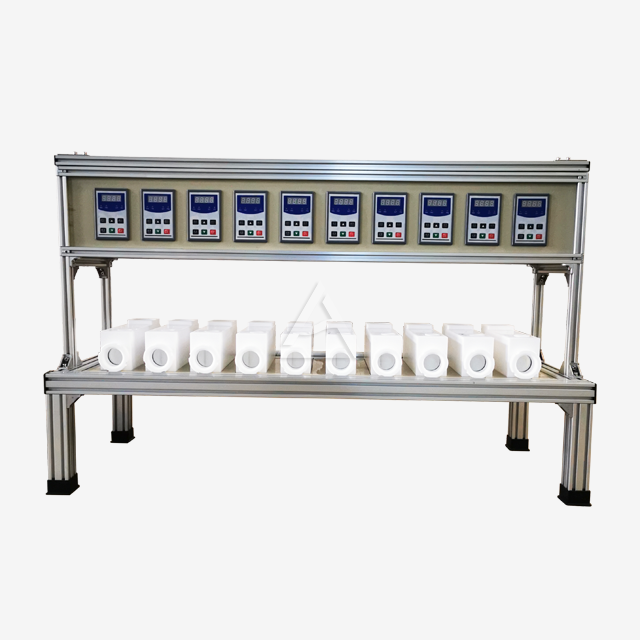

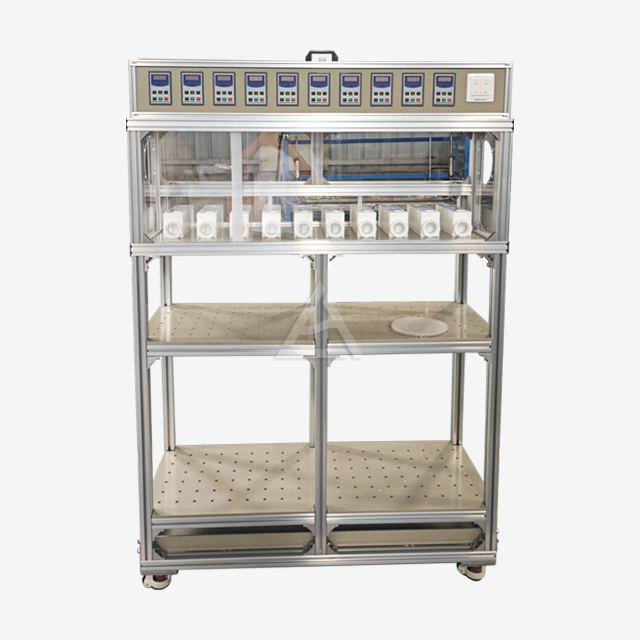

Extraction Device
Configuration：desktop base edition, mobile standard edition, environmentally friendly high edition
Mixing volumn: 200ml, 300ml, 500ml, 1L, 2L, 3L or customized
Plate thickness：5mm，6mm，8mm，10mm
Material: PP，PPH，PVC，transparent PVC，PMMA，PTFE，PEEK，SUS，Ti
Production process: welding，bonding，bending，injection molding，integral forming
Optional function: temperature control device, pH adjustment device, water-bath jacket device, anti-overflow tank device，watch window device
Advantages: high extraction rate，perfect separation effect；No leakage risk, easy operation，sturdy and beautiful shape；Adjustable mixer-settler stage amount, adjustable agitator speed, and adjustable phase interface height；Highly customizable
Application：rare earth extraction;nickel cobalt extraction;rubidium cesium extraction;salt lake brine extraction;nuclear extraction;isotope extraction;lithium battery recycling;vanadium battery recycling;copper electroplate recycling;biological wastewater recycling
- Product Description
Shaanxi Cuiyan: Your Trusted Extraction Device Manufacturer & Supplier
Shaanxi Cuiyan Technology Co.,Ltd. — Your trusted extraction device manufacturer & supplier since 2012. With 37+ experts and 9+ patented innovations, we deliver lab-to-industrial solutions featuring automation, modular design, and unmatched corrosion resistance. Over 300 global clients rely on our 10,000+ installed stages for efficient rare metal, lithium, and chemical processing.Our lab-scale product combines adaptability with precision, ideal for R&D, pilot testing, and small-batch production.
Extraction Device Specifications
| Specifications | Options |
|---|---|
| Configuration | Desktop Base Edition, Mobile Standard Edition, Environmentally Friendly High Edition |
| Mixing Volume | 200ml, 300ml, 500ml, 1L, 2L, 3L (Customizable) |
| Material | PP, PPH, PVC, Transparent PVC, PMMA, PTFE, PEEK, SUS, Ti |
| Plate Thickness | 5mm, 6mm, 8mm, 10mm |
| Production Process | Welding, Bonding, Bending, Injection Molding, Integral Forming |
| Optional Functions | Temperature Control, pH Adjustment, Water-Bath Jacket, Anti-Overflow Tank |
Why Choose Our product?
- High Extraction Rate: Achieve 95%+ separation efficiency with adjustable agitator speeds.
- Zero Leakage: Robust PP/PVC materials and precision welding ensure safety.
- Customizable Workflows: Add sensors (pH, temperature) or integrate with IoT systems.
- Energy-Saving Design: Reduce solvent waste and energy costs by 30%.
Material & Processing Methods
- Corrosion-Resistant Options: PTFE for acidic environments, SUS 316L for high-purity applications.
- Transparent PMMA/PVC: Monitor phase separation visually.
- Modular Assembly: Swap components in minutes for multi-process testing.
Key Functions
- Anti-Bubbling Design: Stable mixing even at 1500 RPM.
- One-Step Filling/Emptying: Save 50% operation time.
- Scalable Stages: Expand from 3 to 10 stages without downtime.

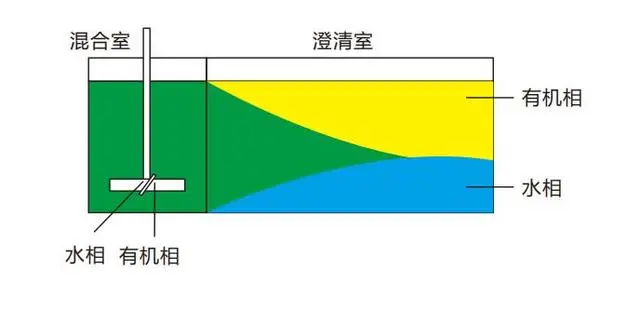

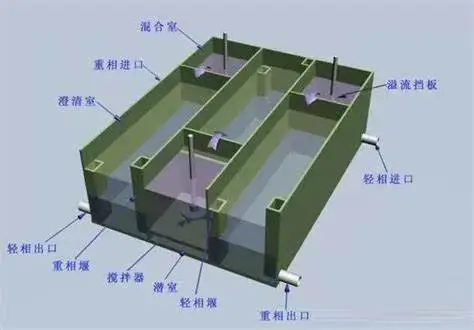

How It Works？
- Mixing Phase: Agitators blend solvents and feed material to transfer target ions.
- Settling Phase: Gravity separates immiscible phases in clarified chambers.
- Automated Control: Adjust interface heights via touchscreen or PLC integration.
Applications
- Rare Earth & Battery Recycling: Lithium, cobalt, nickel recovery.
- Pharma/Biotech: Antibiotic extraction, plant active compounds.
- Environmental: Heavy metal removal, VOC recovery.
- Food: Essential oil concentration, juice clarification.

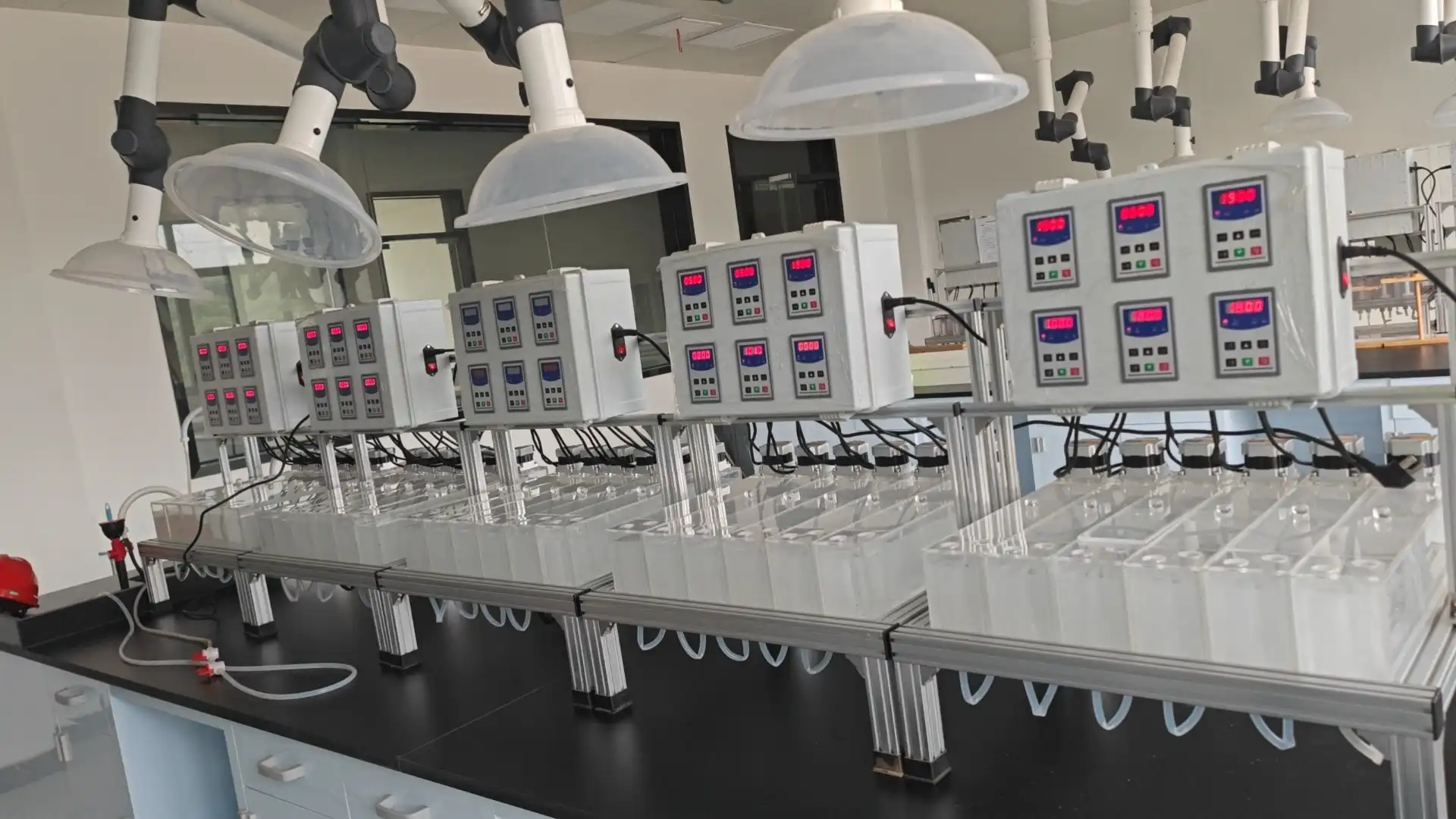

Physical Display
Whether you're visiting our factory or browsing our photo library, you'll get a clear view of how our equipment operates in real environments.
User Guide
- Setup: Mount the device on a stable bench, connect power (220V/50Hz).
- Calibration: Input solvent ratios via the control panel.
- Operation: Start agitation (500-1200 RPM recommended).
- Maintenance: Rinse tanks after each batch; inspect seals monthly.
Packaging & Transportation
Crush-proof foam packaging + wooden cases for international shipping.
After-Sales Service
We understand the importance of uninterrupted operations for your business. That's why we offer round - the - clock 24/7 technical support. Our team of highly trained technicians is always on standby, ready to assist you via phone, email, or live chat, regardless of the time zone you're in. Additionally, we provide a generous 2 - year warranty on our extraction device. This warranty covers any manufacturing defects, giving you peace of mind.
Certifications
Our company is proud to be ISO 9001, CE, and REACH compliant. ISO 9001 certification showcases our commitment to maintaining a high - quality management system. Every step of our production process, from sourcing raw materials to delivering the final product, adheres to strict quality standards. The CE mark on our products indicates compliance with European health, safety, and environmental protection regulations, ensuring that our offerings are suitable for the EU market. REACH compliance underlines our dedication to protecting human health and the environment. We meticulously manage the substances in our products, minimizing risks associated with chemicals. These compliances not only reflect our integrity but also give our customers confidence in the reliability and safety of our goods and services.
FAQs
Q: Can I customize the tank shape for viscous materials?
A: Yes! We design oval or conical tanks to optimize flow dynamics.
Q: What's the lead time for a 3L model?
A: 2-3 weeks for standard configurations.
Q: Is the device compatible with CIP systems?
A: Absolutely—ask about our steam-sterilizable PTFE models.
Q: Do you provide phase separation efficiency reports?
A: Yes, each unit includes a lab test certificate.
Q: Can I upgrade to industrial-scale later?
A: Our modular design allows seamless scaling.
