Extraction Lab Equipment

Product name: lab scale mixer settler
Configuration：desktop base edition, mobile standard edition, environmentally friendly high edition
Mixing volumn: 200ml, 300ml, 500ml, 1L, 2L, 3L or customized
Plate thickness：5mm，6mm，8mm，10mm
Material: PP，PPH，PVC，transparent PVC，PMMA，PTFE，PEEK，SUS，Ti
Production process: welding，bonding，bending，injection molding，integral forming
Optional function: temperature control device, pH adjustment device, water-bath jacket device, anti-overflow tank device，watch window device
Advantages: high extraction rate，perfect separation effect；No leakage risk, easy operation，sturdy and beautiful shape；Adjustable mixer-settler stage amount, adjustable agitator speed, and adjustable phase interface height；Highly customizable
Application：rare earth extraction;nickel cobalt extraction;rubidium cesium extraction;salt lake brine extraction;nuclear extraction;isotope extraction;lithium battery recycling;vanadium battery recycling;copper electroplate recycling;biological wastewater recycling

Send Inquiry Download

Product Description

Shaanxi Cuiyan: Your Trusted Extraction Lab Equipment Manufacturer & Supplier

Shaanxi Cuiyan Technology Co., Ltd, established in 2012, is a leading manufacturer and supplier of extraction lab equipment, specializing in customizable, corrosion-resistant systems. With 37 experts and 9 patented innovations, our lab-scale mixer settlers deliver unmatched efficiency, modular scalability, and compliance with global industry standards.

product-1-1

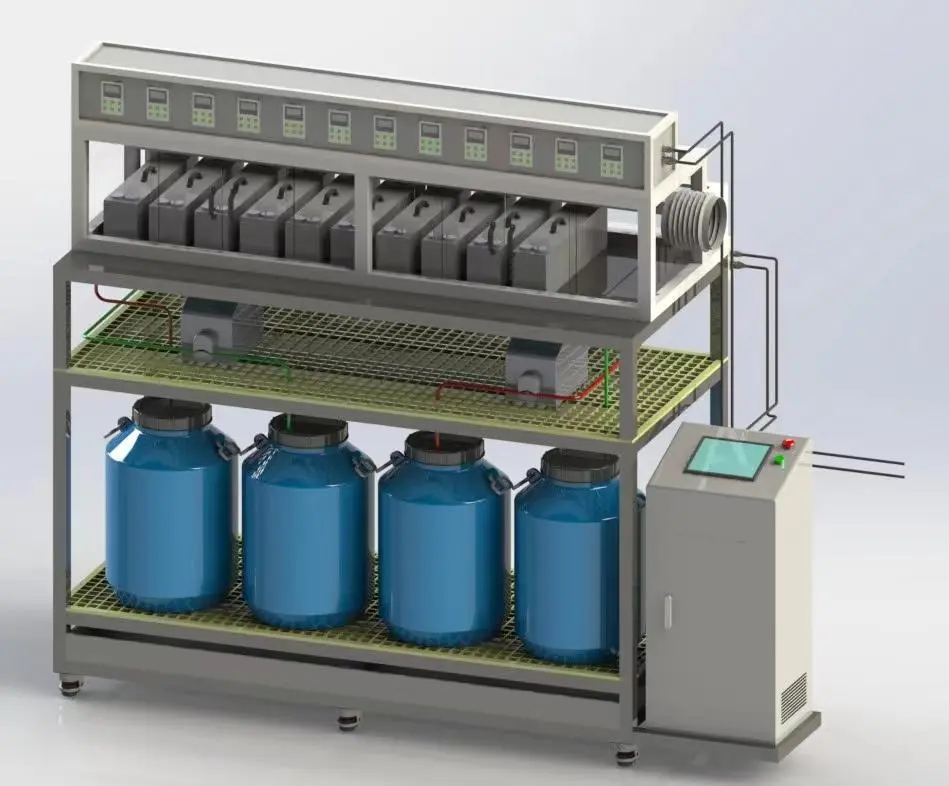

Extraction Lab Equipment Overview

Optimize your extraction processes with our versatile lab-scale mixer settler, designed for rare metals, battery recycling, and pharmaceutical R&D. Extraction lab equipment modular design supports seamless integration with automation, pH/temperature sensors, and anti-bubbling features.

product-1-1

Specifications

Category	Details
Configuration	Desktop Base, Mobile Standard, Environmentally Friendly High Edition
Mixing Volume	200mL–3L (Customizable)
Plate Thickness	5–10mm
Materials	PP, PPH, PVC, PMMA, PTFE, SUS, Ti
Optional Functions	Temperature Control, pH Adjustment, Anti-Overflow Tank, Watch Window

Why Choose Our product?

Tailored Precision
Adjust mixer speed, phase interface height, and tank size to match your workflow.
Zero-Leak Guarantee
Durable materials (e.g., PTFE, SUS316) withstand corrosive solvents.
Energy-Saving Design
Modular units reduce solvent waste and energy use by 20% versus traditional systems.
Rapid Deployment
Pre-assembled components enable setup in under 2 hours.

product-1-1

Material & Processing Excellence

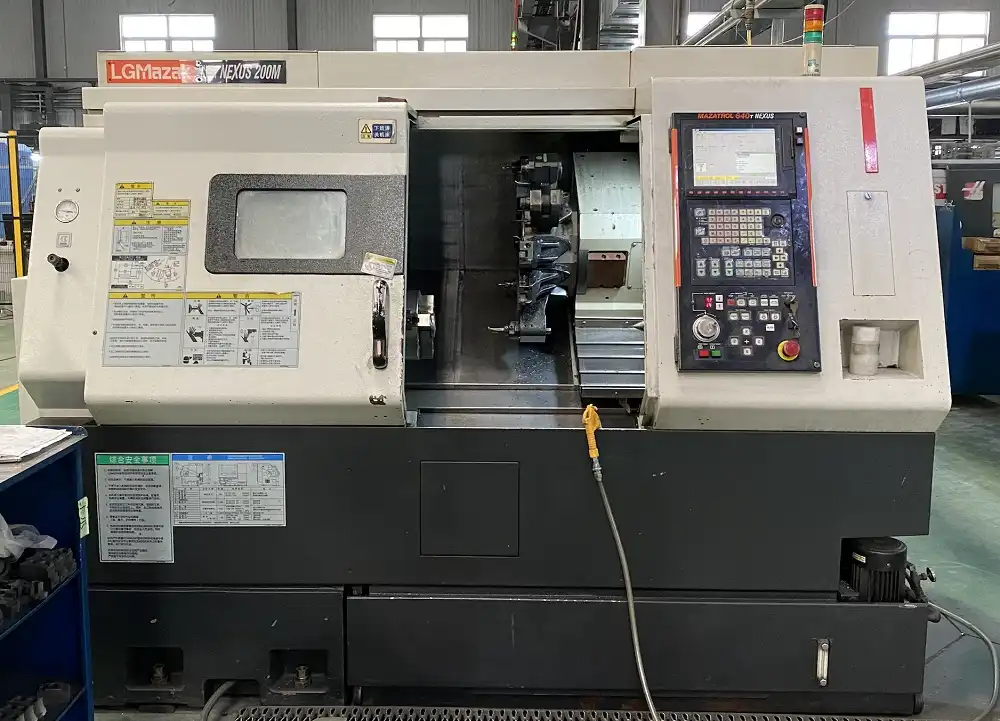

We prioritize chemical resistance by employing CNC - machined materials such as PP, PTFE, or titanium. PP offers good resistance to a wide range of chemicals, while PTFE is highly inert, making it suitable for the most corrosive substances. Titanium, known for its strength and corrosion - resistant properties, is ideal for extreme chemical environments. To guarantee leak - free operation, we utilize advanced manufacturing techniques like injection molding and integral forming. These methods create seamless joints, eliminating the risk of leaks that could compromise the integrity of our equipment. Moreover, our transparent PVC/PMMA tanks are a boon for users. They enable real - time monitoring of processes inside the tanks, allowing for easy observation and adjustment as needed.

product-1-1

How It Works?

Mixing Phase: Agitators blend solvents and feedstock at adjustable speeds.
Settling Phase: Baffle plates separate phases efficiently.
Automation: Sensors monitor pH, temperature, and liquid levels, feeding data to your control system.

product-1-1

Key Applications

Rare Earth & Battery Recycling: Lithium, cobalt, nickel recovery.
Pharmaceuticals: Active ingredient extraction with GMP compliance.
Environmental Testing: Soil/water contaminant analysis.

product-1-1

User Guide

Setup

The setup process of our Extraction lab equipment is straightforward yet crucial. First, carefully mount the unit in a stable location, ensuring it is firmly secured to prevent any unwanted movement during operation. Next, connect the various sensors. These sensors play a vital role in accurately monitoring different parameters relevant to the unit's function. Afterward, calibration is a breeze with the intuitive touchscreen interface. Navigate through the simple menu options on the touchscreen to input the necessary calibration values, guaranteeing the unit's optimal performance and accurate readings from the start.

Maintenance

Maintenance of the unit is designed to be hassle - free. For cleaning, use mild solvents. These solvents effectively remove any accumulated residues without causing damage to the unit's delicate components. It's essential to perform this cleaning regularly to keep the unit operating smoothly. Additionally, make it a monthly routine to inspect the seals. Check for any signs of wear, cracks, or leaks in the seals. Timely detection of seal issues can prevent potential malfunctions and ensure the unit continues to function at its best over an extended period.

product-1-1

Quality Control

Each unit undergoes 12+ performance tests.

product-1-1

Packaging

Shock-proof crates with humidity control.

product-1-1

After-Sales

24/7 multilingual support.

FAQ

Q:Can I customize mixing volumes beyond 3L?
A:Yes! We offer tailored solutions up to 20L.

Q:What's the lead time?
A:15–30 days for standard models; 45 days for customized orders.

Q:Are your materials FDA-approved?
A:PP, PTFE, and SUS316 meet FDA/ISO 22000 standards.

Q:Do you provide onsite training?
A:Free virtual training included; onsite support available.

Q:Can I expand the system later?
A:Modular designs allow easy capacity upgrades.

Contact Us

From Fortune 500 labs to startups, our extraction lab equipment ensures reliable performance. All units include a 3-year warranty and CE/ISO certifications.Request a Quote Today!
