Liquid Liquid Extraction Of Rubidium Cesium
Configuration：desktop base edition, mobile standard edition, environmentally friendly high edition
Mixing volumn: 200ml, 300ml, 500ml, 1L, 2L, 3L or customized
Plate thickness：5mm，6mm，8mm，10mm
Material: PP，PPH，PVC，transparent PVC，PMMA，PTFE，PEEK，SUS，Ti
Production process: welding，bonding，bending，injection molding，integral forming
Optional function: temperature control device, pH adjustment device, water-bath jacket device, anti-overflow tank device，watch window device
Advantages: high extraction rate，perfect separation effect；No leakage risk, easy operation，sturdy and beautiful shape；Adjustable mixer-settler stage amount, adjustable agitator speed, and adjustable phase interface height；Highly customizable
Application：rare earth extraction;nickel cobalt extraction;rubidium cesium extraction;salt lake brine extraction;nuclear extraction;isotope extraction;lithium battery recycling;vanadium battery recycling;copper electroplate recycling;biological wastewater recycling
- Product Description
Shaanxi Cuiyan: Your Trusted Liquid Liquid Extraction Of Rubidium Cesium Manufacturer & Supplier
As a leading Liquid Liquid Extraction Of Rubidium Cesium manufacturer since 2012, Shaanxi Cuiyan Technology Co., Ltd combines cutting-edge automation, modular design, and 9+ patented innovations to deliver lab-scale solutions trusted by 300+ global clients. Our mixer settlers ensure high corrosion resistance, customizable configurations, and energy-efficient operations for rare metal extraction.Optimized for precision separation of rubidium and cesium from complex resources like lithium brine or nuclear waste, our lab-scale mixer settlers are engineered for scalability, safety, and adaptability.
Liquid Liquid Extraction Of Rubidium Cesium Specifications
| Specifications | Details |
|---|---|
| Configuration | Desktop Base, Mobile Standard, Eco-Friendly High Edition |
| Mixing Volume | 200mL to 3L (Customizable) |
| Plate Thickness | 5mm to 10mm |
| Material Options | PP, PPH, PVC, Transparent PVC, PMMA, PTFE, SUS, Ti |
| Production Process | Welding, Bonding, Injection Molding, Integral Forming |
| Optional Features | pH/Temperature Control, Anti-Overflow Tank, Water-Bath Jacket, Watch Window |
Why Choose Our Liquid-Liquid Extraction Equipment?
- High Selectivity: Achieve ≥99.9% purity with optimized phase separation for rubidium/cesium.
- Modular & Scalable: Adapt from lab trials to industrial production seamlessly.
- Automation Ready: Integrate sensors (pH, temperature) for real-time monitoring.
- Energy-Saving Design: Reduce solvent use and operating costs by 30%.
- Bubble-Free Operation: Patented tank design prevents emulsification.
Material & Processing Excellence
- Corrosion Resistance: SUS316L and PTFE options for acidic/alkaline environments.
- Transparency: Monitor extraction stages via PMMA or PVC windows.
- Durability: Precision welding and integral forming ensure leak-free performance.

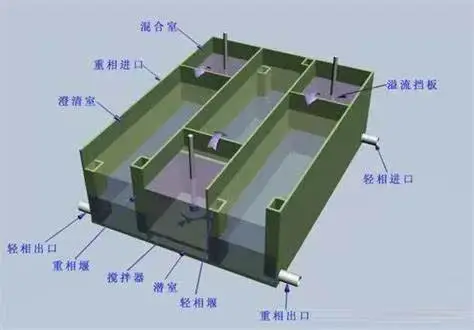

How It Works？
- Mixing Stage: Agitators disperse rubidium/cesium-rich aqueous phases into organic solvents.
- Settling Zone: Gravity separates phases based on density, with adjustable weirs for interface control.
- Collection: High-purity metals are recovered via continuous flow or batch modes.
Key Applications
- Rare Earth & Salt Lake Brine: Extract Rb/Cs from lithium-rich deposits.
- Nuclear Waste Recycling: Isolate cesium-137 safely.
- Battery Recycling: Recover Rb/Cs from lithium-ion or vanadium battery waste.
- High-Purity Metals: For atomic clocks, photovoltaics, and medical isotopes.

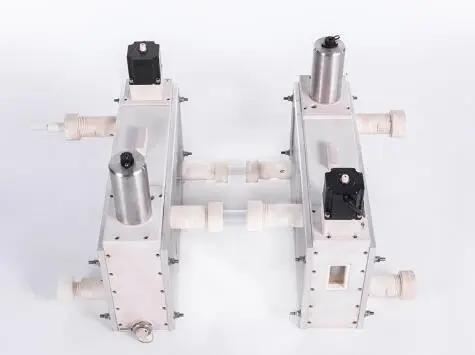

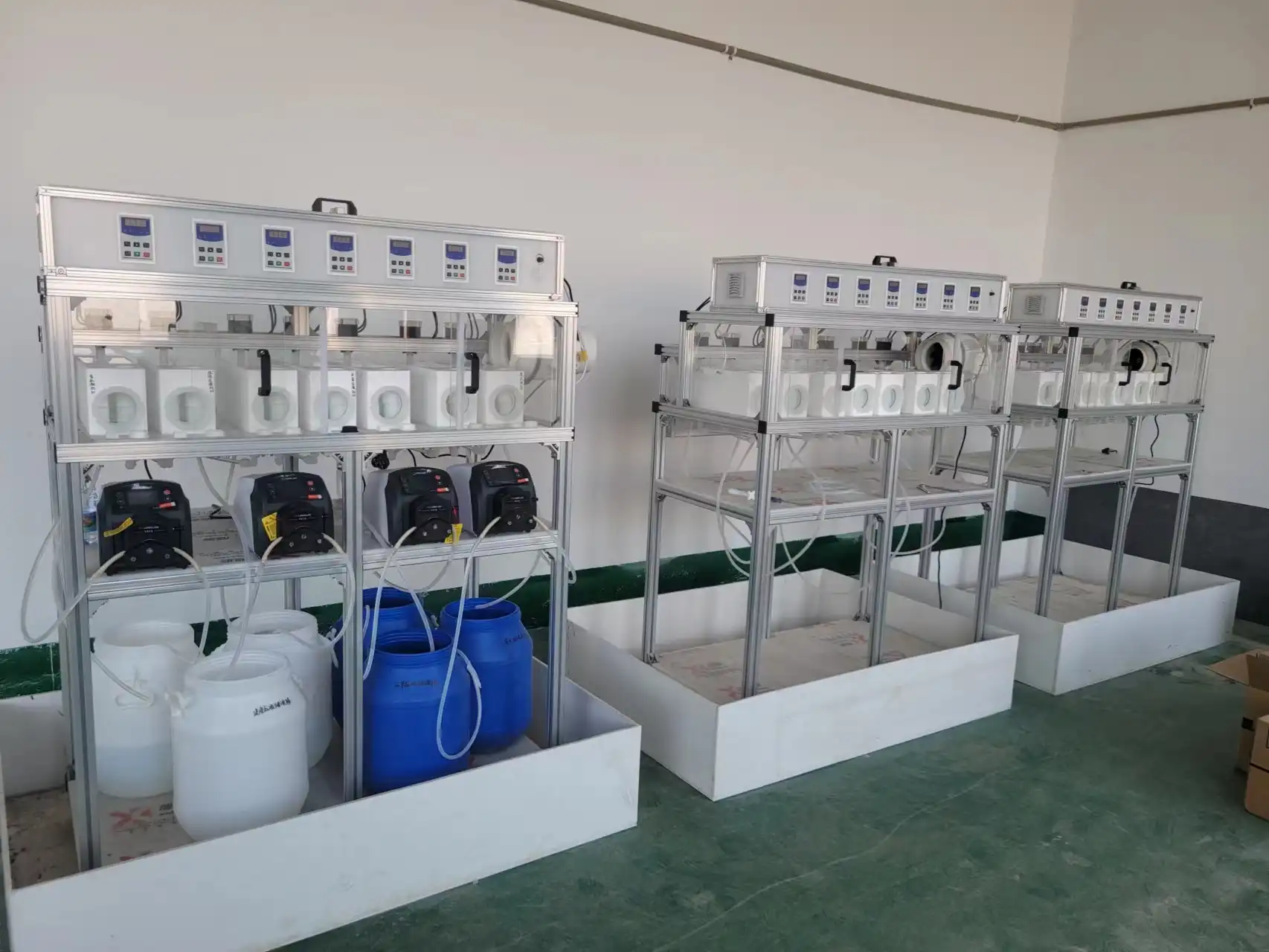

Physical Display
Our high-efficiency Liquid Liquid Extraction Of Rubidium Cesium is on display. You can browse clear images to see how they perform.
User Guide
- Setup
Begin the setup by carefully installing the agitator, ensuring it is properly aligned and securely fastened to the mixing vessel. This step is crucial as an incorrectly installed agitator can lead to inefficient mixing or equipment damage. Next, connect the feed lines, making certain that all connections are tight to prevent leaks. Use appropriate fittings and follow the provided diagrams. Afterward, calibrate the sensors. These sensors, which may monitor temperature, pressure, or liquid levels, need to be calibrated using standard reference materials to guarantee accurate readings and reliable operation. - Operation
During operation, adjust the mixer speed according to the nature of the substances being processed. For less viscous materials, a lower speed within the 50 - 100 RPM range may be sufficient for gentle blending. However, for more viscous fluids or when enhanced mixing is required, increase the speed up to 500 RPM. Simultaneously, fine - tune the phase interface height. This is essential in processes involving immiscible liquids, as it affects the separation efficiency. Regularly monitor and adjust these parameters to optimize the performance of the mixing and separation operations. - Maintenance
Maintenance is key to the longevity of the equipment. Clean the unit regularly using non - abrasive solvents. These solvents are effective in removing residue from previous processes without scratching or damaging the equipment's surfaces. After cleaning, thoroughly rinse to ensure no solvent remains. Additionally, conduct a monthly inspection of the seals. Check for signs of wear, such as cracks or leaks. If any issues are detected, promptly replace the seals to maintain the integrity of the system and prevent any potential loss of materials or operational disruptions.
One-Sentence Summaries
- Packaging: Shock-proof crates with climate control for international shipping.
- After-Sales: 2-year warranty + 24/7 technical support.
- Certifications: ISO9001, CE, and REACH compliance.
FAQ
Q1: Can this equipment handle high-salinity brines?
A: Yes! Our SUS316L and titanium models resist corrosion in salt-heavy environments.
Q2: Is customization available for specific solvents?
A: Absolutely. We tailor materials and tank designs to your solvent's chemical properties.
Q3: What's the lead time for a 500mL custom unit?
A: Typically 4-6 weeks, including testing and documentation.
Q4: How do you ensure extraction efficiency?
A: We pre-test your sample in our lab and optimize mixer-settler parameters.
Q5: Can I upgrade to automated controls later?
A: Yes! Our modular design allows easy integration of PLC systems.
Contact Us
Contact our experts at wangzhijun@cuiyan-tec.com to discuss your Liquid Liquid Extraction Of Rubidium Cesium project. Let's turn complex resources into high-purity solutions!
