Liquid Liquid Extraction Device

Shaanxi Cuiyan: Your Trusted Liquid Liquid Extraction Device Manufacturer & Supplier

As a leading liquid liquid extraction device manufacturer & supplier, Shaanxi Cuiyan Technology Co., Ltd combines 12+ years of expertise with cutting-edge innovation. Our lab-scale mixer settlers are engineered for precision, durability, and adaptability, backed by 9 unique advantages: automated control integration, energy-saving modular designs, corrosion-resistant materials, and full customization to meet your exact needs.Our lab-scale product is designed for seamless separation and extraction processes in research and pilot projects. With flexible configurations and advanced functionality, it's ideal for industries requiring high efficiency and scalability.

Liquid Liquid Extraction Device Specifications

Why Choose Our product?

1. Precision & Efficiency: Achieve high extraction rates and perfect separation with adjustable agitator speeds and phase interfaces.
2. Durability: Built with high corrosion-resistant materials (e.g., PTFE, SUS316L) for long-term use in harsh chemical environments.
3. Smart Customization: Add integrated sensors (temperature, pH, liquid level) or tailor mixing volumes to match your workflow.
4. Energy-Saving Design: Modular structures reduce operational costs while supporting rapid installation or expansion.
5. Compliance Ready: Meets international standards for pharmaceuticals, chemicals, and environmental safety.

Material & Processing Method

• Materials: Choose from 9 options, including chemically inert PTFE for acidic environments or transparent PVC for real-time monitoring.
• Production: Advanced techniques like injection molding ensure leak-proof joints, while modular designs simplify maintenance.

How It Works

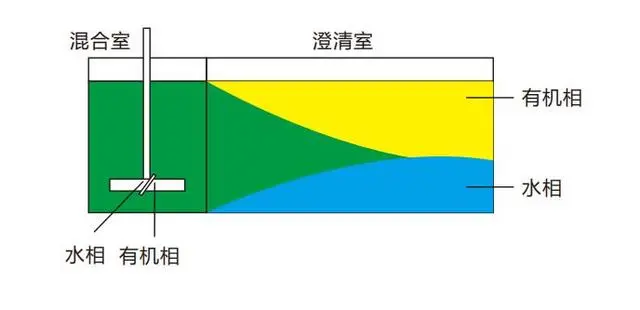

The liquid liquid extraction device uses a mixer-settler mechanism:

1. Mixing Phase: Two immiscible liquids are agitated to transfer target compounds.
2. Settling Phase: The mixture flows into a clarification tank, where phases separate naturally.
3. Adjustable Controls: Fine-tune parameters like agitation speed or interface height for optimal results.

Applications

Perfect for:

• Rare Earth & Battery Recycling: Extract lithium, cobalt, or vanadium from industrial waste.
• Pharmaceuticals: Purify antibiotics or vaccines with FDA-compliant designs.
• Environmental Protection: Remove heavy metals from wastewater.
• Nuclear & Chemical Industries: Safely process radioactive or corrosive substances.

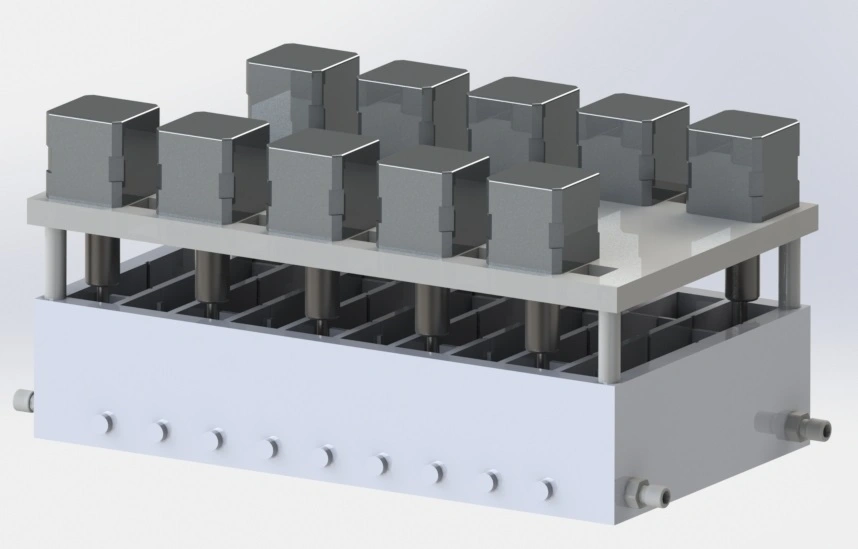

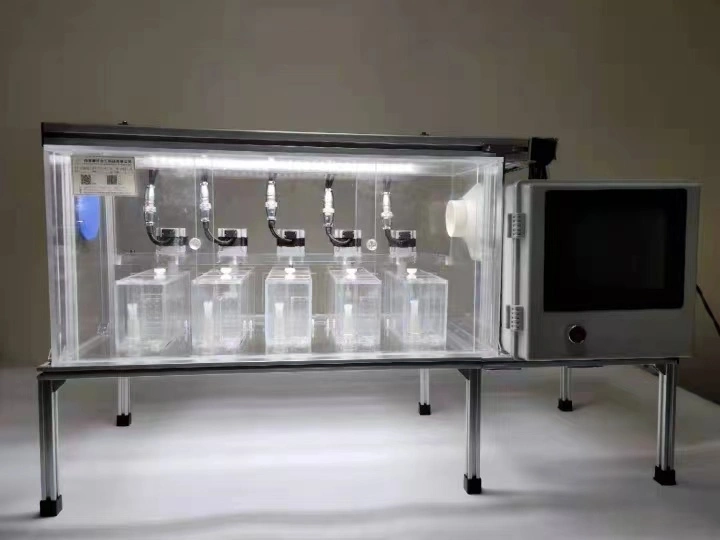

Physical Display

We showcase advanced equipment, and you can view close-up pictures to get a better sense of their performance.

User Guide

1. Setup
   In the setup phase, carefully unpack each module and assemble them in accordance with the detailed instruction manual. Ensure that all connections are secure to prevent any leaks or malfunctions during operation. Once the basic assembly is complete, if you've opted for additional functionality, connect the optional sensors. These sensors, which could measure parameters like temperature, pressure, or conductivity, enhance the system's monitoring capabilities. Double - check all connections to guarantee a seamless setup before moving on to calibration.
2. Calibration
   Calibration is a crucial step for optimal performance. Navigate to the control panel, which is designed to be user - friendly. Here, you can precisely adjust the agitator speed. Consider the viscosity of the solutions you'll be processing; a lower speed might be suitable for delicate mixtures, while a higher speed is required for more viscous substances. Simultaneously, fine - tune the phase height. This adjustment determines the interface between different liquid phases, ensuring efficient separation. Regular calibration ensures the equipment operates at peak efficiency.
3. Operation
   Once setup and calibration are complete, it's time to start the operation. Slowly load the appropriate solutions into the designated chambers, taking care not to overfill. Then, initiate the cycle through the control panel. As the process begins, closely monitor the separation in real - time. You can use the built - in sight windows or connected monitoring software to observe how the different phases separate. This real - time monitoring allows you to make immediate adjustments if the separation process isn't proceeding as expected, ensuring a successful outcome.

Packaging & Transportation

Crush-proof packaging with foam inserts ensures safe global delivery.

After-Sales Service

24/7 technical support, on-site training, and a 3-year warranty.

Qualification Certification

ISO 9001, CE, and REACH-certified for quality and environmental compliance.

FAQ

Q: Can I customize the mixing volume beyond 3L?
A: Absolutely! We offer bespoke designs for unique project requirements.

Q: Do your devices comply with FDA standards?
A: Yes, our pharmaceutical-grade models meet FDA and cGMP guidelines.

Q: What's the lead time for orders?
A: Standard units ship in 2–4 weeks; custom designs require 6–8 weeks.

Q: How do you ensure leak-proof performance?
A: Precision welding and materials like PEEK or SUS316L eliminate leakage risks.

Q: Can the device scale for industrial use?
A: Yes! Our modular design allows easy expansion for large-scale production.

Contact Us

Ready to optimize your extraction process? Email wangzhijun@cuiyan-tec.com for a quote or consultation of liquid liquid extraction device!
