Counter Current Liquid Liquid Extraction
Configuration：desktop base edition, mobile standard edition, environmentally friendly high edition
Mixing volumn: 200ml, 300ml, 500ml, 1L, 2L, 3L or customized
Plate thickness：5mm，6mm，8mm，10mm
Material: PP，PPH，PVC，transparent PVC，PMMA，PTFE，PEEK，SUS，Ti
Production process: welding，bonding，bending，injection molding，integral forming
Optional function: temperature control device, pH adjustment device, water-bath jacket device, anti-overflow tank device，watch window device
Advantages: high extraction rate，perfect separation effect；No leakage risk, easy operation，sturdy and beautiful shape；Adjustable mixer-settler stage amount, adjustable agitator speed, and adjustable phase interface height；Highly customizable
Application：rare earth extraction;nickel cobalt extraction;rubidium cesium extraction;salt lake brine extraction;nuclear extraction;isotope extraction;lithium battery recycling;vanadium battery recycling;copper electroplate recycling;biological wastewater recycling
- Product Description
Shaanxi Cuiyan: Your Trusted Counter Current Liquid Liquid Extraction Manufacturer & Supplier
Shaanxi Cuiyan Technology Co., Ltd., established in 2012, is a trusted manufacturer and supplier of counter current liquid liquid extraction systems. With 37+ experts, 9 patented advantages, and 10,000+ equipment stages delivered globally, we specialize in lab-to-industrial solutions that prioritize efficiency, modularity, and compliance.
Counter Current Liquid Liquid Extraction Description
Our counter current liquid liquid extraction systems enable precise separation of compounds through optimized phase contact. Ideal for rare metals, pharmaceuticals, and lithium battery recycling, the lab-scale models offer scalability, corrosion resistance, and smart customization.
Specifications
| Specifications | Details |
|---|---|
| Configuration | Desktop Base Edition, Mobile Standard Edition, Eco-Friendly High Edition |
| Mixing Volume | 200ml–3L (Customizable) |
| Material Options | PP, PPH, PVC, PMMA, PTFE, SUS, Ti |
| Plate Thickness | 5mm–10mm |
| Production Process | Welding, Bonding, Integral Forming, Injection Molding |
| Optional Functions | Temperature Control, pH Sensors, Anti-Overflow Design, Watch Window |
Why Choose Our product Equipment?
- 95% Extraction Efficiency: Patented anti-bubbling design ensures stable phase separation.
- Modular & Scalable: Add/remove stages in hours for flexible R&D or small-batch production.
- Corrosion-Resistant: SUS316 and PTFE materials handle acidic/alkaline solvents.
- Smart Integration: pH, temperature, and liquid-level sensors automate control.
- Global Compliance: Meets ISO 9001, CE, and industrial safety standards.
Material & Processing Methods
- Materials: PP (lightweight), PVC (chemical resistance), PTFE (high-purity), Titanium (extreme durability).

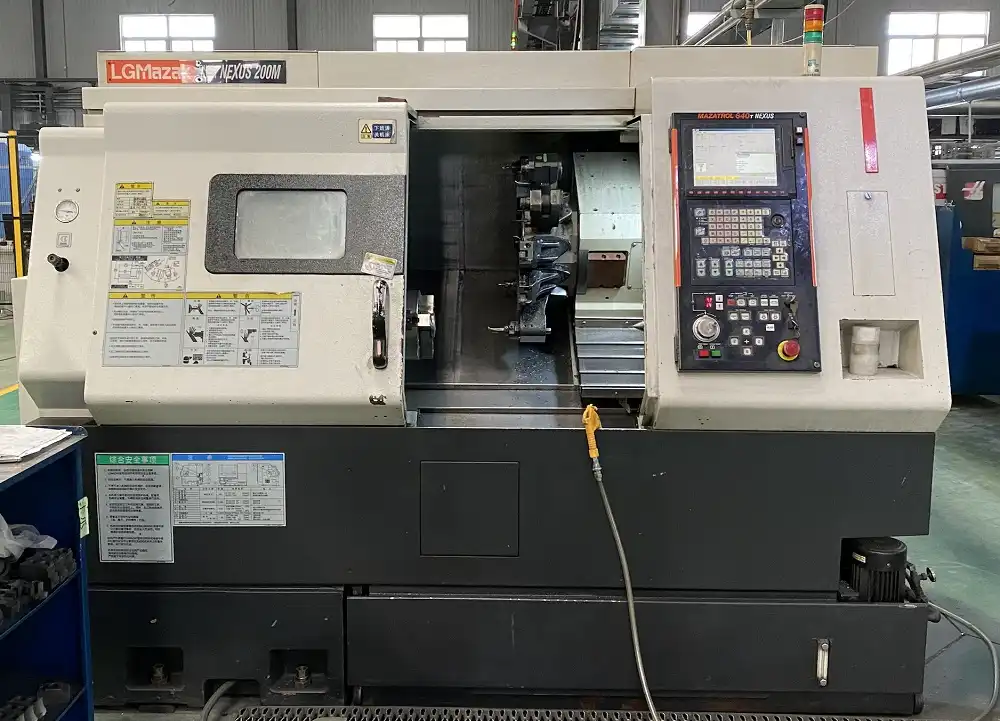

- Fabrication: CNC machining ensures leak-proof joints; laser cutting guarantees precision.
Product Functions
- One-Step Tank Filling/Emptying: Reduces manual intervention.
- Adjustable Agitator Speed: 100–2000 RPM for optimal mixing.
- Interchangeable Modules: Swap mixing/clarification tanks for multi-process compatibility.
Working Principle

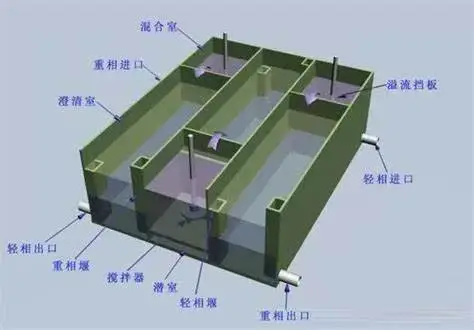

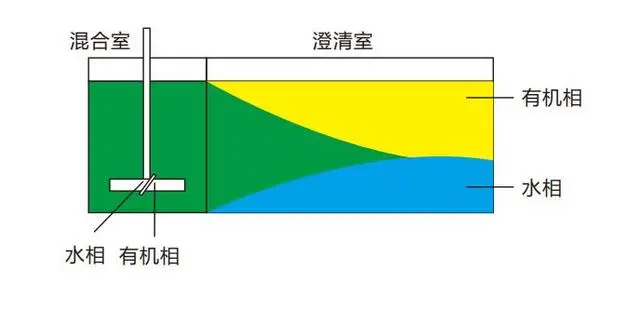

In counter current liquid liquid extraction, two immiscible liquids flow in opposite directions through interconnected mixer-settler stages. This maximizes mass transfer, ensuring higher purity yields compared to batch methods.

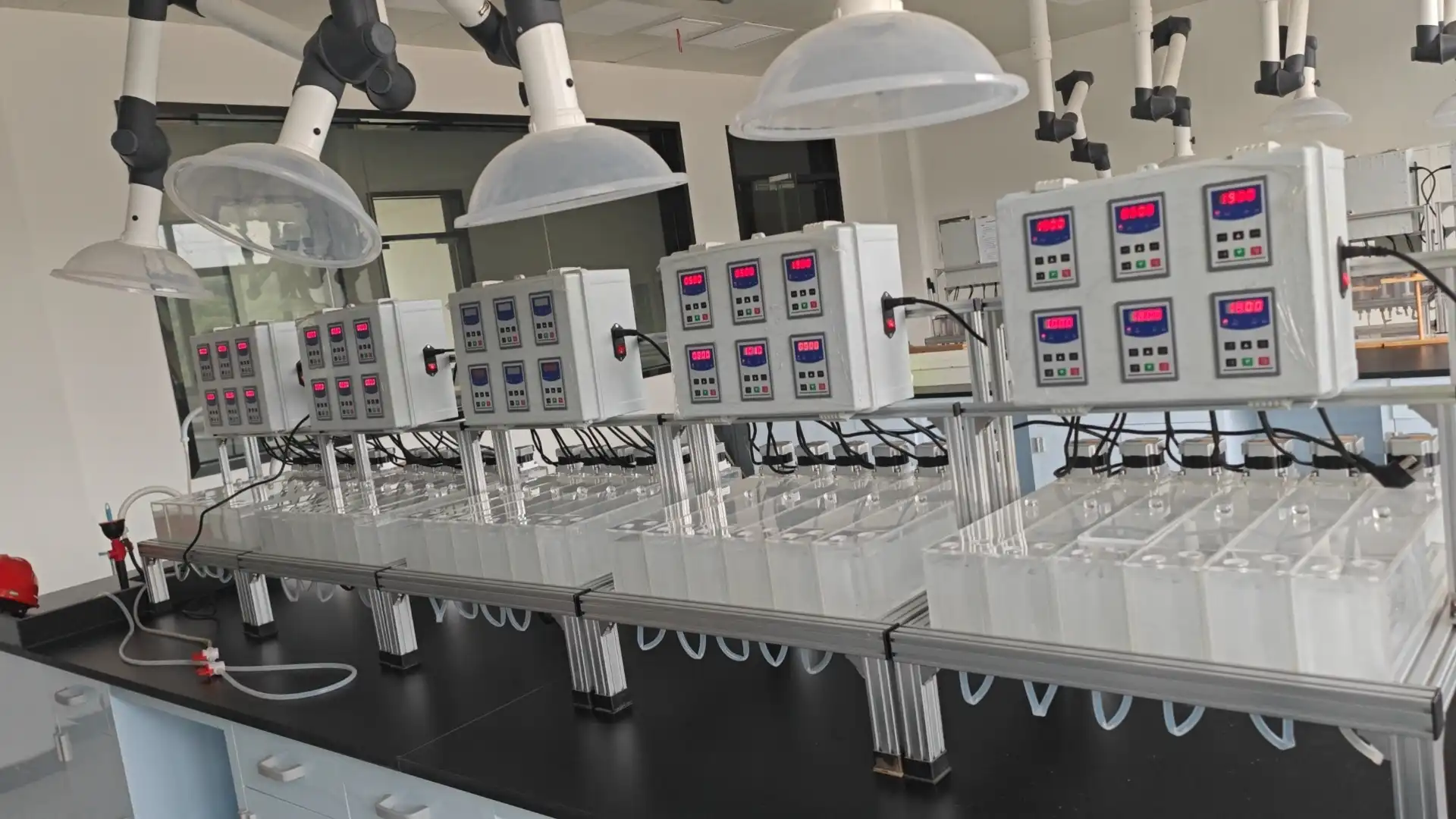

Physical Display
We present a variety of high-performance equipment designed to suit different needs. You can visit our factory for a live demo or browse our photos to see how our products work.
User Guide Tips
- Calibrate pH/temperature sensors before startup.
- Start agitation at 50% speed, then adjust based on phase clarity.
- Clean with deionized water post-use to prevent residue buildup.
Application Areas
- Rare Earth Extraction: Separate neodymium, dysprosium.
- Battery Recycling: Recover lithium, cobalt from spent batteries.
- Pharmaceuticals: Purify APIs or isolate natural compounds.
- Wastewater Treatment: Extract heavy metals (Cu, Ni) from effluents.
Packaging & Transportation
During shipping, the equipment's safety is our top priority. We utilize crush - proof foam, which acts as a shock - absorbing cushion, protecting against any jolts or impacts. This foam is carefully wrapped around the equipment. Additionally, sturdy wooden cases are used. These cases not only shield the equipment from external forces but also prevent moisture and dust ingress, ensuring it arrives in perfect condition.
After-Sales Service
We offer a comprehensive after - sales package. With a 12 - month warranty, you're covered against manufacturing defects. Our 24/7 technical support team is always on standby, ready to assist via phone or email. Plus, we provide on - demand spare parts. Quick dispatch ensures minimal downtime, keeping your operations running smoothly.
Qualification Certification
Our products are ISO 9001, CE, and RoHS certified, underscoring our unwavering commitment to quality, safety, and environmental responsibility. ISO 9001 validates our top - notch quality management. CE compliance ensures they meet EU health and safety norms. RoHS certification shows we restrict hazardous substances, giving you reliable and eco - friendly solutions.
FAQ
Q1: Can I customize the mixing volume beyond 3L?
Yes—we design systems up to 50L for pilot-scale projects.
Q2: How does your equipment prevent solvent leakage?
Double-layered seals and pressure-testing ensure zero leaks.
Q3: What's the lead time for a custom order?
4–6 weeks, depending on material availability.
Q4: Do you provide process optimization support?
Yes—our engineers offer free consultation for your extraction workflow.
Q5: Is the equipment compatible with automated PLC systems?
Absolutely—integration via Modbus or analog signals.
Contact Us
Elevate your separation processes with Xi'an Plansee's counter current liquid liquid extraction systems. Email wangzhijun@cuiyan-tec.com for quotes or technical inquiries.
