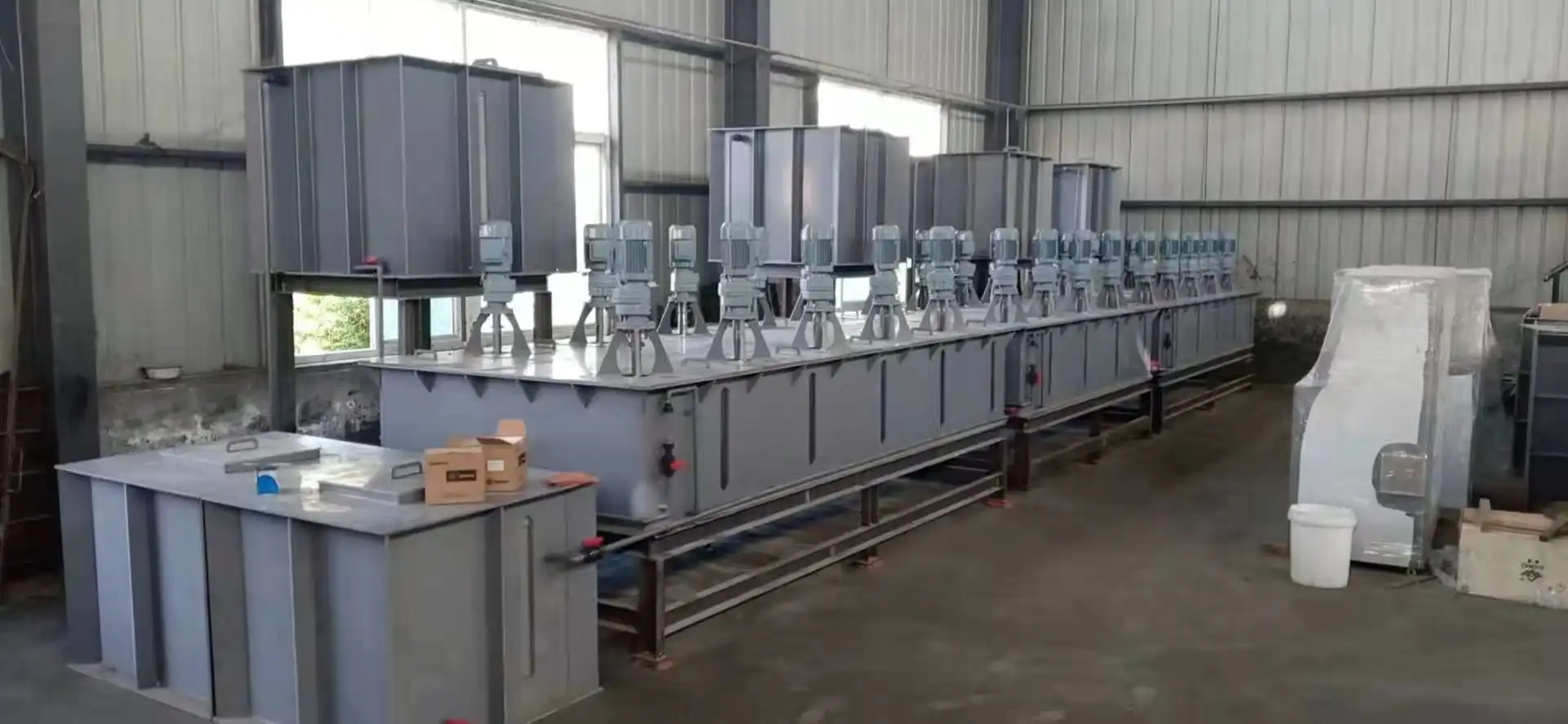

Understanding Pilot Scale Mixer Settler Technology

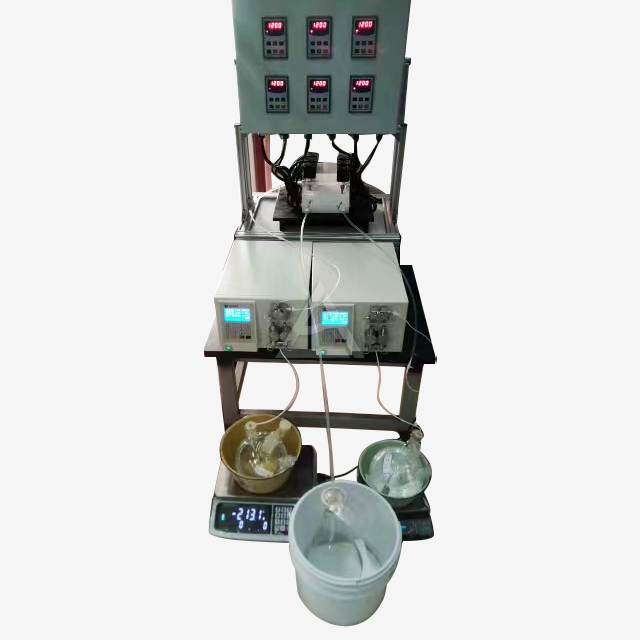

Principles of Operation
Pilot scale mixer settlers operate on the fundamental principle of liquid-liquid extraction. The process involves two main stages: mixing and settling. In the mixing stage, two immiscible liquids are vigorously agitated to promote mass transfer of target compounds between phases. This is followed by the settling stage, where the mixed phases separate based on density differences.
The key to efficient separation lies in the design of the mixer settler units. Adjustable impellers in the mixing chamber ensure optimal contact between phases, while carefully engineered settling chambers promote rapid and complete phase separation. By controlling factors such as agitation speed, residence time, and phase ratios, operators can achieve high extraction rates and excellent separation quality.

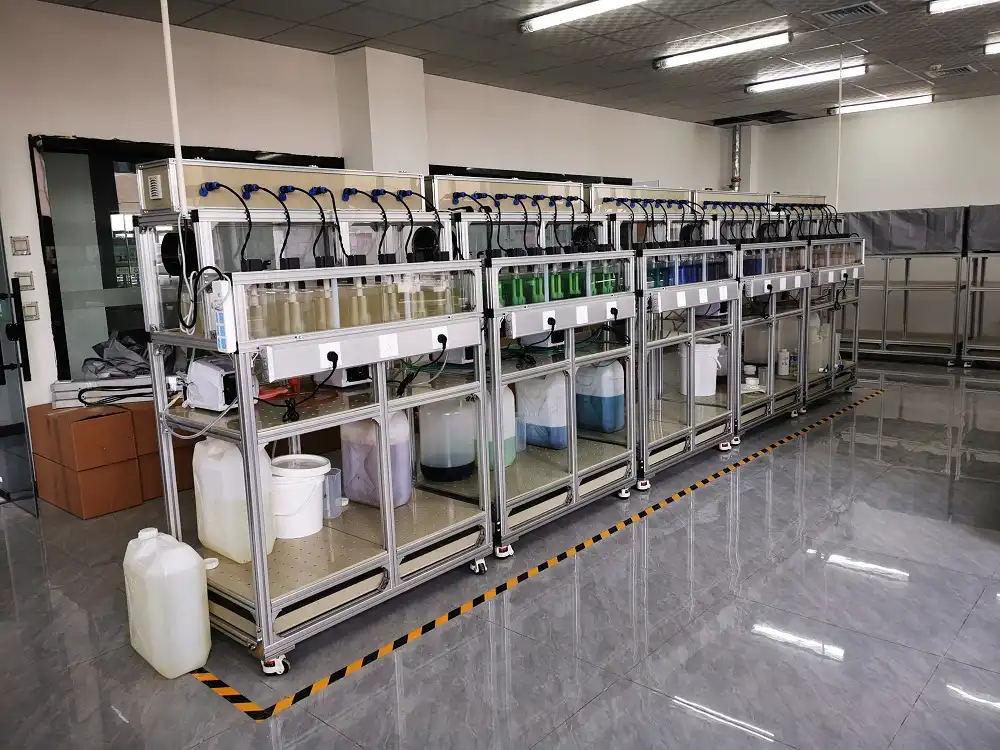

Key Components and Design Features
Modern pilot scale mixer settlers boast several critical components that enhance their performance and versatility:
- Modular construction for easy scaling and maintenance
- Corrosion-resistant materials like PP, PPH, or PMMA to handle aggressive chemicals
- Integrated sensors for monitoring pH, temperature, and liquid levels
- Adjustable weirs for precise control of phase interface height
- Optional temperature control and pH adjustment devices
These features combine to create a highly adaptable system capable of handling a wide range of extraction processes. The modular design allows for quick modifications to the number of stages or overall capacity, making it easy to optimize the setup for different applications or scale-up requirements.
Advantages Over Traditional Methods
Compared to conventional batch extraction methods, pilot scale mixer settlers offer several distinct advantages:
- Continuous operation for increased throughput
- Better control over process parameters
- Reduced solvent consumption and waste generation
- Improved mass transfer efficiency due to optimal mixing
- Easy scale-up to industrial production levels
These benefits make pilot scale mixer settlers an invaluable tool for process development and optimization across various industries. By providing a realistic simulation of industrial-scale operations, they enable engineers to make informed decisions about process design and equipment selection before committing to full-scale implementation.
Applications Across Industries

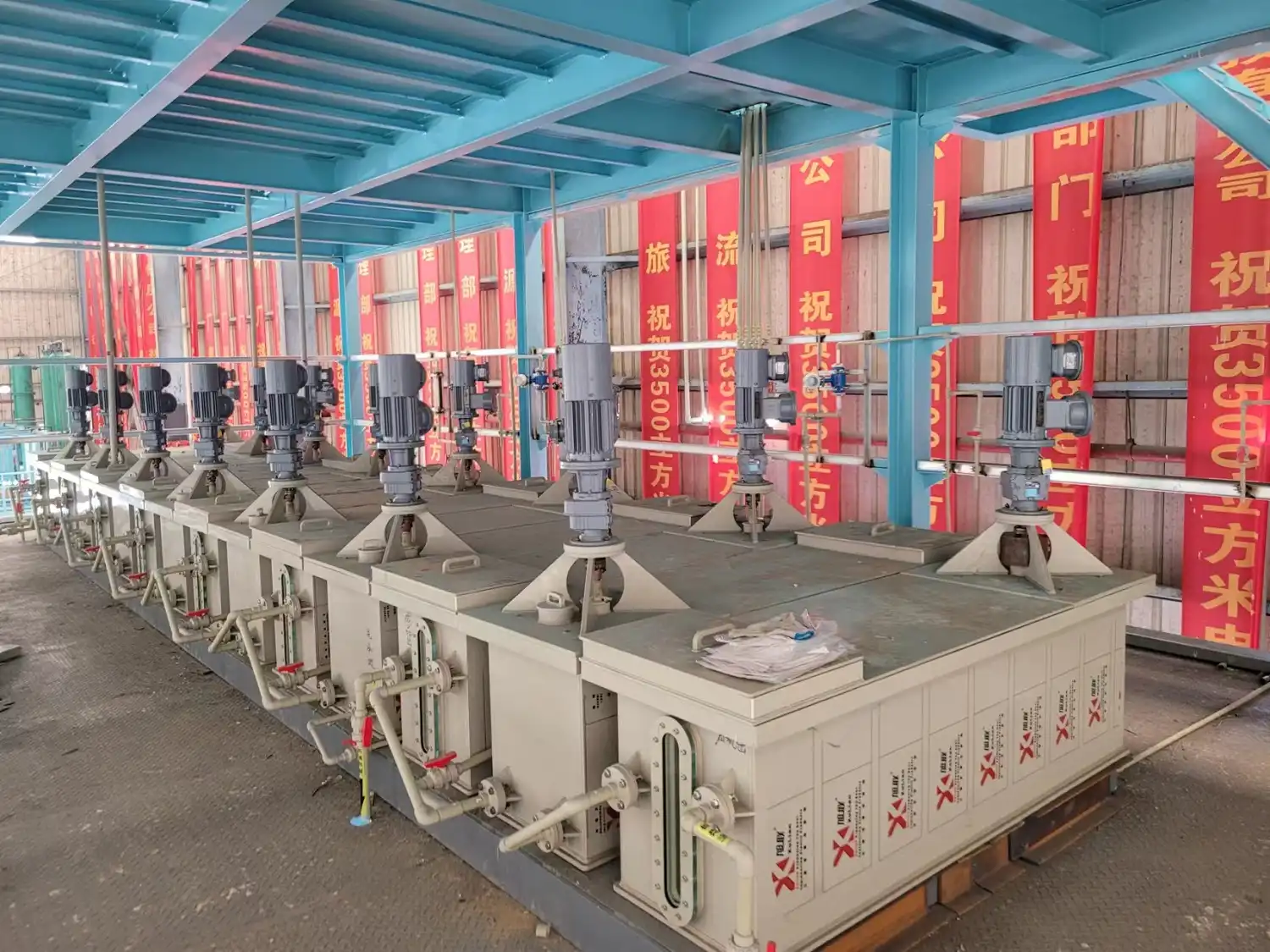

Metallurgical Extraction Processes
In the metallurgical industry, pilot scale mixer settlers play a crucial role in developing and optimizing extraction processes for valuable metals. Rare earth element extraction, for instance, often involves complex multi-stage separation of chemically similar elements. Mixer settlers allow engineers to fine-tune each stage of the process, maximizing recovery rates while minimizing reagent consumption.
Nickel and cobalt extraction from laterite ores is another area where these units prove invaluable. By simulating the solvent extraction process at a pilot scale, operators can determine the optimal number of stages, organic-to-aqueous ratios, and pH conditions for maximum metal recovery. This level of process optimization is difficult to achieve with traditional batch methods and can lead to significant improvements in overall plant efficiency.
Environmental Remediation and Resource Recovery

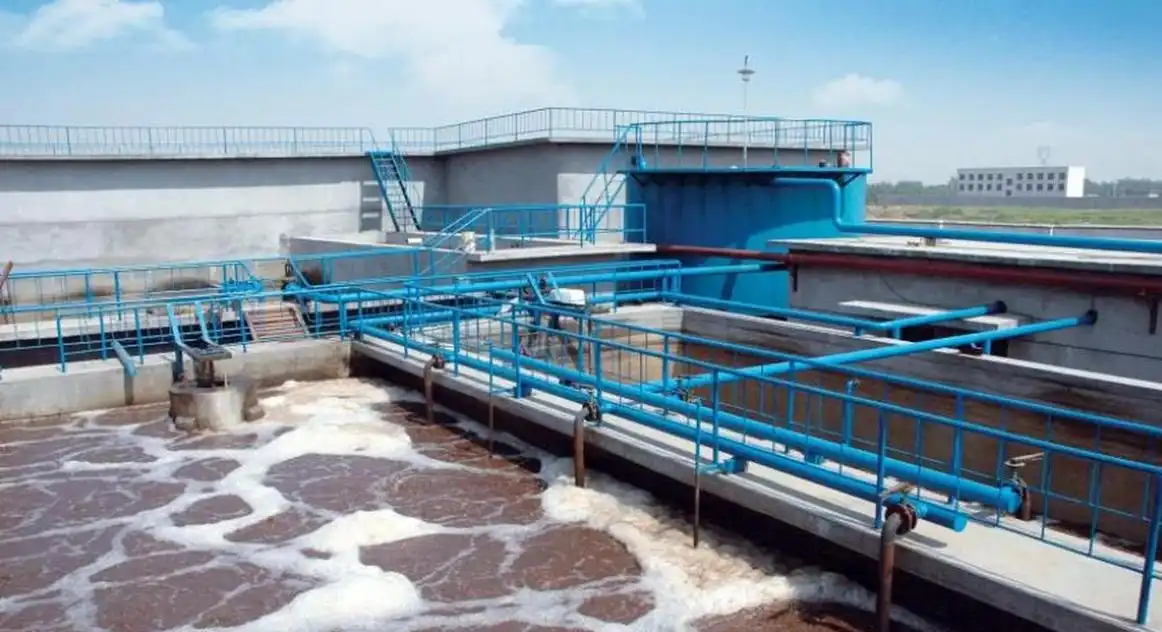

As environmental concerns grow, industries are increasingly focused on resource recovery and waste minimization. Pilot scale mixer settlers are at the forefront of developing new techniques for treating industrial wastewater and recovering valuable materials from waste streams.
One promising application is in the recycling of lithium-ion batteries. The mixer settler approach allows for selective extraction of lithium, cobalt, and other valuable metals from battery leachates. By optimizing the extraction process at the pilot scale, companies can develop economically viable methods for battery recycling, addressing both environmental concerns and resource scarcity issues.
Pharmaceutical and Biotechnology Applications
In the pharmaceutical industry, pilot scale mixer settlers are essential for developing efficient purification processes for active pharmaceutical ingredients (APIs). The ability to precisely control mixing and settling conditions allows for high-purity separations, critical in meeting stringent regulatory requirements.
Biotechnology companies also benefit from this technology in the purification of proteins and other biomolecules. The gentle mixing action of mixer settlers helps preserve the integrity of sensitive biological compounds while achieving high-efficiency separations. This makes them particularly useful in the production of therapeutic proteins and enzymes.
Optimizing Pilot Scale Mixer Settler Operations
Process Parameter Optimization
Achieving optimal performance from a pilot scale mixer settler requires careful tuning of various process parameters. Key factors to consider include:
- Mixer speed: Balancing sufficient mixing for mass transfer without excessive emulsification
- Phase ratio: Adjusting the relative volumes of aqueous and organic phases for optimal extraction
- Residence time: Controlling the time spent in mixing and settling stages
- Temperature: Managing reaction kinetics and phase separation behavior
- pH: Optimizing conditions for selective extraction or stripping
Engineers typically employ a systematic approach, using design of experiments (DOE) techniques to efficiently explore the parameter space and identify optimal operating conditions. This data-driven approach ensures that the pilot scale results can be reliably scaled up to industrial production.
Scaling Considerations
One of the primary advantages of pilot scale mixer settlers is their ability to provide reliable data for scale-up to industrial operations. However, successful scaling requires careful consideration of several factors:
- Geometric similarity: Maintaining proportional dimensions between pilot and full-scale units
- Hydrodynamic similarity: Ensuring comparable mixing and settling behavior
- Mass transfer scaling: Accounting for changes in interfacial area and mass transfer coefficients
- Materials of construction: Selecting appropriate materials for larger-scale corrosion resistance
By addressing these scaling considerations during the pilot stage, engineers can minimize the risks associated with full-scale implementation and ensure a smooth transition to industrial production.
Maintenance and Troubleshooting
Regular maintenance is crucial for ensuring consistent performance of pilot scale mixer settlers. Key maintenance tasks include:
- Cleaning and inspection of mixing and settling chambers
- Calibration of sensors and control systems
- Replacement of seals and gaskets to prevent leaks
- Lubrication of moving parts such as impeller shafts
Common issues that may arise during operation include emulsion formation, poor phase separation, and equipment fouling. Troubleshooting these problems often involves adjusting process parameters, modifying equipment design, or changing chemical formulations. By maintaining detailed operating logs and conducting regular performance evaluations, operators can quickly identify and resolve issues, ensuring consistent and reliable operation of their pilot scale mixer settler units.
Conclusion
Pilot scale mixer settlers have emerged as indispensable tools for process development and optimization across a wide range of industries. Their ability to simulate industrial-scale operations while offering flexibility and precise control makes them ideal for tackling complex separation challenges. From rare earth extraction to pharmaceutical purification, these versatile units are driving innovation and efficiency in chemical processing. As industries continue to seek more sustainable and cost-effective solutions, the role of pilot scale mixer settlers in bridging the gap between laboratory discoveries and full-scale production is set to grow even further.
