Pilot Solvent Extractor

Shaanxi Cuiyan: Your Trusted Pilot Solvent Extractor Manufacturer & Supplier

As a leading pilot solvent extractor manufacturer since 2012, Shaanxi Cuiyan Technology Co., Ltd combines cutting-edge engineering with industry expertise. Our equipment features automated controls, corrosion-resistant materials, and modular scalability, ensuring seamless integration into lab-to-production workflows. With 9+ patented technologies and a 10,000+ stage installation record, we deliver reliable, high-efficiency solutions for global clients.

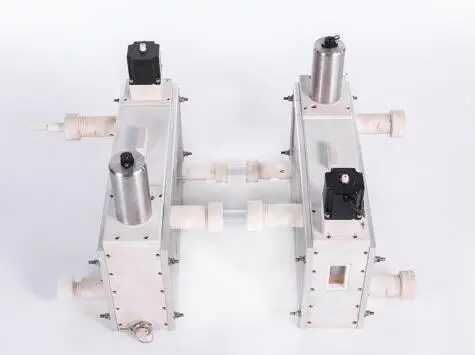

Pilot Solvent Extractor Description

Ourpilot solvent extractor is designed for precision solvent extraction in R&D and small-batch production. Ideal for industries requiring adaptable, contamination-free processes, it balances operational simplicity with advanced customization.

Specifications

Why Choose Our Pilot Solvent Extractor?

1️⃣ Smart Automation: Integrated sensors (temperature, pH, liquid level) enable real-time monitoring.
2️⃣ Zero Leakage: Anti-bubbling design and one-step tank operations enhance safety.
3️⃣ Energy Efficiency: Modular units reduce power consumption by up to 30%.
4️⃣ Scalable Design: Rapid installation/expansion adapts to changing production needs.
5️⃣ Industry-Specific Customization: Tailored mixing/clarification tanks for rare earth, battery recycling, and more.

Material & Processing

• PP/PPH/PVC: High chemical resistance for acidic/alkaline solvents.
• Transparent PMMA: Allows visual monitoring of extraction phases.
• Welding & Bonding: Precision joints ensure durability under continuous operation.

Key Functions

• Adjustable Agitator Speed: Optimize mixing intensity for viscous solvents.
• Phase Interface Control: Fine-tune settling time for perfect separation.
• IoT-Ready: Compatible with SCADA systems for remote data access.

How It Works

1. Mixing Phase: Solvents and feedstock blend in the agitation chamber.
2. Settling Phase: Immiscible liquids separate into distinct layers.
3. Extraction: Target compounds are collected via precision outlets.

Applications

1. Rare Earth & Battery Metals: Lithium, cobalt, nickel recovery
   In the pursuit of lithium, cobalt, and nickel recovery, diverse sources are exploited. From lithium - bearing ores, chemical leaching processes are initiated, followed by precipitation and ion - exchange techniques to isolate lithium. Cobalt and nickel, vital for battery anodes, are reclaimed from spent batteries. Dismantling of batteries is followed by chemical treatment to dissolve these metals, and then solvent extraction is used to purify them. The recovered metals are recycled into new batteries, reducing reliance on virgin mining and minimizing environmental impact.
2. Pharmaceuticals: High - purity API extraction
   High - purity Active Pharmaceutical Ingredient (API) extraction is a complex and critical process. Starting with raw materials, a series of chemical and physical methods are employed. Extraction solvents are carefully chosen to selectively dissolve the API. Multiple extraction cycles may be required to enhance purity. After extraction, techniques like crystallization, chromatography, and distillation are used to further purify the API. Rigorous quality control measures ensure that the final product meets the stringent standards necessary for safe and effective medications.
3. Environmental: Waste oil recycling, biofuel production
   Waste oil recycling is a crucial step towards environmental sustainability. Waste oil, from sources like automotive engines, is collected and undergoes a refining process. This includes removing impurities such as water, dirt, and heavy metals through filtration and distillation. The recycled oil can be reused as lubricants or further processed into other products. Biofuel production, on the other hand, often involves converting biomass, like vegetable oils or agricultural waste, into usable fuels through transesterification or fermentation, reducing dependence on fossil fuels.
4. Food & Beverage: Essential oil refinement, decaffeination
   Essential oil refinement in the food and beverage industry is a meticulous process. Pilot Solvent Extractor starting with plant materials, extraction methods like steam distillation or cold - pressing are used to obtain the crude essential oil. This oil is then refined to remove impurities and unwanted odors or flavors. In the case of decaffeination, especially for coffee and tea, methods such as solvent extraction (using food - grade solvents) or supercritical carbon dioxide extraction are used. These processes selectively remove caffeine while preserving the flavor and aroma compounds of the beverage ingredients.

User Guide

• Setup: Mount on mobile platforms for flexible lab layouts.
• Optimization: Use viewing windows to calibrate phase separation.
• Maintenance: Clean with non-abrasive agents to preserve material integrity.

Packaging & Transportation

Shock-proof crating with GPS-tracked global shipping.

After-Sales

2-year warranty + lifetime technical support.

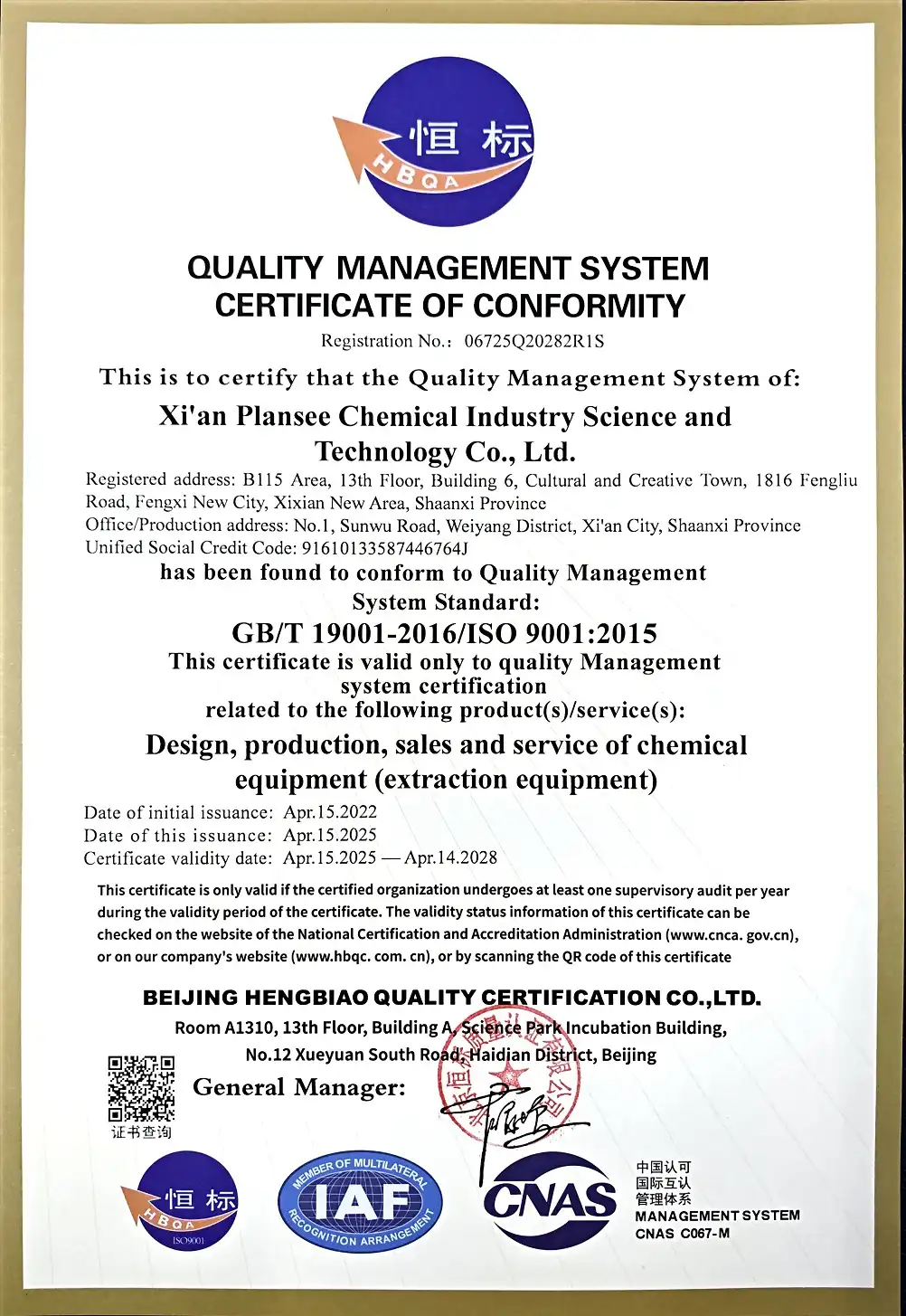

Certifications

CE, ISO9001, 8+ patents.

FAQ

Q: Can this equipment handle flammable solvents?
A: Yes! Our explosion-proof models comply with ATEX/IECEx standards.

Q: What's the lead time for customization?
A: Typically 4–6 weeks, depending on design complexity.

Q: Is training provided?
A: Free video guides and on-site training are available.

Q: How scalable is this system for full production?
A: Modular designs allow easy capacity expansion.

Q: Do you offer CE certification?
A: All units meet CE, ISO9001, and GMP requirements.

Contact Us

Need a pilot solvent extractor that grows with your R&D? Email us at wangzhijun@cuiyan-tec.com for a free process consultation!
