Solvent Extraction Mixer Settler
Configuration：desktop base edition, mobile standard edition, environmentally friendly high edition
Mixing volumn: 200ml, 300ml, 500ml, 1L, 2L, 3L or customized
Plate thickness：5mm，6mm，8mm，10mm
Material: PP，PPH，PVC，transparent PVC，PMMA，PTFE，PEEK，SUS，Ti
Production process: welding，bonding，bending，injection molding，integral forming
Optional function: temperature control device, pH adjustment device, water-bath jacket device, anti-overflow tank device，watch window device
Advantages: high extraction rate，perfect separation effect；No leakage risk, easy operation，sturdy and beautiful shape；Adjustable mixer-settler stage amount, adjustable agitator speed, and adjustable phase interface height；Highly customizable
Application：rare earth extraction;nickel cobalt extraction;rubidium cesium extraction;salt lake brine extraction;nuclear extraction;isotope extraction;lithium battery recycling;vanadium battery recycling;copper electroplate recycling;biological wastewater recycling
- Product Description
Shaanxi Cuiyan: Your Trusted Solvent Extraction Mixer Settler Manufacturer & Supplier
Shaanxi Cuiyan Technology Co., Ltd, a leading solvent extraction mixer settler manufacturer since 2012, delivers cutting-edge solutions for mining, recycling, and chemical industries. With 37+ experts and 9+ patented innovations, our equipment combines automation, modularity, and corrosion resistance to maximize extraction efficiency and operational flexibility.
Solvent Extraction Mixer Settler Description
Our solvent extraction mixer settler is engineered for high-purity separation of metals, chemicals, and critical materials. Designed for lab, pilot, and industrial scales, it adapts to diverse processes with customizable configurations.
Specifications
| Parameter | Options/Capabilities |
|---|---|
| Mixing Volume | 200mL – 3L (Customizable) |
| Plate Thickness | 5mm – 10mm |
| Materials | PP, PPH, PVC, PTFE, SUS, Ti, and more |
| Production Process | Welding, Injection Molding, Integral Forming |
| Optional Features | pH/Temperature Control, Anti-Overflow Design |
Why Choose Our product?
- Patented Modular Design – Scale your system effortlessly with stackable units.
- Zero-Leak Assurance – Robust seals and precision welding ensure safety.
- Automation-Ready – Integrate PLCs for real-time monitoring.
- Global Compliance – Meets CE, ISO, and ASME standards.
Material & Processing Excellence
Choose from corrosion-resistant materials like PTFE for acidic environments or titanium for nuclear applications. Our advanced bonding and injection molding techniques guarantee durability under extreme conditions.
Key Functions
- Adjustable Agitator Speed – Optimize mixing intensity for viscous fluids.
- Customizable Stage Count – Adapt to batch or continuous processes.
- Anti-Bubbling Technology – Minimize solvent loss and phase contamination.
How It Works
- Mixing Phase: The agitator blends two immiscible phases (e.g., organic solvent and metal-rich aqueous solution).
- Settling Phase: Gravity-driven separation occurs in the clarifier, producing distinct layers for extraction.
- Continuous Flow: Multi-stage units enable high-throughput processing.

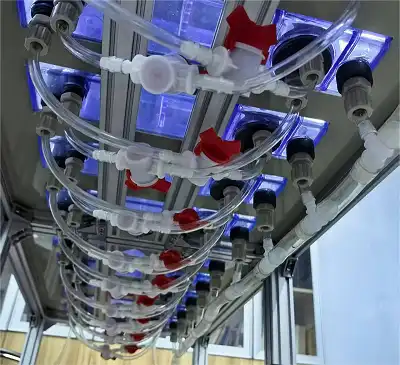

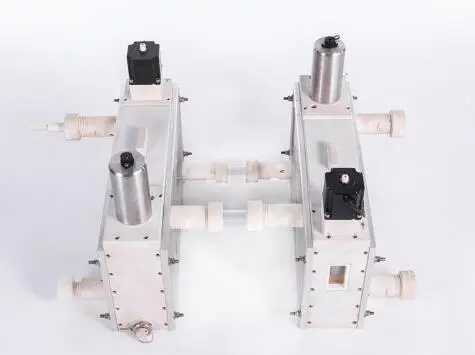

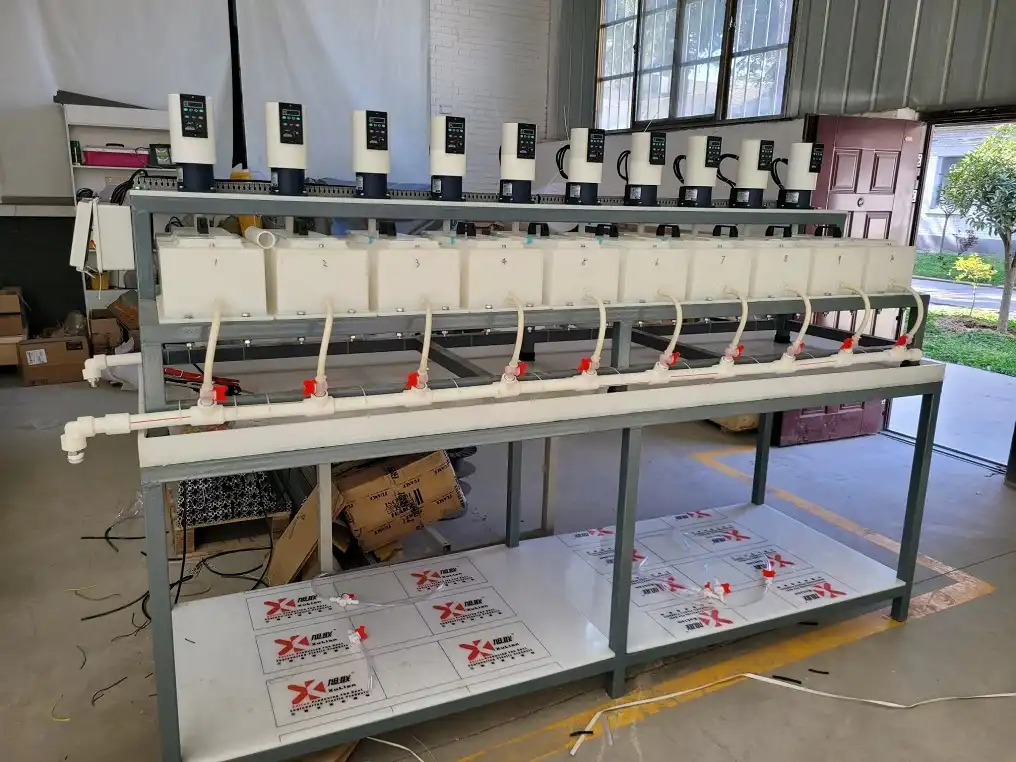

Physical Display
What you see are actual Solvent Extraction Mixer Settler displays. The clear pictures allow you to better visualize the equipment. Feel free to reach out with questions or for more information.
User Guide
Setup takes <2 hours. Detailed manuals and video tutorials are provided. Need help? Our engineers offer remote or on-site training.
Applications
- Mining
In the mining sector, advanced techniques are employed for the recovery of copper, nickel, and rare earth elements. For copper, methods like open - pit and underground mining are used, followed by beneficiation processes such as flotation to separate the ore from gangue. Nickel is often extracted from sulfide or laterite ores through hydrometallurgical and pyrometallurgical routes. Rare earth recovery involves complex extraction processes from their ores, crucial for applications in electronics, clean energy, and aerospace industries. - Battery Recycling
Battery recycling has become increasingly important, especially for retrieving lithium and cobalt from spent batteries. The process starts with the mechanical dismantling of batteries to separate components. Then, chemical leaching is used to dissolve lithium and cobalt from the battery materials. Subsequent precipitation and refining steps are carried out to obtain high - purity lithium and cobalt, which can be reused in new battery manufacturing, reducing both environmental waste and reliance on virgin resources. - Nuclear
In the nuclear field, uranium and plutonium purification is a highly specialized and critical process. Uranium purification involves removing impurities from uranium ore concentrates. This is achieved through methods like solvent extraction and ion - exchange. Plutonium purification, which is more complex due to its radioactive nature, requires advanced chemical separation techniques. These purified elements are essential for nuclear power generation and nuclear weapons production (although the latter is highly regulated for non - proliferation reasons). - Waste Treatment
Waste treatment focuses on removing heavy metals from industrial effluents to protect the environment. Industrial effluents often contain harmful heavy metals such as lead, mercury, and cadmium. Treatment methods include chemical precipitation, where chemicals are added to form insoluble metal compounds that can be separated. Ion - exchange resins are also used to capture heavy metal ions. These processes help in purifying the wastewater before it is discharged, minimizing the impact on water bodies and ecosystems.
Packaging & Transportation
Crush-proof wooden cases with foam lining. Global shipping via air/sea.
After-Sales Service
12-month warranty + lifetime technical support. Spare parts delivered in 72 hours.
Certifications
ISO 9001, CE, and pressure vessel certifications available upon request.
FAQ
Q1: Can you customize mixer-settlers for high-temperature processes?
A: Yes! We offer SUS 316L and titanium options with thermal jackets.
Q2: What's the lead time for a 500L industrial unit?
A: 6–8 weeks, including factory testing.
Q3: Do you provide phase interface sensors?
A: Absolutely. Integrated IoT sensors are optional.
Q4: How energy-efficient is your equipment?
A: Variable-speed drives reduce power consumption by 30% vs. traditional models.
Q5: Can I upgrade my existing unit?
A: Yes. Modular design allows easy capacity expansion.
Contact Us
Elevate your extraction process with Xi'an Plansee's expertise. Email wangzhijun@cuiyan-tec.com for a tailored quote or technical consultation of Solvent Extraction Mixer Settler.
