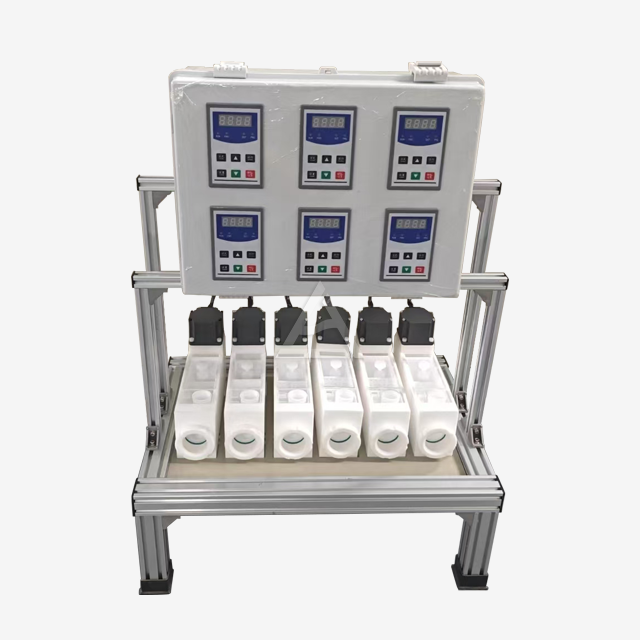

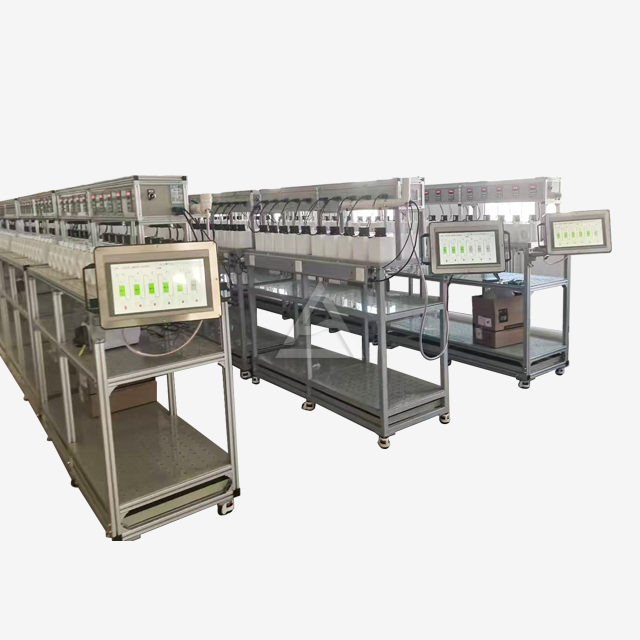

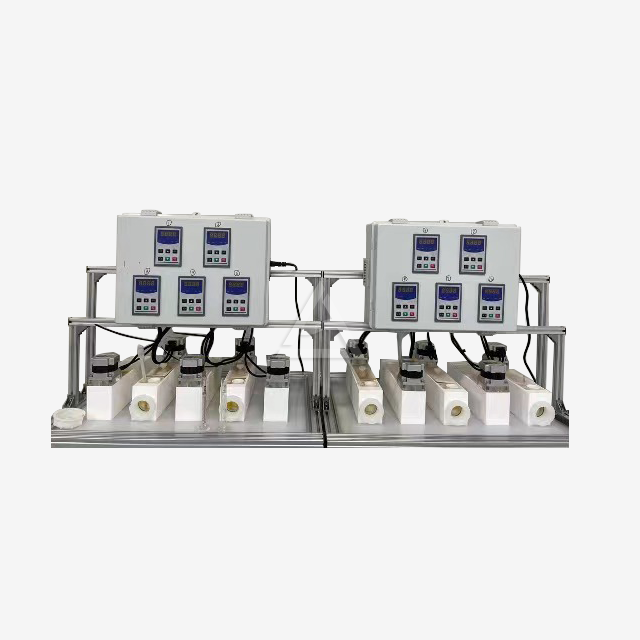

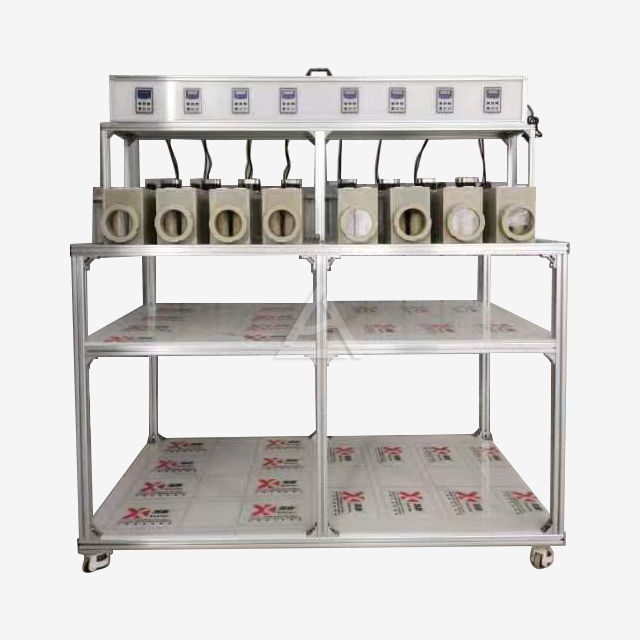

Automated Liquid Liquid Extraction
Configuration：desktop base edition, mobile standard edition, environmentally friendly high edition
Mixing volumn: 200ml, 300ml, 500ml, 1L, 2L, 3L or customized
Plate thickness：5mm，6mm，8mm，10mm
Material: PP，PPH，PVC，transparent PVC，PMMA，PTFE，PEEK，SUS，Ti
Production process: welding，bonding，bending，injection molding，integral forming
Optional function: temperature control device, pH adjustment device, water-bath jacket device, anti-overflow tank device，watch window device
Advantages: high extraction rate，perfect separation effect；No leakage risk, easy operation，sturdy and beautiful shape；Adjustable mixer-settler stage amount, adjustable agitator speed, and adjustable phase interface height；Highly customizable
Application：rare earth extraction;nickel cobalt extraction;rubidium cesium extraction;salt lake brine extraction;nuclear extraction;isotope extraction;lithium battery recycling;vanadium battery recycling;copper electroplate recycling;biological wastewater recycling
- Product Description
Shaanxi Cuiyan Technology Co., Ltd
Since 2012, Shaanxi Cuiyan Technology Co., Ltd has delivered innovative automated liquid liquid extraction solutions for labs and industries worldwide. With 37+ experts from top Chinese universities and 9,000+ equipment stages sold, we combine modular design, energy efficiency, and smart automation to meet diverse extraction needs. Key advantages: corrosion resistance, 30% faster separation, and custom sensor integration (pH, temperature, liquid level).
Product Description

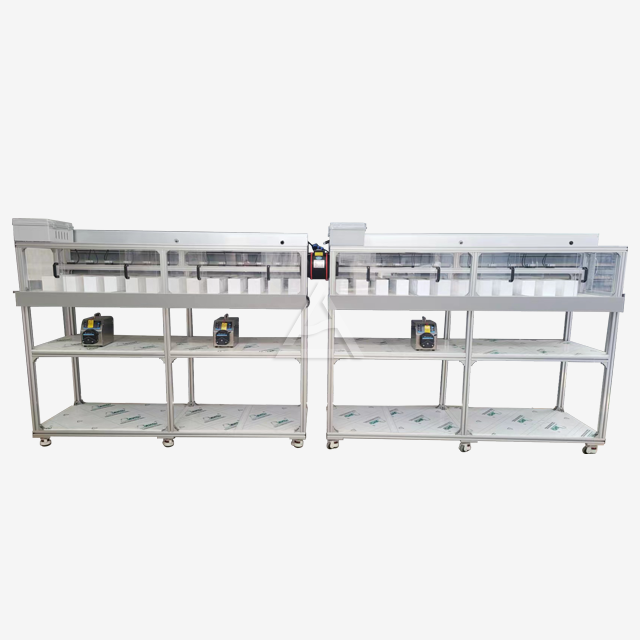

Our lab-scale mixer settler streamlines solvent extraction with unmatched precision. Designed for rare metals, battery recycling, and pharmaceutical research, it adapts to workflows via adjustable mixing speed, phase interface control, and leak-proof operation.
Specifications
| Category | Options |
|---|---|
| Configuration | Desktop Base Edition, Mobile Standard Edition, Eco-Friendly High Edition |
| Mixing Volume | 200mL–3L (Customizable) |
| Plate Thickness | 5mm–10mm |
| Material | PP, PPH, PVC, PMMA, PTFE, SUS, Ti |
| Production Process | Welding, Bonding, Injection Molding, Integral Forming |
| Optional Features | Temperature Control, pH Adjustment, Anti-Overflow Tank, Watch Window |
Why Choose Our prouct System?
- Compliance Ready: Meets GMP/GLP, ISO, and CE standards for global markets.
- Scalable Design: Add/remove modules in hours to match process changes.
- Energy Savings: 20% lower solvent use vs. traditional systems.
- 24/7 Support: On-call engineers and spare parts guarantee <48hr response.
Material & Processing Excellence
Choose from 10+ corrosion-resistant materials, including PTFE for acidic environments or SUS 316L for high-purity applications. Our advanced bonding and welding techniques ensure zero leakage under 0.8MPa pressure.
Key Functions
- Anti-Bubbling Technology: Eliminate cross-contamination with precision baffles.
- One-Step Tank Emptying: Reduce manual handling by 90%.
- Real-Time Monitoring: Integrated sensors track pH, temperature, and phase separation.
How It Works?

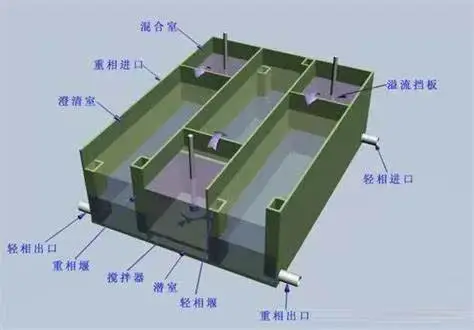

The automated liquid liquid extraction system mixes two immiscible liquids in a stirred chamber, then separates them in a clarifier tank. Adjustable rotor speed (50–500 RPM) and settler dwell time ensure optimal mass transfer. Results are repeatable within ±1% deviation.

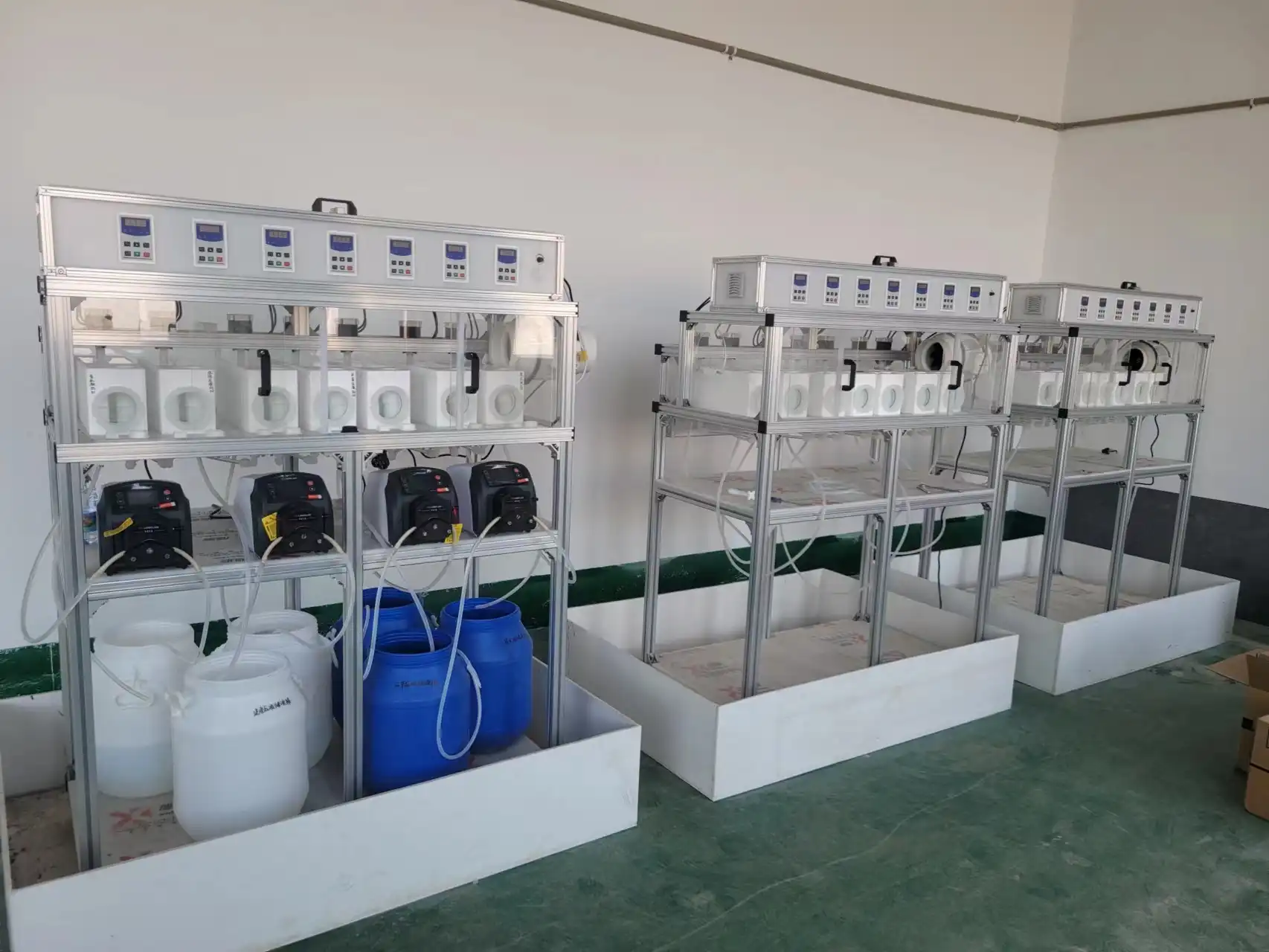

Physical Display
Image: Compact benchtop unit with touchscreen controls and modular stackable stages.
User Guide
- Setup: Mount modules, connect sensors, and load solvents.
- Calibration: Auto-calibrate pH/temperature probes via the dashboard.
- Run: Select pre-set protocols or create custom profiles.
- Maintenance: Clean with <5% HNO3 solution; inspect O-rings monthly.
Applications
- Rare Earth & Battery Recycling: Extract Li, Co, Ni from ores or spent batteries.
- Pharmaceuticals: Purify APIs or analyze metabolites with GMP-compliant data logs.
- Environmental Testing: Detect PPb-level pollutants in water/soil.
Packaging & Transportation
Your items are safeguarded by a crush - proof foam casing, which provides exceptional protection against impacts during transit. This high - density foam cushions and absorbs any shock, preventing damage to the contents within. Complementing this is the waterproof IP67 - rated box. With an IP67 rating, it can withstand immersion in water up to 1 meter for 30 minutes, keeping your goods dry even in the most adverse weather conditions. When it comes to getting your package to you, we offer global shipping services through renowned carriers like DHL and FedEx. Their extensive networks ensure your items reach destinations worldwide promptly and securely, no matter how remote the location.
After-Sales Service
Free 2-year warranty + lifetime technical guidance.
Qualification Certification
Our products and operations are proudly ISO 9001, CE, and RoHS certified, signifying our dedication to multiple critical standards. ISO 9001 certification validates our comprehensive quality management system, ensuring that every step of production, from raw material sourcing to final product delivery, meets stringent quality benchmarks. The CE mark indicates compliance with European health, safety, and environmental protection directives, making our offerings suitable for the EU market. RoHS certification, on the other hand, demonstrates our commitment to restricting the use of hazardous substances in our products. This ensures that our goods are not only of high quality and safe to use but also environmentally friendly, giving our customers confidence in our reliability and responsibility.
FAQ
Q: Can the system integrate with existing lab software?
A: Yes! It exports CSV/PDF reports and supports LIMS API.
Q: How long does customization take?
A: 3–6 weeks for non-standard materials/volumes.
Q: Is training included?
A: Free virtual/on-site training for all buyers.
Q: What's the minimum order quantity?
A: MOQ = 1 unit. Bulk orders get 10% off.
Q: Do you provide process optimization advice?
A: Yes – our engineers will analyze your workflow for free.
