The Fundamentals of Mixer Settler Technology
Design and Components

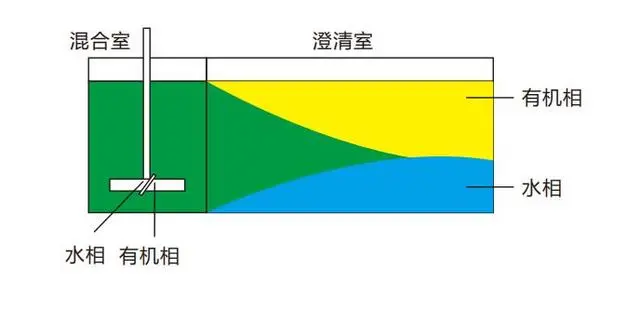

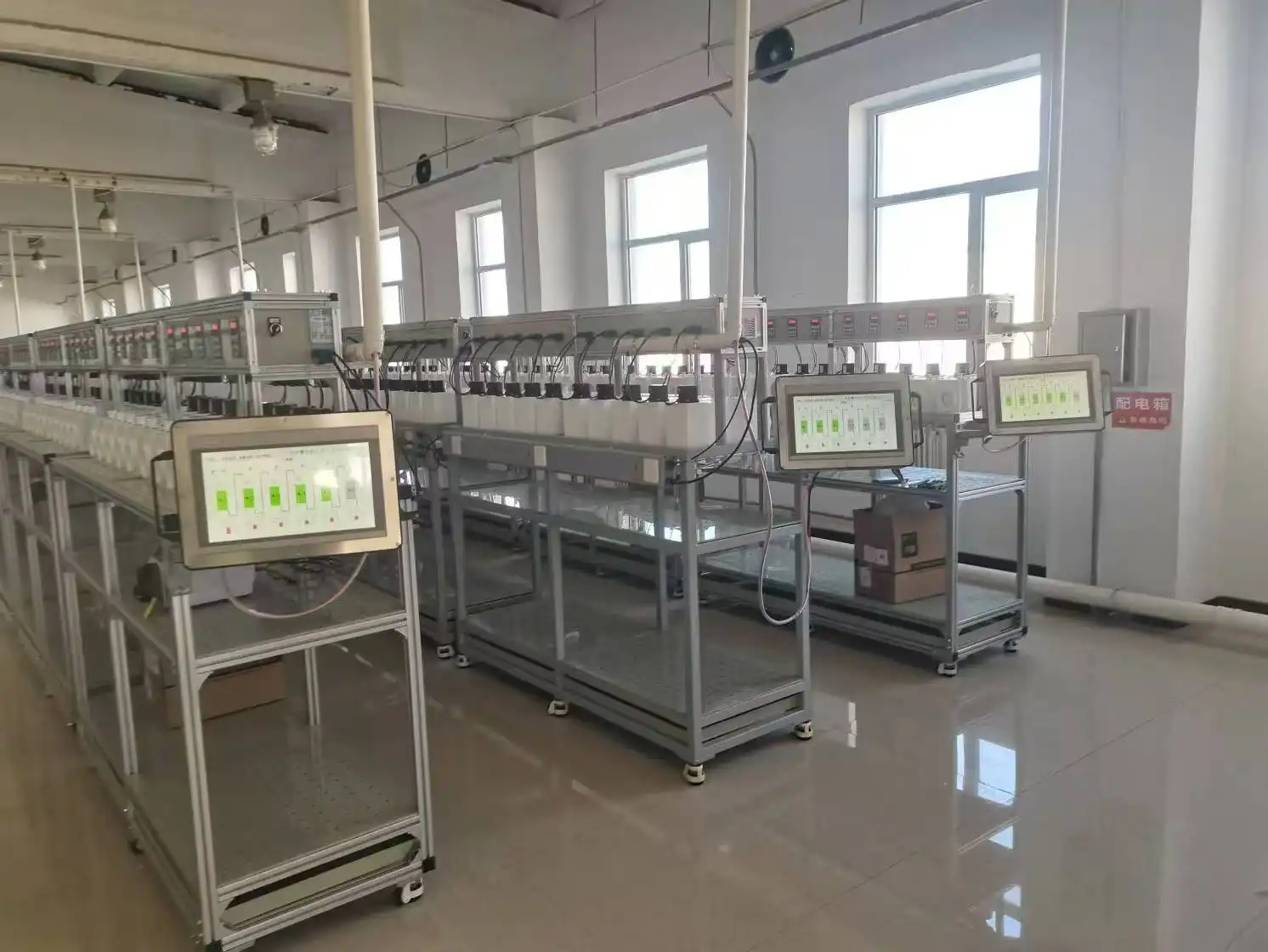

Mixer settlers are ingeniously designed to facilitate efficient liquid-liquid extraction. The primary components include a mixing chamber and a settling chamber. In the mixing chamber, an agitator vigorously blends two immiscible liquids, promoting mass transfer between the phases. This is followed by the settling chamber, where gravity separation occurs, aided by carefully designed baffles and weirs.
The construction materials for mixer settlers vary based on the application. Common options include polypropylene (PP), polyvinyl chloride (PVC), and stainless steel (SUS). For corrosive environments, specialized materials like polytetrafluoroethylene (PTFE) or titanium may be employed. The choice of material significantly impacts the unit's durability and chemical compatibility.
Operating Principles
The operation of a mixer settler revolves around two key stages: mixing and settling. During the mixing phase, the agitator creates turbulence, increasing the interfacial area between the two liquids and facilitating mass transfer. The settling stage allows the mixed phases to separate based on density differences. Adjustable weirs help control the interface height, ensuring optimal separation.

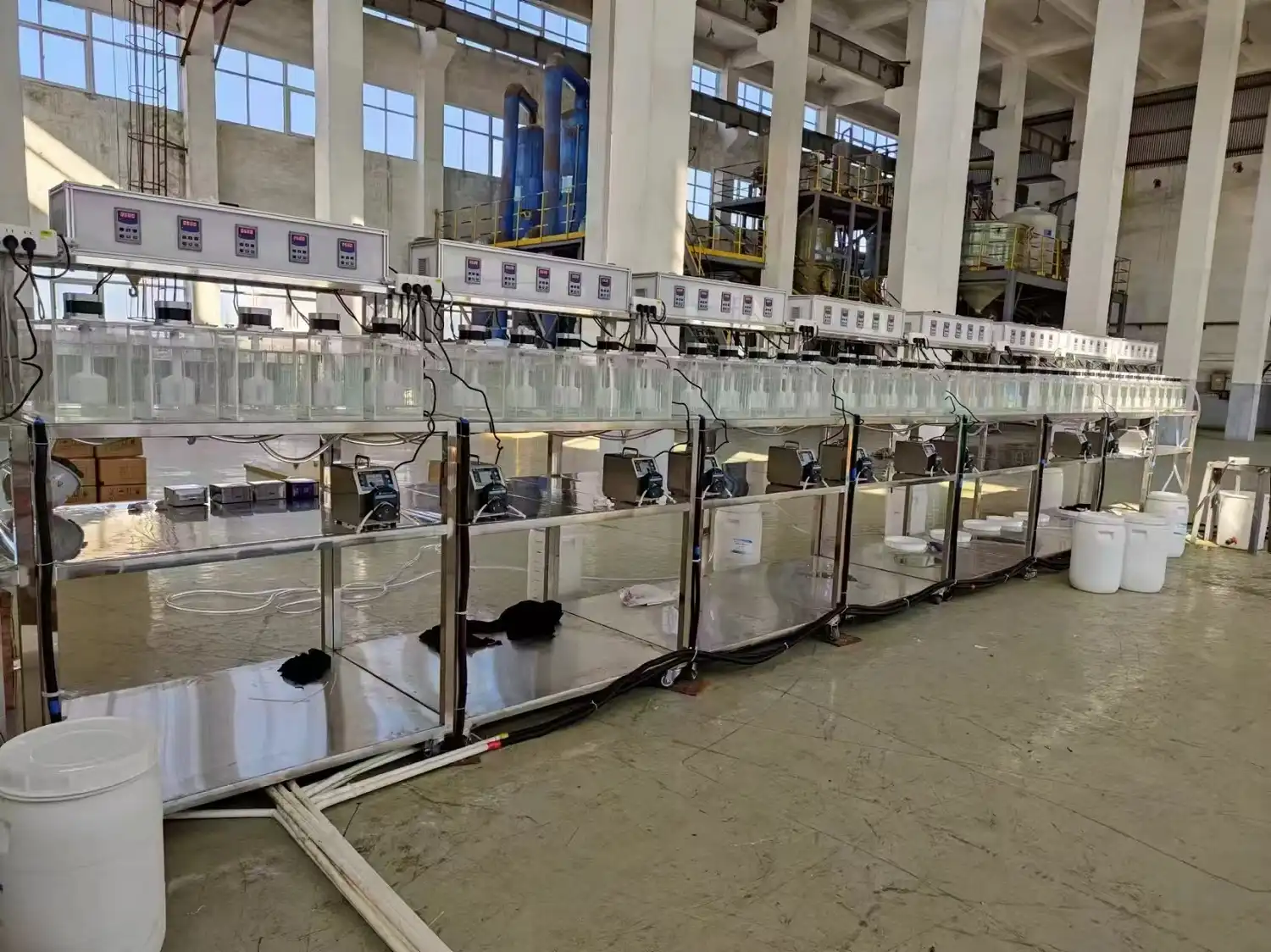

One of the notable advantages of mixer settlers is their flexibility in operation. Operators can fine-tune parameters such as agitation speed, flow rates, and phase ratios to optimize extraction efficiency. This adaptability makes mixer settlers suitable for a wide range of applications, from small-scale laboratory experiments to large industrial processes.
Advantages and Limitations
Mixer settlers offer several advantages over other separation technologies. They provide excellent extraction rates and separation effects while maintaining a low risk of leakage. The modular design allows for easy scaling and customization of the extraction process. Additionally, their sturdy construction and straightforward operation make them a reliable choice for many industries.
However, mixer settlers are not without limitations. They may require a larger footprint compared to some other extraction technologies, and their batch-wise operation can be less efficient for continuous processes. Despite these drawbacks, the benefits often outweigh the limitations, especially in applications requiring high purity and flexibility.
Applications Across Industries
Rare Earth Element Extraction
In the field of rare earth element (REE) extraction, mixer settlers play a crucial role. The process of separating and purifying elements like neodymium and dysprosium from ore concentrates relies heavily on efficient liquid-liquid extraction. Mixer settlers enable precise control over the extraction conditions, allowing for selective separation of individual rare earth elements.
The multi-stage capability of mixer settlers is particularly beneficial in REE extraction. Each stage can be optimized for a specific element or group of elements, leading to higher purity end products. This level of control is essential in producing high-grade rare earth materials for applications in electronics, magnets, and other advanced technologies.
Nuclear Fuel Processing
The nuclear industry utilizes mixer settlers for critical separation processes, including uranium and plutonium separation in spent fuel reprocessing. The robust construction and leak-proof design of mixer settlers make them suitable for handling radioactive materials safely. The ability to adjust operating parameters allows for precise control over the separation process, ensuring compliance with strict nuclear material handling regulations.
In nuclear applications, mixer settlers are often constructed from highly resistant materials like PTFE or specialized alloys to withstand the corrosive nature of the process chemicals. The modular design also facilitates maintenance and decontamination procedures, which are crucial in nuclear facilities.
Wastewater Treatment and Metal Recovery
Mixer settlers have found important applications in wastewater treatment, particularly in the removal of heavy metals. Industries such as electroplating and mining generate wastewater containing valuable metals like copper, nickel, and zinc. Mixer settlers enable the efficient extraction of these metals, contributing to both environmental protection and resource recovery.
The flexibility of mixer settlers allows for the treatment of various types of wastewater streams. By adjusting the extraction chemistry and operating conditions, it's possible to selectively remove specific contaminants or recover valuable materials. This versatility makes mixer settlers an attractive option for industries looking to improve their environmental performance while potentially creating new revenue streams from recovered materials.
Innovations and Future Trends
Advanced Materials and Designs
The field of mixer settler technology is experiencing continuous innovation, particularly in materials science. New, highly resistant polymers and composite materials are being developed to withstand increasingly aggressive chemical environments. These advancements are expanding the application range of mixer settlers into more challenging processes.
Design innovations are also enhancing the performance of mixer settlers. For instance, improved baffle designs are minimizing entrainment and reducing settling times. Some manufacturers are exploring 3D-printed components to create complex internal structures that optimize flow patterns and increase extraction efficiency.
Integration with Digital Technologies
The integration of mixer settlers with digital technologies is revolutionizing their operation and control. Advanced sensors and real-time monitoring systems allow for precise tracking of parameters such as pH, temperature, and phase interface levels. This data can be fed into process control systems for automated adjustment of operating conditions, ensuring optimal performance.
Machine learning algorithms are being developed to predict and optimize mixer settler performance based on historical data and current operating conditions. This predictive capability can lead to improved efficiency, reduced downtime, and enhanced product quality across various applications.
Sustainability and Energy Efficiency
As industries focus more on sustainability, mixer settler manufacturers are developing energy-efficient designs. Innovations in agitator technology, for example, are reducing power consumption without compromising mixing efficiency. Some designs incorporate energy recovery systems, capturing the potential energy of liquid flows to power auxiliary equipment.
Moreover, the role of mixer settlers in circular economy initiatives is growing. Their ability to efficiently separate and recover valuable materials from waste streams aligns well with sustainability goals. As regulations around waste management and resource recovery become stricter, the importance of mixer settlers in sustainable industrial processes is likely to increase.
Conclusion
Mixer settlers represent a cornerstone of modern separation technology, offering a versatile and efficient solution for liquid-liquid extraction across various industries. Their ability to provide precise control, coupled with a modular and customizable design, makes them indispensable in applications ranging from rare earth element purification to wastewater treatment. As innovations in materials, design, and digital integration continue to enhance their capabilities, mixer settlers are poised to play an even more significant role in addressing the complex separation challenges of the future, contributing to more efficient and sustainable industrial processes.
