Navigating the complexities of liquid-liquid separation at a pilot scale requires precision and adaptability. A pilot scale mixer settler bridges the gap between lab-scale tests and full industrial operations by providing an efficient, scalable system. This cost-effective equipment simulates industrial separation processes, enabling researchers and plant managers to optimize extraction strategies with confidence. Selecting the right mixer settler translates into enhanced productivity, compliance with regulatory requirements, and smooth scale-up of botanical extracts, chemicals, or natural ingredients.
Understanding Pilot Scale Mixer Settlers
What is a Pilot Scale Mixer Settler?

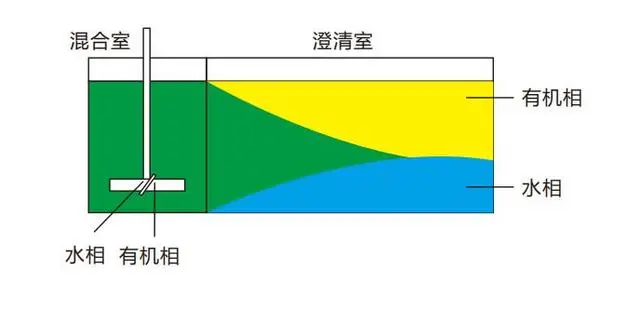

A pilot scale mixer settler is a compact but sophisticated apparatus designed for the liquid-liquid extraction of components. By simulating industrial conditions on a smaller scale, it contains two primary sections: the mixer and the settler. The mixer facilitates intimate contact of immiscible liquids to promote mass transfer, and the settler allows the phases to separate naturally based on density differences.

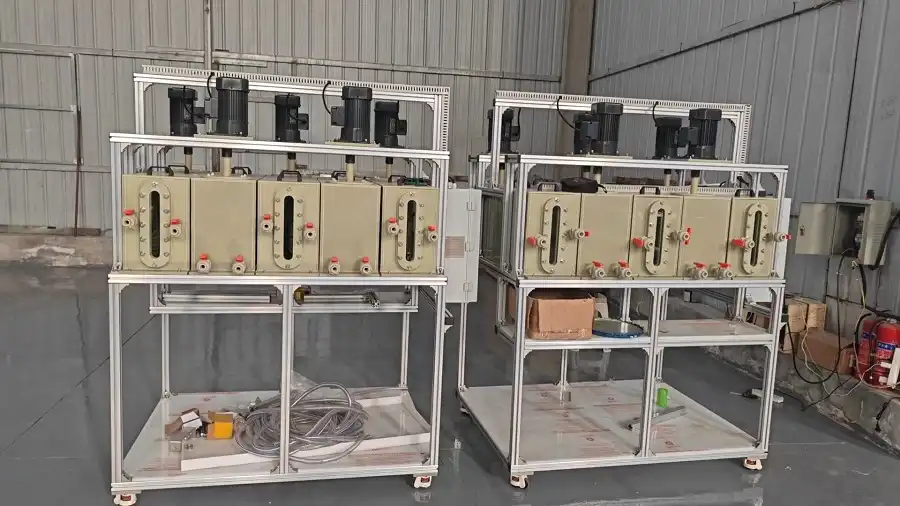

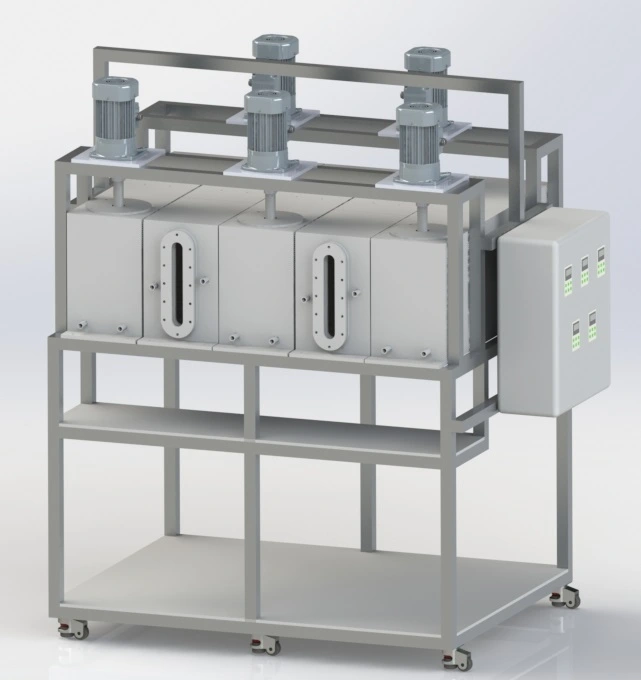

These systems come in mobile platform versions or skid-mounted editions, with modular designs often ranging from 8L to 80L mixing volumes, and custom configurations available. Material construction typically includes corrosion-resistant polymers such as PP, PPH, PVC, transparent PVC, and PMMA, tailored via welding or bonding processes for secure, leak-free performance. Optional functionalities like temperature regulation, pH adjustment, overflow prevention, and observation windows significantly elevate the system's precision and ease of use.
How Does a Mixer Settler Work?
The mixer settler operates by blending two immiscible liquid phases - organic and aqueous - through a controlled agitation process. Agitators finely disperse the phases, enabling the targeted components to transfer from one phase to another efficiently. Following the mixing phase, liquids flow into the settling section where gravity allows clear phase separation. Adjustable weirs and variable agitator speeds facilitate fine tuning of interface height and mixing intensity.
Automation enhances control in the pilot scale mixer settler by integrating sensors that continuously monitor parameters such as pH, temperature, and liquid levels, optimizing process consistency. This combined approach results in higher extraction rates and a perfect separation effect, essential for industries ranging from pharmaceutical purification to battery recycling.
Comparing Pilot Scale Mixer Settlers with Other Equipment
Pilot Scale Mixer Settler vs Industrial Scale
Industrial scale mixer settlers are engineered for continuous, high-volume operations, often custom-built with heavy-duty materials for robustness. Pilot scale systems, however, prioritize flexibility, enabling testers to evaluate parameters at a fraction of the cost while maintaining design characteristics of their full-scale counterparts.
Pilot scale units provide rapid adjustments in stage count, agitator speed, and phase interface height without downtime, making them invaluable during research and process development. Their compact footprint and modular design lower capital expenditures and streamline scalability, producing reliable data to predict industrial performance.
Pilot Scale Mixer Settler vs Extraction Column
Compared to extraction columns, pilot scale mixer settlers more directly control mixing intensity and residence times because of their distinct mixing and settling zones. This separation often yields better phase clarity and extraction efficiency in batch or semi-continuous applications.
Mixer settlers excel when handling multiple stages with adjustable configurations, allowing processes such as rare earth element recovery or salt lake brine extraction to be optimized with precision. In contrast, extraction columns often demand more complex maintenance and may be less adaptable for quick parameter shifts at a pilot scale.
Purchasing and Customizing Pilot Scale Mixer Settlers
Buy Pilot Scale Mixer Settler
When considering investment in a pilot scale mixer settler, understanding total cost of ownership is crucial. Pricing varies by configuration, volume, material, and optional devices such as temperature controls or pH adjustment units. Leasing may also be a viable option for temporary projects to reduce upfront capital commitments.
Identifying operational requirements early ensures that budget aligns with necessary features. Shaanxi Cuiyan Technology offers scalable options from 8L to 80L mixing volumes with materials suitable for acidic or alkaline environments, providing an optimal balance of function and economy.
Custom Pilot Scale Mixer Settler
Tailoring mixer settlers to specific processes delivers superior control and efficiency. Customization includes selecting plate thicknesses from 8mm to 15mm, materials compatible with corrosive media like PP or PMMA, and adding key instrumentation such as watch windows, overflow prevention devices, or sophisticated sensor arrays.
With decades of expertise in designing extraction equipment, Shaanxi Cuiyan Technology specializes in precision customization supported by CAD design services. This ensures seamless integration of mixer-settler stages and sensor placements tailored to the unique chemistry and kinetics of your separation processes.
Leading Brands and Suppliers
Top Pilot Scale Mixer Settler Brands
The marketplace offers several reputable brands specializing in pilot scale mixer settlers. Each brand distinguishes itself through design innovation, material selection, and post-sale support. High-quality manufacturers focus on modularity, corrosion resistance, and automation capabilities, meeting the stringent needs of pharmaceuticals, food processing, and chemical sectors.
Evaluating these manufacturers involves assessing their track record in precision engineering, their ability to provide technical expertise, and their responsiveness to client customization requests - all vital when aiming for long-term operational success.
Pilot Scale Mixer Settler Suppliers in USA
The United States market benefits from a robust network of suppliers delivering state-of-the-art pilot scale mixer settlers with localized customer service and technical support. Many suppliers collaborate closely with R&D scientists and production directors to provide validated equipment verified for GMP compliance and food-grade safety standards.
Shaanxi Cuiyan Technology Co., Ltd stands out as a global partner with a strong presence and reputation in supplying pilot scale mixer settlers tailored for chemical, pharmaceutical, cosmetics, and environmental applications, ensuring clients in the US receive advanced and reliable solutions.
Shaanxi Cuiyan Technology Co., Ltd - Your Trusted Partner
Shaanxi Cuiyan Technology Co., Ltd offers over a decade of experience developing pilot scale mixer settlers that embody modular design, corrosion-resistant construction, and advanced automation. Their equipment is engineered for applications including rare earth extraction, pharmaceutical purification, battery recycling, and nuclear waste treatment.
Recognized for combining scalability with ease of operation, Cuiyan's systems feature adjustable mixer-settler stages, controllable agitator speeds, and customizable phase interface heights. Their commitment to quality ensures high extraction rates without risk of leakage - ideal for clients demanding precision and compliance.
Conclusion
A pilot scale mixer settler plays a vital role in bridging laboratory experimentation and industrial-scale production, offering an adaptable, efficient, and cost-effective extraction solution. Shaanxi Cuiyan Technology Co., Ltd provides expertly engineered, customizable systems that deliver high extraction rates and flawless separations across industries. Investing in a well-chosen pilot scale mixer settler not only enhances process validation but also accelerates development timelines with scalable results.
FAQs
What are the key advantages of using a pilot scale mixer settler?
Pilot scale mixer settlers provide precise simulation of industrial liquid-liquid extraction processes with reduced material and energy consumption. They allow for flexible adjustment of mixing stages, ensure high extraction efficiency, and facilitate easy scalability. The modular design and corrosion-resistant materials enhance durability and operational safety.
How do I choose the right mixer settler for my needs?
Selection depends on factors such as the chemical nature of the substances, required mixing volume, compliance needs, and integration capabilities. Consultation with suppliers to assess compatibility of materials, available customizations, and control features is essential. Reliability and after-sale support are also important considerations.
Can I customize my mixer settler?
Yes. Customization options include choosing configurations like mobile platform or skid-mounted editions, selecting materials suited for corrosive chemistries, specifying plate thickness, and integrating optional devices such as temperature controllers or pH adjusters. Custom sensor arrangements and CAD-aided design optimize system performance for unique processes.
Where to Buy Pilot Scale Mixer Settler?
Shaanxi Cuiyan Technology Co., Ltd is your reliable source for advanced pilot scale mixer settlers designed to meet rigorous industry standards. For personalized consultation and purchase inquiries regarding pilot scale mixer settlers, contact us at wangzhijun@cuiyan-tec.com. Our team is ready to provide customized solutions tailored to your production demands.
