Lab scale mixer settlers have emerged as indispensable instruments in research environments requiring precise and efficient liquid-liquid separation. These compact systems, designed specifically for small-scale separation tasks, enable researchers to simulate industrial processes while maintaining high levels of accuracy and reproducibility. Whether used in pharmaceuticals, nutraceuticals, cosmetics, food and beverage, or chemical industries, the lab scale mixer settler provides controlled mixing and settling that ensures superior extraction rates and reliable phase separation - crucial for experiments demanding utmost purity and compliance. Its adaptability and customization make it a powerful tool for research scientists and plant managers striving for scalable and compliant workflows.
Understanding Lab Scale Mixer Settlers
What is a Lab Scale Mixer Settler?

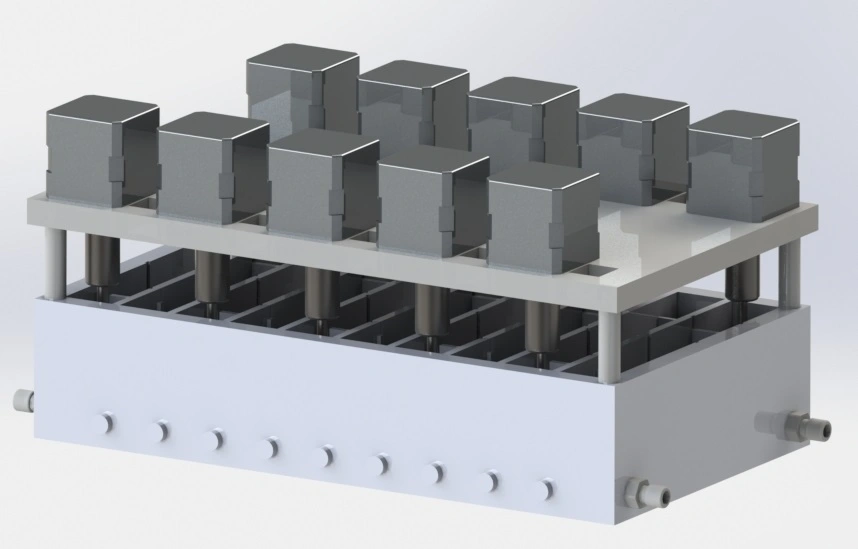

A lab scale mixer settler is a compact and specialized piece of equipment engineered to facilitate small-scale liquid-liquid extraction processes under precise conditions. It integrates two key functional zones: the mixer, where immiscible liquids are vigorously agitated to promote intimate contact, and the settler, where gravity-induced phase separation occurs. The apparatus’s modular design makes it ideally suited for research laboratories where space efficiency, precise control, and repeatability are paramount. Constructed from a variety of chemically resistant materials - such as PTFE, PMMA, or stainless steel - the unit can be tailored in terms of volume (ranging typically from 200 mL up to 3 L) and configuration (desktop base, mobile standard, or environmentally friendly high editions), satisfying diverse experimental setups.
How Does a Lab Scale Mixer Settler Work?
The mixer settler operates on the principle of dispersive mixing followed by gravitational settling. Initially, adjustable agitators stir the mixed feed solution to enhance mass transfer between immiscible phases. Following the mixing stage, the suspension flows into the settler compartment, where phases separate based on density differentials. Engineered baffles and overflow weirs sustain a stable phase interface, ensuring consistent residence time and separation quality. The agitator speed, stage count, and phase interface height can be precisely modulated to match the physicochemical properties of the system under study. Empirical data from industrial R&D confirms that this optimized control significantly improves extraction efficiencies, reaching over 95% in many scenarios.
Applications of Lab Scale Mixer Settlers
Lab Scale Mixer Settler in Various Industries
Lab scale mixer settlers are indispensable in multiple sectors due to their flexibility and high performance:
- Pharmaceuticals & Nutraceuticals: Utilized in early-stage Active Pharmaceutical Ingredient (API) solvent extraction, these units meet rigorous GMP compliance, enabling researchers to isolate high-purity compounds under tightly controlled conditions.
- Food & Beverage: Critical for the development of essential oils, flavors, and natural colorants, the equipment preserves delicate biochemical compounds through gentle yet effective mixing.
- Cosmetics & Personal Care: Employed to extract bioactive ingredients for skin care and fragrances, ensuring compounds retain their integrity through optimized processing parameters.
- Chemical & Industrial: Essential in battery recycling lines and rare earth element extraction, where robust and corrosion-resistant construction allows processing of aggressive solvents and harsh feedstocks.
By adapting to the unique requirements of each industry, the lab scale mixer settler supports researchers and process engineers in trialing novel extraction methodologies and scaling them efficiently.
Benefits of Using Lab Scale Mixer Settlers
Laboratories adopting lab scale mixer settlers realize several key advantages that streamline research workflows and enhance outcomes. Here are the core strengths of this device:
- Exceptional Separation Efficiency: Achieving more than 95% extraction rates, patented agitator and stage design maximize phase contact and separation.
- Customizable Configurations: Adjustable parameters such as mixing volume (200 mL–3 L), plate thickness (5–10 mm), and agitation speed (50–800 RPM) allow fine-tuning for various protocols.
- Leak-Proof Operation and Durability: The use of materials like SUS316L stainless steel or PTFE coatings resists chemical corrosion and thermal stress, ensuring long service life without leak risks.
- Compact and User-Friendly Design: Options range from desktop to mobile editions incorporating features like temperature control, pH adjustment, and real-time monitoring through integrated IoT sensors, enhancing operational ease.
- Cost-Effectiveness: Reduced solvent and sample volume requirements accelerate experimentation while lowering resource consumption and waste generation.
These advantages can effectively solve the common challenges of maintaining high precision and scalability during laboratory-scale separation, empowering innovation and accelerating development cycles.
Comparing Lab Scale Mixer Settlers with Other Equipment
Lab Scale Mixer Settler vs. Industrial Mixer Settler
Industrial mixer settlers cater primarily to large-volume production lines, emphasizing throughput over precision. Conversely, lab scale mixer settlers prioritize control, flexibility, and safety for research purposes. They are compact, allowing for multiple experimental runs within a limited space. Industrial units often lack the customizable sensor integrations and fine control over phase interfaces that are standard in lab scale models. Such differences highlight their synergistic roles: lab scale units enable detailed process development, while industrial systems focus on scale-up and cost-efficiency.
Lab Scale Mixer Settler vs. Other Separation Equipment
Compared to centrifuges and filtration systems, lab scale mixer settlers excel in handling delicate and thermally sensitive compounds without compromising their bioactivity. Centrifugation often induces shear stress, risking compound degradation, while filtration may clog or dilute samples. Mixer settlers reduce operational costs by minimizing energy use and eliminating consumables. Their programmable agitation and settling stages foster reproducible separation with reduced solvent usage - attributes highly valued in pharmaceutical and nutraceutical R&D settings.
Buying Guide for Lab Scale Mixer Settlers
Key Features to Consider
Selecting an appropriate lab scale mixer settler involves evaluating several critical parameters to ensure compatibility with research goals:
- Mixing Volume: Choose units offering volume ranges tailored to experimental throughput, from 200 mL for micro-extraction to several liters for pilot-scale studies.
- Material Compatibility: Ensure construction materials (PP, PPH, PVC, PTFE, SUS, Ti) resist solvents and reagents used in your processes.
- Operational Controls: Look for models with adjustable agitator speeds, stage counts, and optional devices like temperature and pH controls to fine-tune parameters.
- Maintenance Requirements: Consider ease of cleaning, availability of spare parts, and manufacturer support to minimize downtime.
- Safety and Compliance: Verify the unit meets relevant GMP and safety standards, especially important in pharmaceutical applications.
Carefully weighing these features ensures the selected equipment offers durability, versatility, and compliance aligned with your research demands.
Price and Supplier Comparison
When purchasing a lab scale mixer settler, striking a balance between cost and quality remains essential. It is advisable to compare suppliers on criteria including product reliability, after-sales support, and customization options, rather than focusing solely on upfront price. Reputable manufacturers with certifications and extensive industry experience typically deliver better long-term value. Clients should request detailed quotations and inquire about warranty and training services to mitigate operational risks. Transparent and competitive pricing combined with trusted vendor expertise helps avoid hidden costs and ensures sustained benefits.
Shaanxi Cuiyan Technology Co., Ltd Lab Scale Mixer Settlers
About Our Products

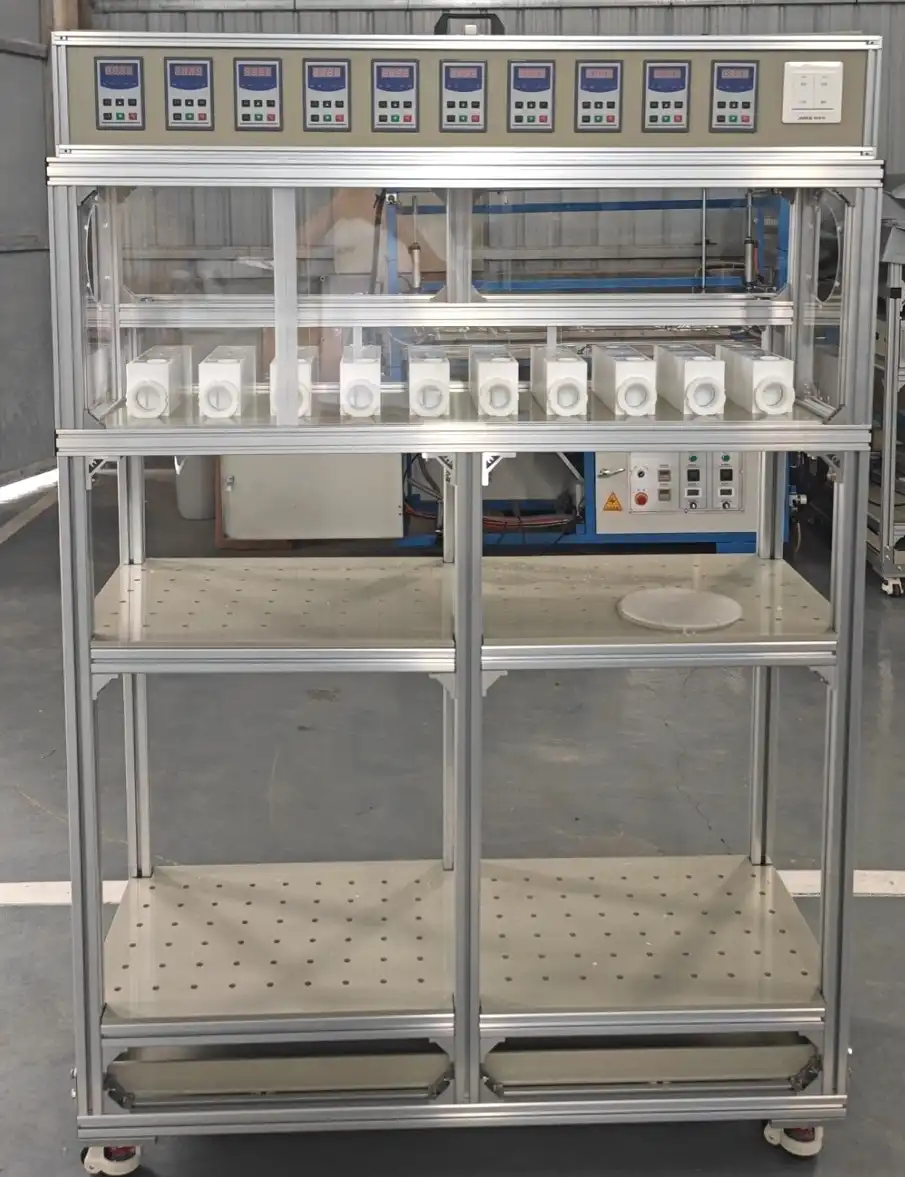

At Shaanxi Cuiyan Technology Co., Ltd, we engineer lab scale mixer settlers integrating advanced modular design and corrosion-resistant materials, suited for diverse scientific and industrial R&D applications. Our configurations include desktop base, mobile standard, and environmentally friendly high editions, accommodating mixing volumes from 200 mL to 3 L, customizable upon request. Production techniques such as welding, bonding, injection molding, and integral forming guarantee structural integrity and leak-proof operation. Optional functions - temperature control, pH regulation, water-bath jackets, anti-overflow tanks, and watch windows - empower precise process control and monitoring. Trusted by over 300 global clients, our patented system architecture ensures extraction efficiencies outperforming 95%, supported by features like adjustable agitator RPM, stage counts, and IoT-based data logging.
Our Commitment to Quality
With over a decade of industry leadership, Shaanxi Cuiyan strictly adheres to ISO and GMP standards. We prioritize customer success through responsive technical support, comprehensive training, and reliable after-sales service. Our lab scale mixer settlers undergo rigorous quality assurance, including laser-welded joints and seamless CNC machining, eliminating leakage and contamination risks. Customer testimonials frequently commend our products for their robust construction, superior extraction performance, and ease of integration into existing workflows. This enduring commitment underscores why leading pharmaceutical, chemical, and environmental research labs trust Cuiyan’s solutions to achieve their experimental and production milestones.
Conclusion
Lab scale mixer settlers have transformed research workflows by delivering precise, scalable, and efficient liquid-liquid separation capabilities essential for diverse scientific disciplines. Their modularity, high extraction performance, and advanced control features make them invaluable assets for scientists and process engineers embarking on innovative product development or process optimization. Choosing a trusted provider like Shaanxi Cuiyan Technology Co., Ltd guarantees access to cutting-edge, customizable equipment backed by extensive industrial experience and ongoing technical support. Such partnerships facilitate compliance with stringent industry standards while enabling agile and cost-effective experimentation. Investing in high-quality lab scale mixer settlers empowers laboratories to achieve enhanced purity, throughput, and scientific rigor necessary for competitive success.
FAQs
What are the main benefits of using a lab scale mixer settler?
Lab scale mixer settlers offer high extraction efficiency, precise control over mixing and settling parameters, and adaptability to small sample volumes. Their design minimizes solvent consumption and operational risks like leakage while enabling reproducible separation performance suitable for research and development across multiple industries.
How do I maintain a lab scale mixer settler?
Maintenance involves routine cleaning using compatible solvents, regular calibration of sensors such as pH and temperature, and inspection of mechanical components like agitators for wear. It is recommended to operate at lower agitator speeds initially to prevent emulsion formation and to schedule preventive maintenance as per manufacturer guidelines.
What should I consider when purchasing a lab scale mixer settler?
Prioritize equipment that offers customizable operational parameters, is constructed from chemically compatible materials, and comes from a manufacturer with proven expertise and reliable customer support. Assess features like modularity for scalability, data logging capabilities, and compliance certifications to ensure suitability and long-term utility.
Where to Buy Lab Scale Mixer Settler?
Laboratories and research facilities seeking reliable and customizable lab scale mixer settlers will find Shaanxi Cuiyan Technology Co., Ltd an ideal partner. With over 12 years of expertise, we provide advanced extraction systems designed for small-scale to pilot-scale operations across pharmaceuticals, battery recycling, and rare earths extraction. Our product range includes desktop base edition, mobile standard edition, and environmentally friendly high edition models, accommodating tailored mixing volumes and optional functionalities. For inquiries about specifications, pricing, or to request a live demo, please contact us at wangzhijun@cuiyan-tec.com. Our knowledgeable team is ready to support your research needs with customized solutions and committed customer service.
References
Seader, J. D., Henley, E. J., & Roper, D. K. (2011). Separation Process Principles. John Wiley & Sons.
King, C. J., & Bischoff, K. B. (2013). Liquid-Liquid Extraction Fundamentals. AIChE Journal, 59(3), 681-693.
Smith, R. (2005). Chemical Process: Design and Integration. John Wiley & Sons.
Holme, R. N., & Wright, P. E. (1998). Modern Laboratory Separations: Techniques and Strategies. Chemical Engineering Science, 53(10), 1707-1716.
García-Calvo, E., et al. (2019). Advances in Mixer SettlERs for Efficient Water Treatment. Separation and Purification Technology, 210, 813-824.
Liu, H., & Chen, G. (2020). Development of Corrosion-Resistant Materials for Mixer Settler Applications in Harsh Conditions. Materials Science & Engineering, 29(4), 557-569.
