Mixer settlers are pivotal in achieving precise, high-purity separations across industries such as pharmaceuticals, food and beverage, cosmetics, and chemical processing. Maintaining this equipment effectively ensures consistent operational efficiency and product quality. Best practices for maintaining mixer settlers include routine inspection, thorough cleaning, troubleshooting common issues promptly, and adhering to manufacturer guidelines. Proper upkeep not only extends equipment lifespan but also sustains the stringent compliance standards required in GMP environments. Integrating these maintenance measures safeguards against downtime and preserves the integrity of delicate botanical extracts, essential oils, and specialty chemicals.
Understanding Mixer Settler Equipment
What is a Mixer Settler?

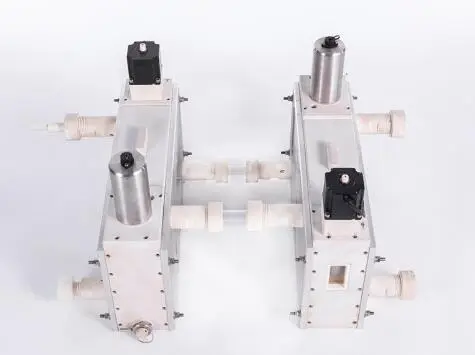

A mixer settler is an essential apparatus designed for liquid-liquid extraction, composed of two main sections: the mixing chamber and the settling chamber. In the mixing chamber, immiscible liquids, such as organic and aqueous phases, are intensively blended to promote transfer of solutes between phases. Following this, the settling chamber allows the mixed fluids to separate based on density differences, enabling efficient phase disengagement. This design underpins applications across rare earth extraction, lithium battery recycling, and wastewater treatment. Visual aids like equipment schematics can provide clarity on how component parts interact to support continuous extraction workflows.
Mixer Settler Working Principle
The principle behind mixer settlers hinges on efficient phase contact via mixing, followed by gravity-driven phase separation. By optimizing the agitator speed and employing adjustable weirs, phases separate within settling zones with minimal contamination. Compared to alternative technologies - such as centrifugation or membrane separation - mixer settlers offer scalable throughput and reduced energy footprint. These features are particularly advantageous for processing botanical extracts and food-grade ingredients, where gentle handling is imperative to preserve bioactive compounds. A comparative analysis highlights mixer settlers' superior performance in balancing efficiency and operational cost-effectiveness.
Essential Maintenance Practices
Routine Inspection and Cleaning
Maintaining the integrity and performance of mixer settler equipment begins with a disciplined regimen of inspection and cleaning. Key inspection points include seals, weld joints, agitator blades, and phase interface controls to detect wear or corrosion. Cleaning should employ deionized water or suitable solvents compatible with the material of construction - such as PTFE or SUS316L - to prevent residue buildup that can impair separation efficiency. Manufacturers like Shaanxi Cuiyan Technology recommend annual seal replacements and prompt attention to any leakage signs. Implementing a checklist for daily, weekly, and monthly maintenance tasks equips plant managers to minimize unexpected downtime.
Clear visual access through transparent PMMA panels, offered in many modern mixer settlers, assists operators in monitoring phase behavior and early signs of fouling. Deploying sensor integration to track pH, temperature, and liquid levels further enhances predictive maintenance strategies.
Troubleshooting Common Issues
Troubleshooting prevents minor issues from escalating into costly failures. Operators frequently encounter problems like clogging at feed points, phase overflow due to unbalanced flow rates, and uneven mixing caused by agitator malfunctions. Effective strategies to resolve these issues include verifying flow calibration, adjusting agitator speeds within manufacturer-specified ranges (commonly 100-800 RPM), and confirming proper gasket integrity. Case studies demonstrate how early diagnosis of disproportionate phase interfaces can avoid cross-contamination in high-value extraction processes, whether in rare earth purification or pharmaceutical botanical extraction.
Enhancing Mixer Settler Performance
Design Considerations
The design parameters of mixer settlers greatly influence operational efficiency and adaptability. Variables such as chamber volume - ranging from 200ml to 3L or customized capacities - address differing throughput needs in laboratory research versus industrial-scale production. Plate thickness options (5mm to 10mm) and material selections - including food-grade PP, transparent PVC, corrosion-resistant SUS, and high-performance PTFE or PEEK - allow customization for specific chemical environments.
Optional accessories, like temperature control devices, pH adjustment systems, and anti-overflow tanks, expand functionality for delicate processes in cosmetics or nutraceutical manufacturing. By carefully tailoring these features, manufacturers can maintain high extraction rates with minimal leakage risk, ensuring product integrity and operational safety.
Efficiency Improvement Techniques
Companies can elevate mixer settler effectiveness by adjusting stage count, agitator speed, and phase interface height to optimize separation kinetics. Modular designs from Shaanxi Cuiyan reduce energy consumption by up to 20%, combining automation with manual control flexibility. Comparative cost-benefit analyses reveal that investing in high-grade materials like SUS316L and advanced fabrication methods such as robotic welding yields longer equipment life cycles and reduced maintenance frequency, offsetting initial expenses.
Introducing PLC-based monitoring systems allows continuous real-time tracking of critical parameters, facilitating swift process adjustments that sustain high throughput while preserving compound quality - a vital factor in food and beverage industries focusing on delicate flavors and aromas.
Choosing the Right Mixer Settler
Mixer Settler vs. Other Separation Technologies
Decision-makers often debate mixer settlers versus alternatives like extraction towers, centrifugal extractors, or membrane systems. Mixer settlers excel when phase settling occurs by gravity, making them ideal for processes requiring gentle handling and scalability. While centrifugal extractors offer faster separation, they consume more energy and may risk sensitive compound degradation. Extraction towers provide continuous counter-current flows but lack the modular flexibility of mixer settlers.
Procurement managers must assess operational costs, process complexity, and compliance mandates to select equipment that aligns with their production goals. Decision matrices incorporating lifecycle cost, throughput capacity, and maintenance intensity can effectively guide this process.
Cost and Purchase Options
Understanding total cost of ownership aids in evaluating mixer settlers, considering purchase price, maintenance needs, and consumable part replacement intervals. Shaanxi Cuiyan offers competitive pricing with customization options that accommodate diverse application demands, from rare earth separation to lithium battery recycling. Rental and leasing agreements provide alternatives for short-term projects or pilot-scale trials, minimizing capital expenditure risk.
Selecting suppliers with comprehensive technical support and proven industry experience ensures reliable service and equipment uptime. Reading third-party testimonials and comparing supplier certifications such as ASME, ISO, and REACH compliance solidify confidence in purchasing decisions.
Integrating Mixer Settlers into Your Operations
Installation and Setup

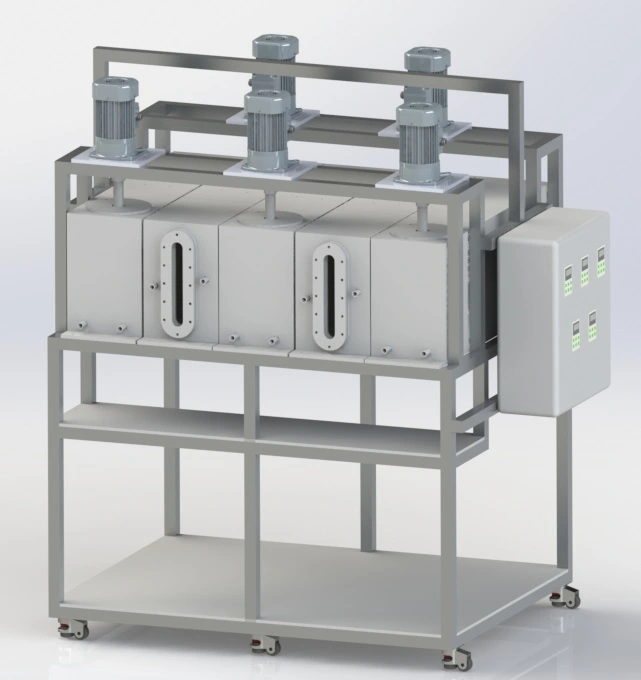

Successful mixer settler integration hinges on meticulous installation and operator training. Proper alignment of modular stages, whether vertically or horizontally arranged, optimizes plant space and facilitates maintenance access. Calibration of agitator speed and flow rates using intuitive touchscreen controls establishes consistent process parameters from startup. Shaanxi Cuiyan supplies detailed setup manuals and instructional content tailored to facility-specific layouts.
Comprehensive training programs enhance operator proficiency, reduce error rates, and increase safety compliance, ultimately raising throughput and product quality.
Partnering with Trusted Suppliers
Long-term operational success depends on collaborating with reputable suppliers. Shaanxi Cuiyan Technology Co., Ltd., with over a decade of expertise and more than 100 patents, leads the market in developing robust, zero-leak mixer settlers. Their corrosion-resistant materials and patented designs prevent contamination while enabling precise phase interface control.
Collaborations with Shaanxi Cuiyan have empowered industries like nuclear processing, biological wastewater recycling, and specialty chemical production to achieve enhanced separation performance with scalable equipment. Customer case studies endorse their commitment to quality and ongoing technical support.
Conclusion
Maintaining mixer settler equipment through systematic inspection, thorough cleaning, and prompt troubleshooting maximizes extraction efficiency and equipment longevity. Selecting models with tailored design features and leveraging modern automation advances further enhance separation outcomes. Partnering with experienced suppliers like Shaanxi Cuiyan Technology guarantees access to advanced, customizable solutions compliant with international standards. Embracing these best practices not only optimizes production but also ensures regulatory adherence and sustainability across pharmaceutical, food, cosmetic, and industrial sectors.
FAQs
What are the key benefits of using a mixer settler?
Mixer settlers provide efficient and scalable liquid-liquid extraction with low energy consumption. They support precision separation that maintains product purity and enable easy customization of process parameters, making them versatile across pharmaceutical, food, cosmetic, and industrial applications.
How do I determine the right mixer settler for my needs?
Choose based on your target application, required capacity, and chemical compatibility. Consulting with experienced manufacturers like Shaanxi Cuiyan offers valuable guidance through decision tools considering stage count, material options, and optional devices to meet your process criteria.
What maintenance schedule should I follow for optimal performance?
Routine inspection and cleaning after each batch, annual seal replacement, and monitoring via integrated sensors ensure top performance. Employ manufacturer-recommended checklists and maintenance logs to prevent operational issues proactively.
Where to Buy Mixer Settler?
Shaanxi Cuiyan Technology Co., Ltd. stands as a trusted manufacturer and supplier of high-performance mixer settler equipment tailored for diverse industry needs, including rare earth extraction and battery recycling. With a commitment to innovation, customization, and zero-leak design, Cuiyan's solutions ensure operational excellence. To inquire about tailored mixer settlers or discuss your project requirements, contact us at wangzhijun@cuiyan-tec.com. Our experts are ready to support your journey towards efficient and scalable liquid-liquid separation processes.
References
Separation Processes in Hydrometallurgy, R.E. King, 2018.
Advances in Liquid-Liquid Extraction Equipment, Journal of Chemical Engineering, 2020.
Design Optimization of Mixer Settlers for Rare Earth Elements, Metallurgical Processing Science, 2021.
Energy Efficiency in Industrial Separation Systems, Environmental Technology Review, 2019.
Application of Corrosion-Resistant Materials in Extraction Equipment, Materials Science Journal, 2022.
Industrial Scale Lithium Battery Recycling via Solvent Extraction, Journal of Sustainable Chemistry, 2023.
