Pilot Extraction Tank

Shaanxi Cuiyan: Your Trusted Pilot Extraction Tank Manufacturer & Supplier

Shaanxi Cuiyan Technology Co., Ltd: A trusted pilot extraction tank manufacturer & supplier since 2012, we combine 12+ years of expertise in modular design, automation integration, and custom solutions. With 37+ specialists and 9 patented innovations, our equipment ensures seamless scalability from lab to industrial production.

Pilot Extraction Tank Description

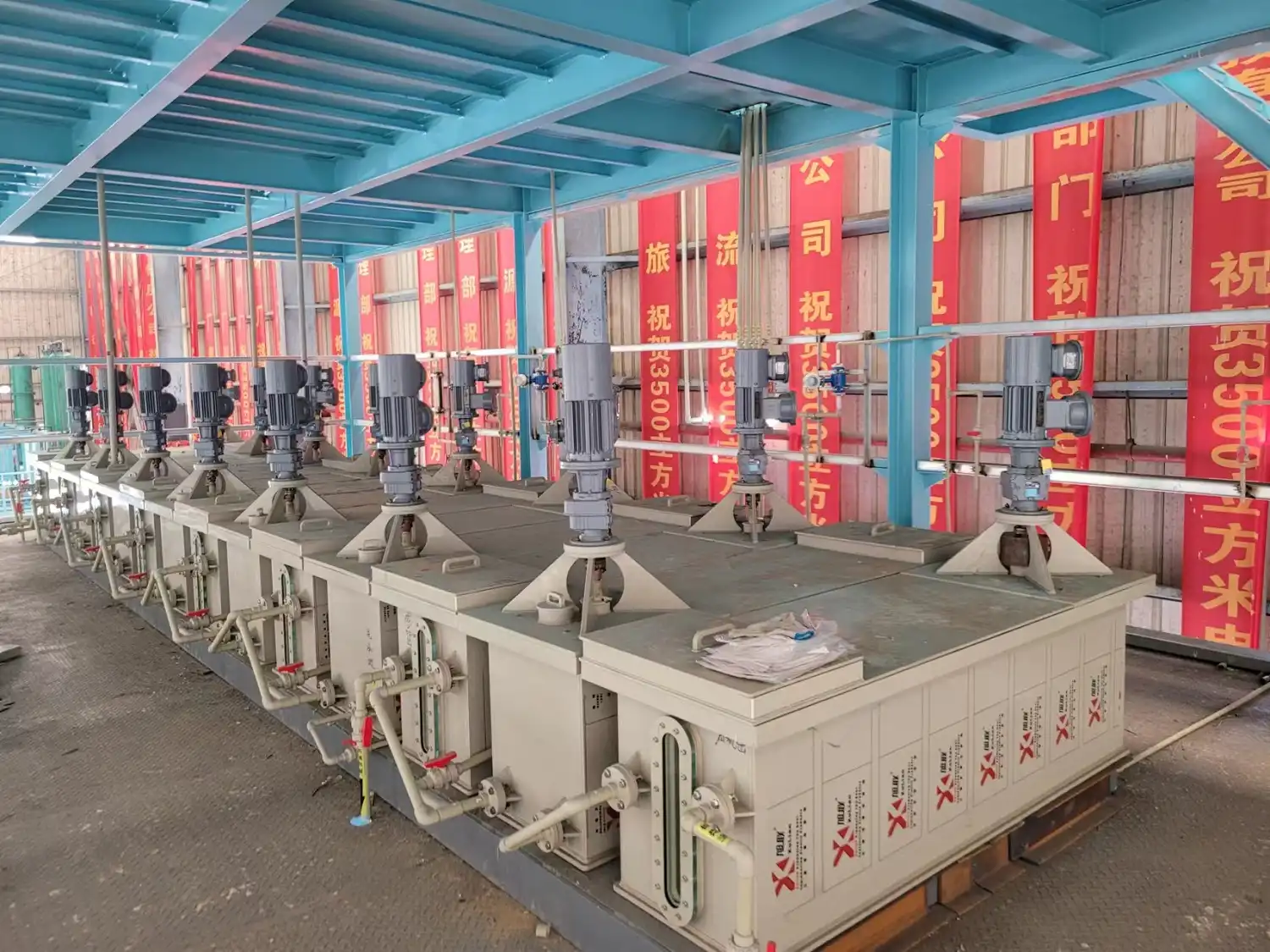

Our pilot extraction tank bridges the gap between R&D and full-scale production, offering unmatched flexibility for industries like pharmaceuticals, rare metals, and environmental tech.

Specifications

Why Choose Our product?

1. Adaptable Design: Adjust mixer-settler stages, agitator speed, and phase interface height for diverse processes.
2. Zero-Leak Guarantee: High corrosion-resistant materials (PP/PVC) ensure durability in harsh chemical environments.
3. Smart Automation: Integrate sensors (temperature, pH, liquid level) for precise control and data tracking.
4. Scalable Solutions: Modular structure supports rapid installation, expansion, or process changes.
5. Energy Efficiency: 30% lower energy use vs. traditional tanks, aligning with green manufacturing goals.

Material & Processing

• PP/PVC/PMMA: Ideal for acidic/alkaline media, offering transparency (optional) for real-time monitoring.

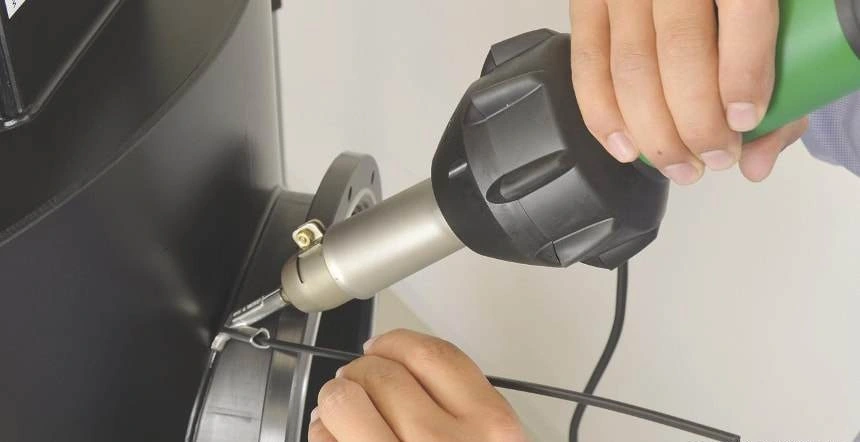

• Laser-Cut Welding: Ensures leak-proof joints and structural integrity under high stress.

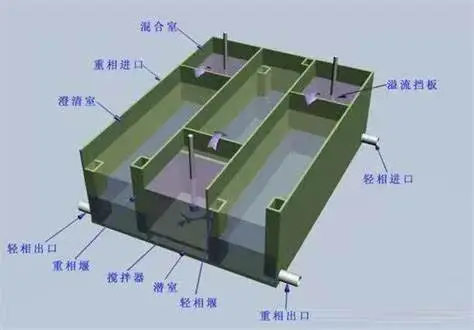

How It Works

1. Mixing Phase: Agitators blend two-phase liquids (organic/aqueous) for optimal mass transfer.
2. Settling Phase: Low-turbulence design accelerates phase separation.
3. Extraction: Adjustable weirs control interface levels, maximizing yield.

Key Applications

• Pharma/Biotech: Active pharmaceutical ingredient (API) purification.
• Rare Earth Metals: Lithium, cobalt, nickel recovery from batteries.
• Environmental: Heavy metal removal from wastewater.

User Guide

1. Pre - Installation
   Before installation, a meticulous check for material compatibility with your process media is crucial. Different chemicals and substances can react with the materials of the equipment, leading to corrosion, degradation, or leaks. Analyze the chemical composition of your process media, including pH levels, presence of solvents, and potential reactive elements. Compare these characteristics with the material properties of the Pilot Extraction Tank, such as the type of metal, plastic, or rubber used. This verification ensures that the equipment will function optimally and have a long - lasting performance without being compromised by chemical interactions.
2. Operation
   During operation, calibration of sensors and setting the agitation speed via the touchscreen is a straightforward yet essential task. Sensors, which monitor variables like temperature, pressure, and flow rate, need to be calibrated regularly to provide accurate data. Using the user - friendly touchscreen interface, input the appropriate calibration values based on reference standards. Simultaneously, adjust the agitation speed according to the requirements of your process. Whether it's a gentle mixing for delicate substances or a high - speed agitation for more viscous materials, the touchscreen allows for precise control, ensuring efficient and effective operation.
3. Maintenance
   Monthly maintenance involving the inspection of seals and agitator bearings is vital for the smooth running of the equipment. Seals prevent leaks, safeguarding the integrity of the process and protecting the environment from potential spills. Check for signs of wear, such as cracks, swelling, or reduced elasticity. Agitator bearings, on the other hand, support the rotation of the agitator. Inspect for any abnormal noise, excessive heat, or play in the bearing. Lubricate the bearings if necessary. Regular maintenance helps detect and address issues early, preventing major breakdowns and extending the lifespan of the Pilot Extraction Tank.

FAQ

Q: Can the tank handle high-viscosity fluids?
A: Yes! Our helical agitators ensure uniform mixing even for viscosities up to 10,000 cP.

Q: Is the equipment GMP-compliant?
A: We offer ISO 9001-certified models with documentation for regulatory audits.

Q: What's the lead time for a custom design?
A: 4–6 weeks for most configurations.

Q: Can we upgrade to industrial-scale later?
A: Absolutely—our modular tanks allow seamless capacity expansion.

Q: Do you provide on-site training?
A: Yes, free startup training and 24/7 remote support.

Contact Us

Email us at wangzhijun@cuiyan-tec.com to discuss our Pilot Extraction Tank. With 300+ global clients and 10,000+ stages delivered, we'll optimize your extraction process from bench to plant.
