Role of Mixer Settlers in Large-Scale Industrial Extraction Projects
Mixer settlers play a crucial role in large-scale industrial extraction projects, offering efficient and reliable separation of immiscible liquids. These versatile devices combine mixing and settling stages to achieve high extraction rates and perfect separation effects. With their ability to handle various materials and adapt to different process requirements, mixer settlers have become indispensable in industries ranging from rare earth extraction to nuclear processing. Their modular design, customizable workflows, and energy-efficient operation make them an ideal choice for complex separation tasks in modern industrial settings.
Fundamentals of Mixer Settler Technology
Design Principles and Components

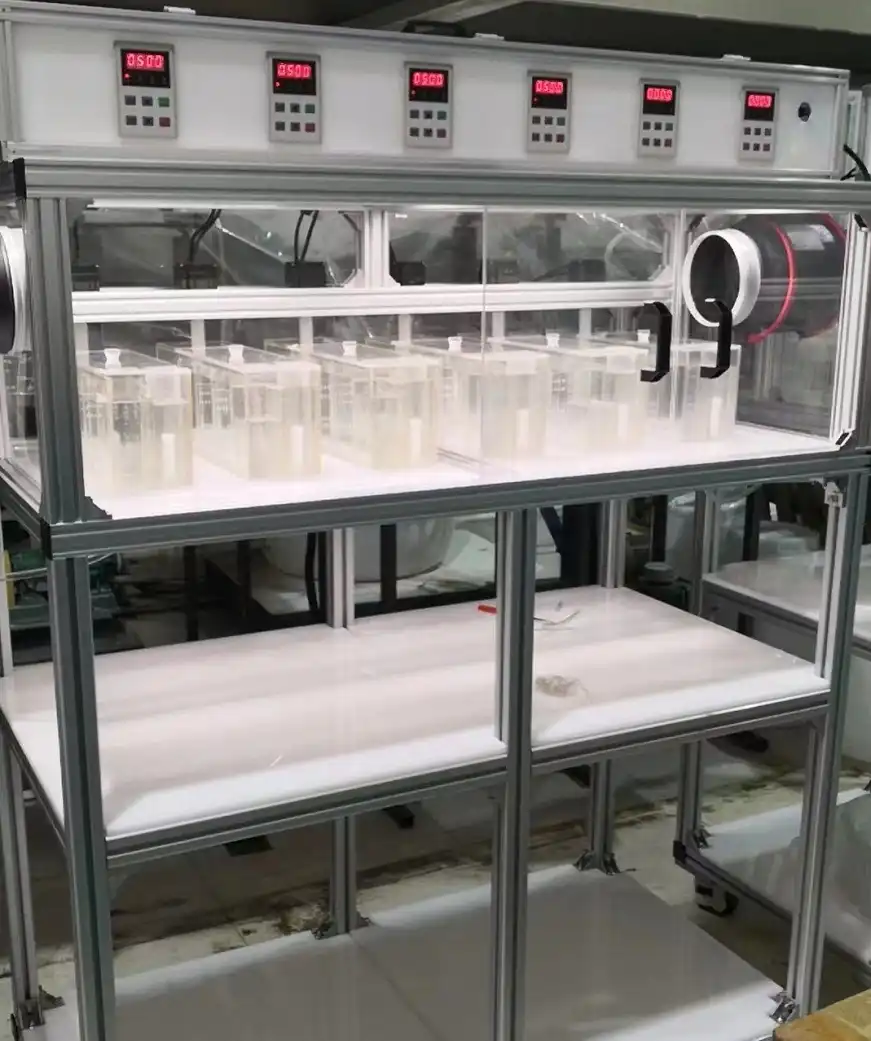

Mixer settlers are engineered to optimize liquid-liquid extraction processes. The core components include a mixing chamber where immiscible phases are blended, and a settling zone for gravity-driven phase separation. Advanced designs incorporate baffles to prevent bubbling and ensure stable phase interfaces. Materials such as PP, PVC, and PTFE are chosen for their corrosion resistance, while transparent PMMA allows real-time monitoring of mixing dynamics.
Operational Mechanics
The operation of mixer settlers revolves around two key stages. In the mixing phase, an agitator blends the organic and aqueous phases, facilitating mass transfer between them. The settling stage then allows gravity to separate the phases, guided by adjustable weirs. This continuous flow process can be customized by adjusting agitator speed, phase interface height, and the number of stages to achieve optimal extraction efficiency.
Advantages in Industrial Applications
Mixer settlers offer several advantages for large-scale projects. Their modular design allows for easy scalability and maintenance. The zero-leak construction, achieved through seamless welding and PTFE seals, eliminates contamination risks. Energy efficiency is improved by 15-20% compared to traditional models, thanks to the optimized design. Additionally, the ability to integrate sensors for pH, temperature, and liquid level monitoring enhances process control and automation capabilities.
Applications in Diverse Industries
Rare Earth Element Extraction
In the critical field of rare earth element extraction, mixer settlers excel at separating valuable elements like neodymium and dysprosium. The multi-stage setup allows for precise control over the extraction process, enabling high purity levels essential for advanced technology applications. This capability is particularly important as industries seek to secure domestic sources of these strategic materials.
Battery Material Recycling
With the growing electric vehicle market, battery recycling has become a key focus. Mixer settlers are instrumental in recovering lithium and cobalt from spent batteries. The ability to handle corrosive media and achieve high separation efficiencies makes them ideal for this application. By enabling efficient recycling processes, mixer settlers contribute to sustainable resource management in the battery industry.
Nuclear Fuel Processing
In the highly specialized field of nuclear fuel processing, mixer settlers play a critical role in uranium and plutonium separation. The precision and reliability of these devices are essential for maintaining strict safety and non-proliferation standards. The customizable nature of mixer settlers allows for the development of tailored processes that meet the exacting requirements of nuclear applications.
Optimizing Performance in Large-Scale Projects
Customization and Scaling Strategies
Large-scale industrial projects often demand highly tailored solutions, and mixer settlers can be customized extensively to address these requirements. Options include selecting corrosion-resistant alloys for harsh chemical environments, adapting chamber dimensions to accommodate greater throughput, and modifying impeller designs for improved mass transfer efficiency. Scaling strategies allow systems to be expanded modularly, ensuring flexibility for both current and future production needs. This adaptability ensures that mixer settlers deliver optimal performance, reliability, and efficiency across a broad range of industrial extraction processes.
Integration with Process Control Systems

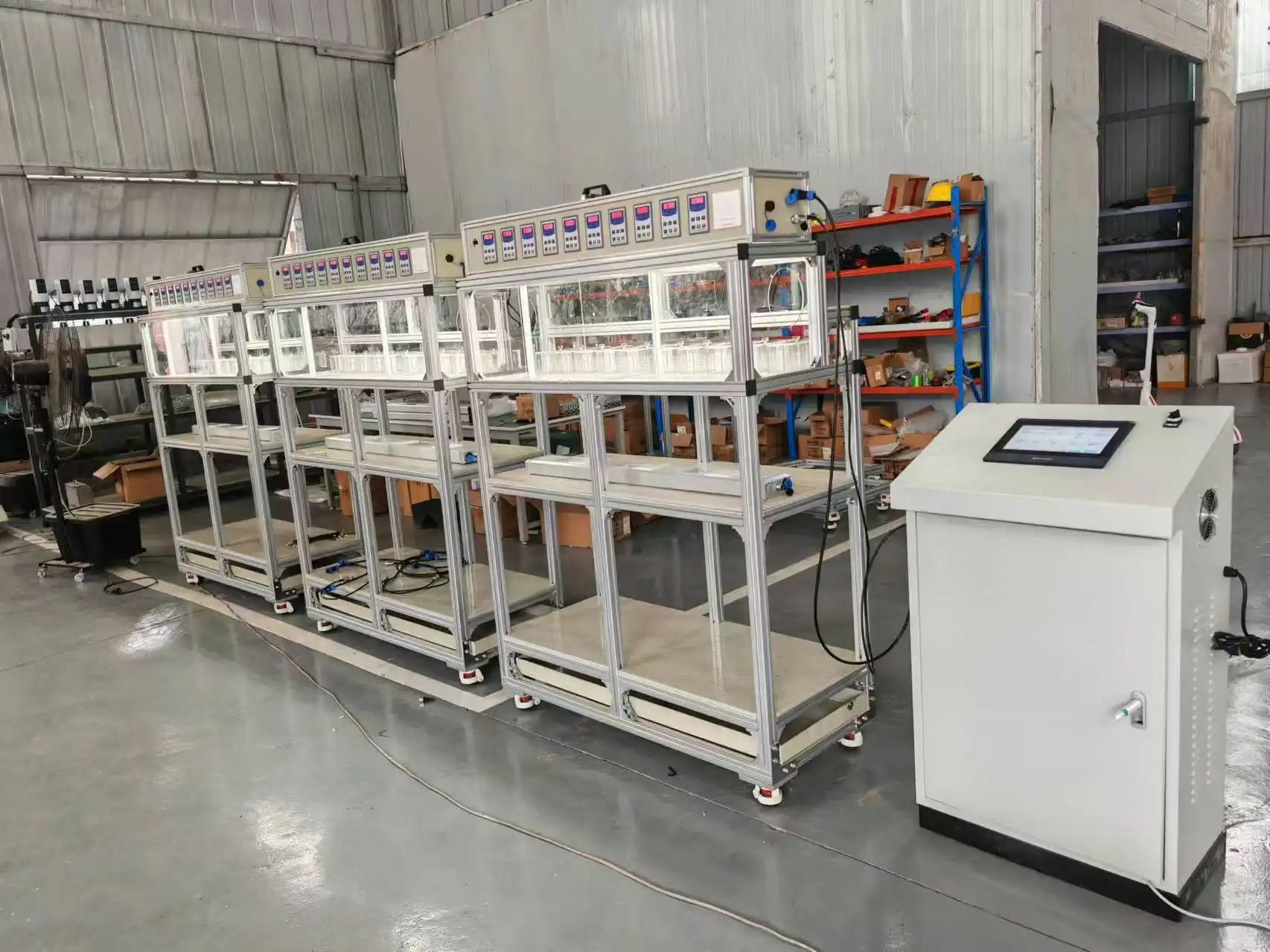

The integration of modern mixer settlers with advanced process control systems significantly enhances operational efficiency in large-scale projects. Through real-time monitoring, operators can track and adjust parameters such as flow distribution, mixing intensity, and phase separation performance. Data collected from embedded sensors supports automated feedback loops, predictive analytics, and remote supervision. This level of integration not only maximizes product quality and extraction yield but also reduces the risk of process variability. Consequently, projects benefit from higher efficiency, consistent output, and streamlined overall plant operation.
Maintenance and Longevity Considerations
Long-term reliability of mixer settlers in large-scale projects depends heavily on structured maintenance and careful equipment management. Recommended practices include routine cleaning using deionized water, annual seal and gasket replacement, and periodic inspection of internal components for signs of wear or corrosion. The robust design and use of high-grade construction materials enhance durability, reducing the likelihood of premature failure. Furthermore, modular design features provide straightforward access to critical parts, enabling efficient upkeep with minimal operational interruptions and significantly lowering lifecycle maintenance costs.
Conclusion
Mixer settlers have proven to be invaluable assets in large-scale industrial extraction projects across various sectors. Their versatility, efficiency, and adaptability make them suitable for a wide range of applications, from rare earth element extraction to nuclear fuel processing. By offering customizable solutions, integration with modern control systems, and robust performance, mixer settlers continue to drive innovation and efficiency in industrial separation processes. As industries seek more sustainable and effective extraction methods, the role of mixer settlers in large-scale projects is set to grow even further.
