When to Use a Metal Mixer Settler for Industrial-Scale Extraction?
Metal mixer settlers are crucial equipment for industrial-scale extraction processes, particularly in hydrometallurgy and chemical processing. These devices are ideal when dealing with large volumes of liquid-liquid extraction, especially in scenarios requiring high efficiency, continuous operation, and precise control over separation processes. Optimal use cases include purification of metal solutions, recovery of rare earth elements, and separation of organic compounds. Metal mixer settlers excel in applications demanding high throughput, minimal footprint, and the ability to handle corrosive or aggressive chemicals. Their robust construction and versatility make them indispensable for industries seeking to optimize their extraction operations, improve product quality, and enhance overall process efficiency.
Understanding Metal Mixer Settlers in Industrial Extraction
Definition and Basic Principles

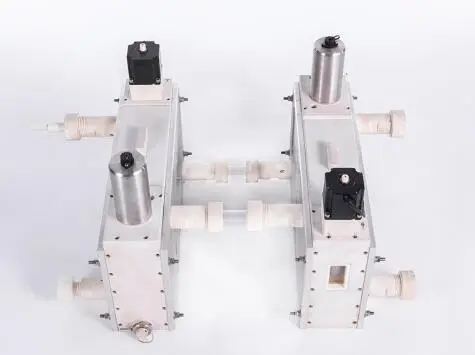

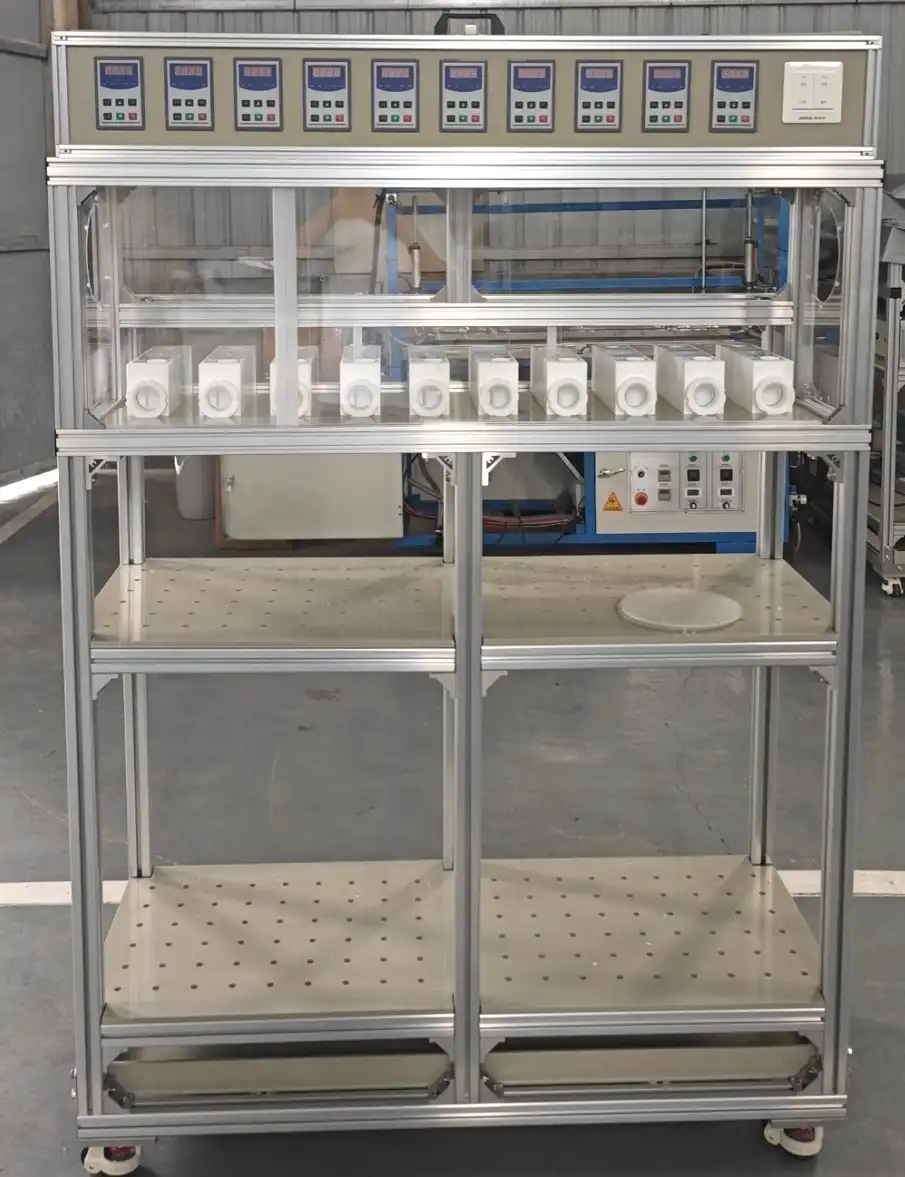

Metal mixer settlers are sophisticated extraction units designed for liquid-liquid separation on an industrial scale. These devices consist of two main components: a mixing chamber and a settling chamber. In the mixing chamber, two immiscible liquids are vigorously combined to facilitate mass transfer. The mixture then flows into the settling chamber, where gravity separation occurs, allowing the two phases to separate based on density differences.
Key Components and Design Features
The efficiency of metal mixer settlers stems from their thoughtful design. The mixing chamber typically features impellers or baffles to ensure thorough mixing. The settling chamber is engineered with specific dimensions and internal structures to promote rapid and complete phase separation. Advanced models may incorporate additional features such as coalescers or picket fences to enhance separation efficiency.
Advantages Over Other Extraction Methods
Metal mixer settlers offer several advantages compared to alternative extraction methods. They provide excellent phase separation, high throughput capacity, and the ability to handle a wide range of flow rates. Their modular design allows for easy scaling and maintenance. Additionally, these units often require less floor space than traditional extraction columns, making them ideal for facilities with spatial constraints.
Optimal Scenarios for Employing Metal Mixer Settlers
High-Volume Extraction Processes
Metal mixer settlers demonstrate exceptional efficiency in high-volume extraction operations, where maintaining continuous throughput is critical for industrial productivity. Their robust design enables round-the-clock operation with minimal downtime, making them ideal for applications requiring uninterrupted processing. Industries such as mining, petrochemicals, and pharmaceuticals rely heavily on these units to process large feed streams while ensuring consistent product quality. The ability to handle significant material volumes without compromising efficiency or stability makes metal mixer settlers a preferred solution for large-scale, resource-intensive extraction processes.
Multistage Extraction Requirements

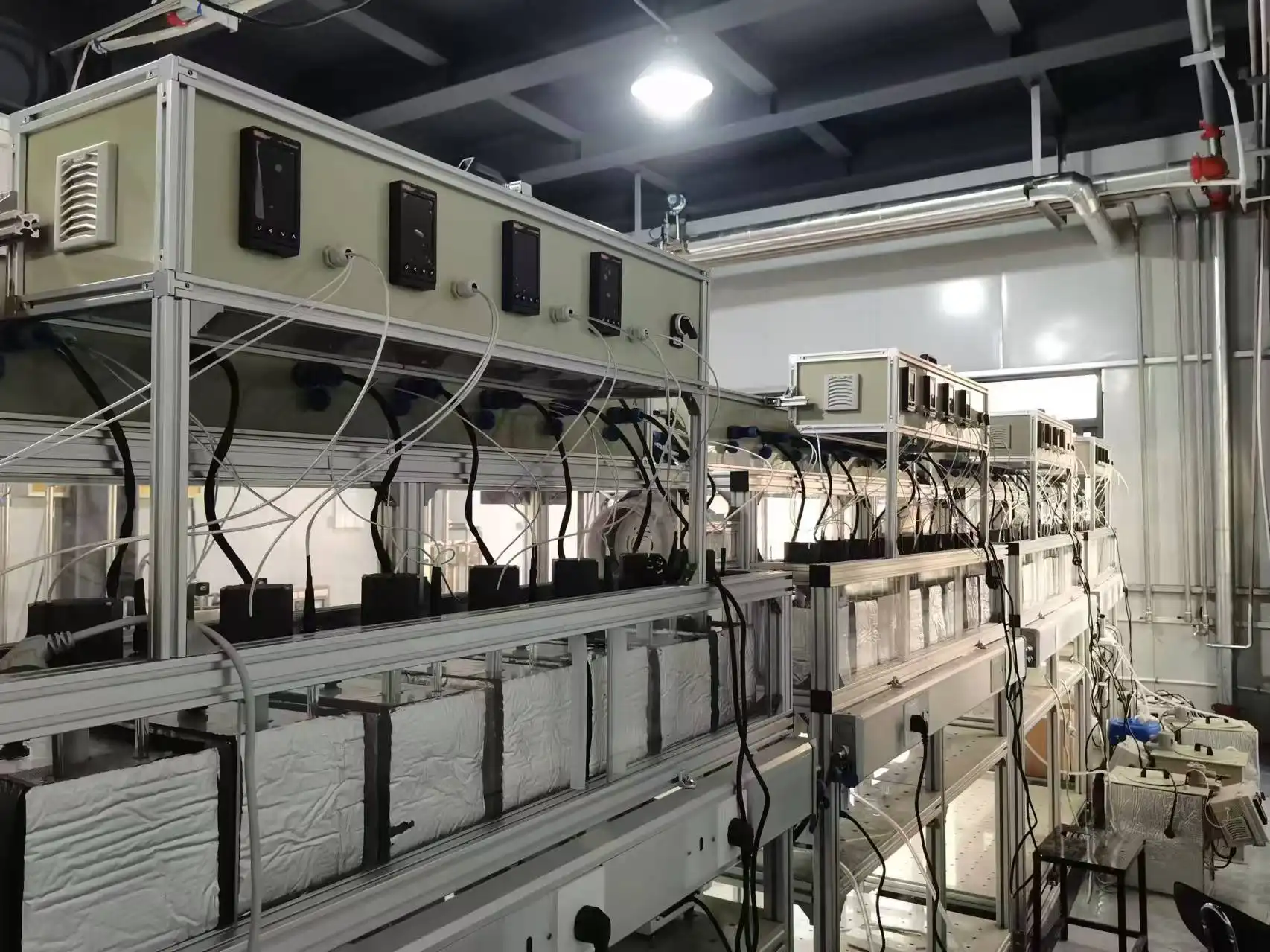

For processes demanding multiple extraction steps to achieve high purity levels or precise separations, metal mixer settlers are highly advantageous. Their modular and scalable configuration allows them to be arranged into multistage systems tailored to complex process requirements. This design flexibility supports sequential washing, stripping, and purification operations, which are often essential in rare earth element recovery or the production of high-value specialty metals. By facilitating the integration of multiple stages into a streamlined operation, metal mixer settlers enhance separation efficiency, reduce losses, and deliver higher product yield and quality.
Handling Corrosive or Aggressive Chemicals
Metal mixer settlers are particularly suited for applications involving corrosive or chemically aggressive environments due to their durable construction. Typically fabricated from stainless steel or advanced corrosion-resistant alloys, these units maintain structural integrity even under exposure to highly acidic or reactive chemical solutions. This capability is especially important in hydrometallurgical processes and organic synthesis, where harsh chemical conditions can rapidly degrade less robust equipment. By offering reliability, chemical resistance, and extended service life, metal mixer settlers ensure safe and efficient operation in demanding industrial applications.
Optimizing Performance and Efficiency of Metal Mixer Settlers
Process Parameter Optimization
To maximize the efficiency of metal mixer settlers, systematic optimization of process parameters is essential. Operators should carefully evaluate and adjust variables such as mixing speeds, residence times, and phase flow rates to promote efficient mass transfer and phase disengagement. Advanced monitoring tools, including online sensors and automated data acquisition systems, can be employed to continuously track performance indicators. By implementing adaptive control strategies, plants can maintain ideal operating conditions even under fluctuating feed compositions or environmental changes, thereby ensuring stable separation efficiency and reliable process outcomes.
Maintenance and Upkeep Strategies
The longevity and consistent performance of metal mixer settlers heavily depend on well-structured maintenance and upkeep strategies. Routine inspections of impellers, seals, bearings, and internal baffles are necessary to detect signs of wear, corrosion, or misalignment at an early stage. Establishing a proactive maintenance schedule, supported by predictive diagnostic tools such as vibration monitoring or thermal imaging, can help identify potential failures before they impact operations. Such practices minimize unplanned downtime, reduce repair costs, and preserve extraction efficiency, ultimately extending equipment service life and ensuring continuous plant productivity.
Integration with Advanced Control Systems
Integrating metal mixer settlers into advanced process control systems offers significant improvements in operational performance. By linking settlers with distributed control systems (DCS) or supervisory control and data acquisition (SCADA) platforms, operators can achieve real-time monitoring and precise parameter adjustment. These systems enable automated feedback loops that stabilize process conditions, enhance reproducibility, and optimize extraction efficiency. Furthermore, advanced control integration supports data-driven decision-making, predictive maintenance, and improved resource allocation, leading to higher product quality, reduced operational costs, and a more sustainable and reliable extraction process overall.
Conclusion
Metal mixer settlers are indispensable tools in industrial-scale extraction processes, offering unparalleled efficiency and versatility. Their ability to handle high volumes, corrosive substances, and complex multistage extractions makes them ideal for a wide range of applications. By understanding the optimal scenarios for their use and implementing strategies to maximize their performance, industries can significantly enhance their extraction processes, leading to improved product quality and operational efficiency.
