The Fundamentals of Mixer Settler Technology
Design and Operating Principles
Mixer settlers consist of two primary components: a mixing chamber and a settling chamber. In the mixing stage, an agitator vigorously blends two immiscible phases, typically an organic solvent and an aqueous solution. This intimate contact promotes mass transfer of target compounds between the phases. The mixture then flows into the settling chamber, where gravity separation occurs. Adjustable weirs control the interface height, ensuring clean phase separation.
Customization and Scalability

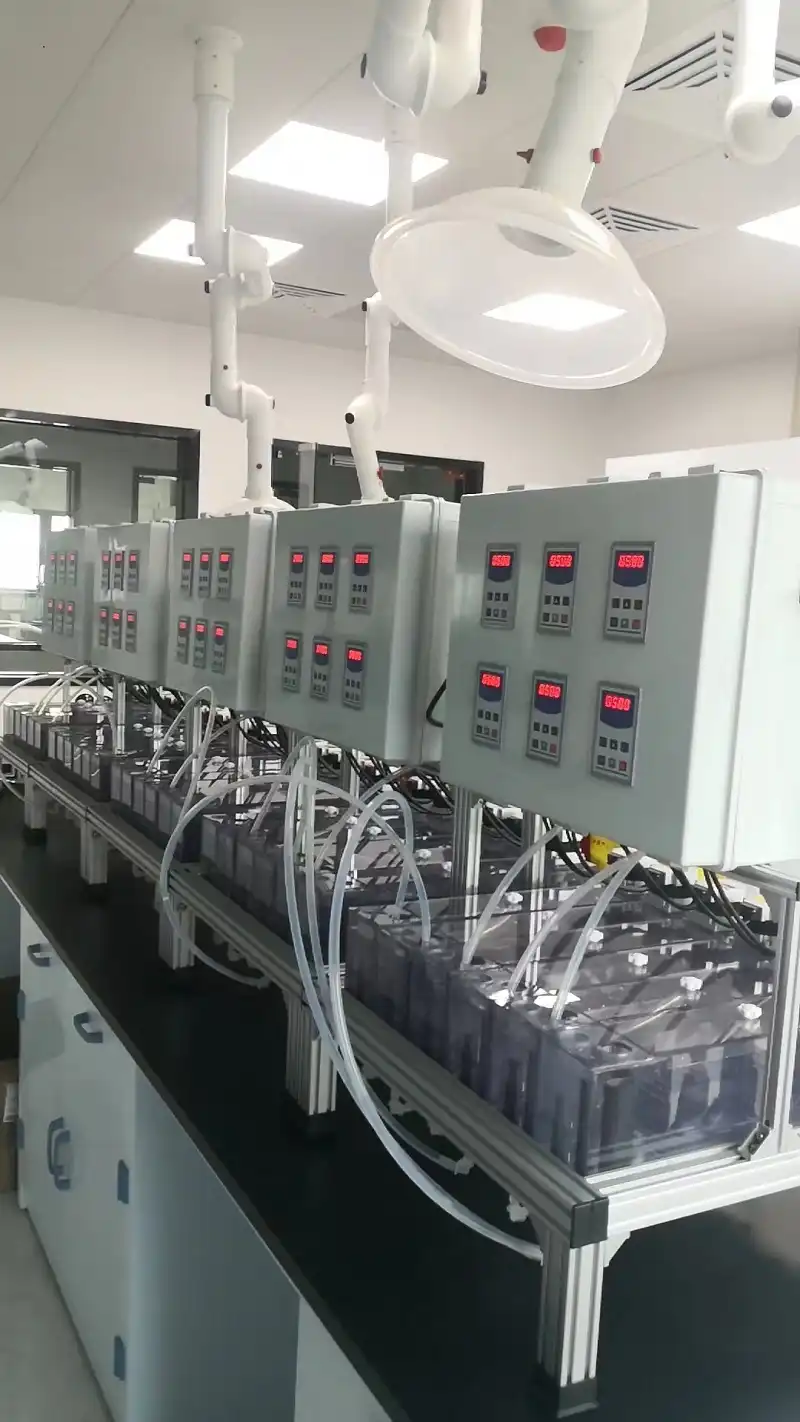

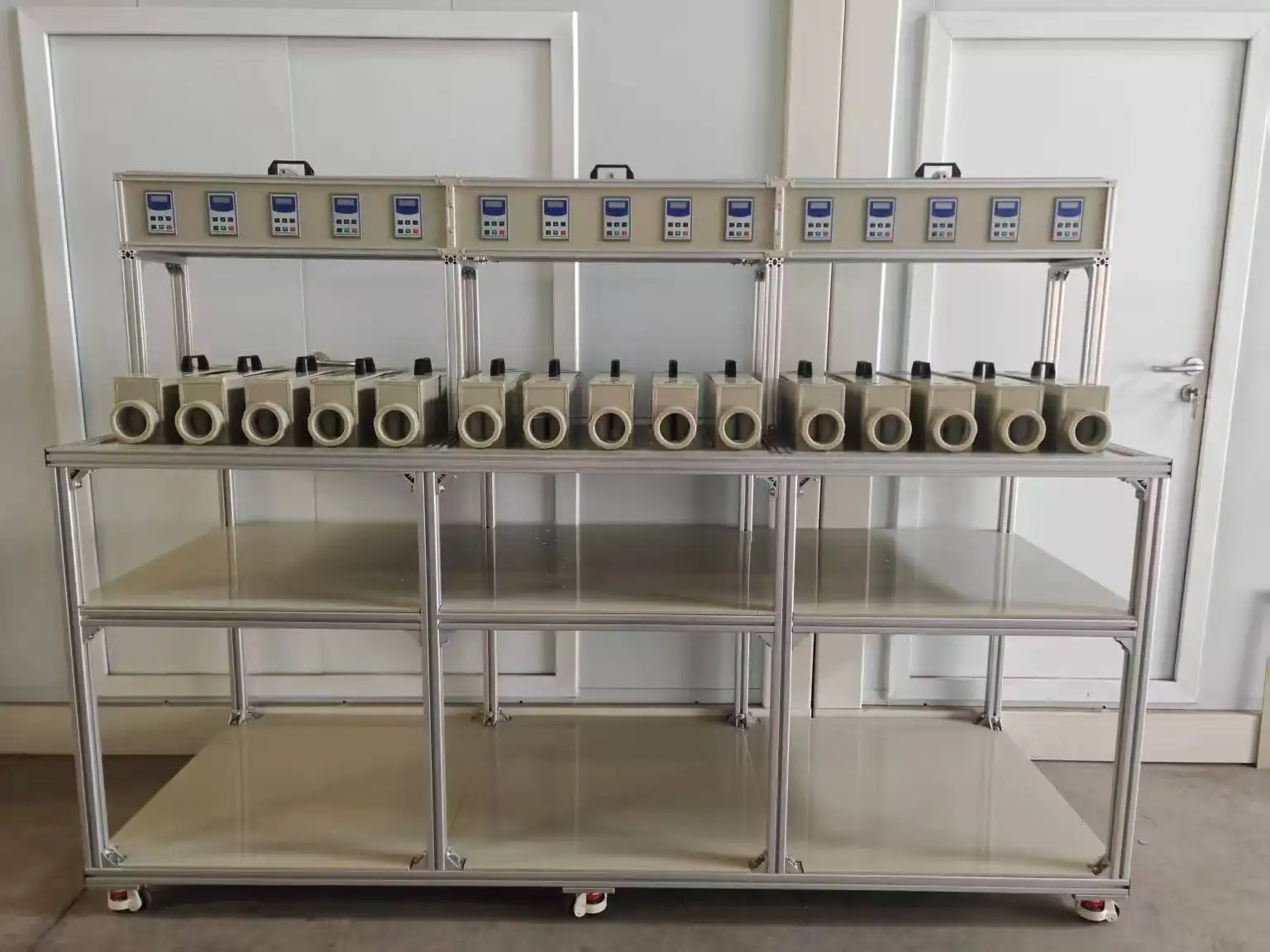

One of the key advantages of mixer settlers is their modular nature. Multiple units can be linked in series to create multi-stage extraction processes, allowing for greater separation efficiency and purity. Manufacturers like Cuiyan Technology offer a range of mixer settler configurations, from compact desktop models to large-scale industrial units. Mixing volumes can be tailored from 200ml up to 3L or beyond, with customizable plate thicknesses and materials of construction to suit specific application needs.
Advanced Features for Process Control
Modern mixer settlers incorporate a variety of optional features to enhance performance and ease of use. Temperature control devices allow for precise thermal management, while pH adjustment systems enable in-situ chemical conditioning. Water-bath jackets provide additional temperature stability for sensitive processes. Anti-overflow tanks and viewing windows improve safety and monitoring capabilities. These advanced features, combined with adjustable agitator speeds and interface heights, give operators unprecedented control over their separation processes.
Applications Across Industries
Rare Earth Element Purification
The extraction and purification of rare earth elements like neodymium and dysprosium are critical for many high-tech applications. Mixer settlers excel in this domain, offering the precision and multi-stage capabilities needed to separate these chemically similar elements. The process typically begins with leaching rare earth-containing ores, followed by a series of solvent extraction steps in mixer settlers. By carefully controlling pH, organic-to-aqueous ratios, and extraction kinetics across multiple stages, high-purity rare earth compounds can be isolated efficiently.
Battery Material Recycling
As the demand for electric vehicles grows, so does the need for efficient battery recycling processes. Mixer settlers play a crucial role in recovering valuable materials like lithium and cobalt from spent lithium-ion batteries. After mechanical preprocessing and leaching, mixer settlers are used to selectively extract and purify these elements. The ability to fine-tune extraction parameters and implement counter-current flow arrangements makes mixer settlers ideal for achieving the high recovery rates and purities required for battery-grade materials.
Nuclear Fuel Reprocessing
In the nuclear industry, mixer settlers are indispensable for the challenging task of separating uranium and plutonium in spent fuel reprocessing. The PUREX (Plutonium Uranium Redox EXtraction) process relies heavily on mixer settler technology. By using specialized organic solvents and carefully controlled oxidation states, these elements can be separated with extremely high efficiency and purity. The robust construction and leak-proof design of modern mixer settlers ensure safe handling of radioactive materials while meeting stringent regulatory requirements.
Advantages and Future Developments
Efficiency and Environmental Benefits
Mixer settlers offer significant advantages over traditional separation methods. Their continuous operation and high extraction rates lead to improved process efficiency and reduced solvent consumption. The modular design of mixer settler systems can result in energy savings of 15-20% compared to conventional equipment. Additionally, the precise control over mixing and settling parameters minimizes the formation of stable emulsions, reducing waste and simplifying downstream processing.
Integration with Process Automation
The latest mixer settler designs are embracing Industry 4.0 principles. Integration with programmable logic controllers (PLCs) allows for real-time monitoring and adjustment of critical parameters like pH, temperature, and liquid levels. This data-driven approach enables process optimization, predictive maintenance, and enhanced quality control. Some advanced systems even incorporate machine learning algorithms to continuously refine extraction protocols based on historical performance data.
Material Innovations
Ongoing research in materials science is expanding the capabilities of mixer settlers. New corrosion-resistant alloys and advanced polymers are enabling these devices to handle increasingly aggressive chemical environments. For instance, the use of PEEK (polyether ether ketone) in critical components allows for operation in strongly acidic or alkaline conditions (pH 1-14) while maintaining excellent mechanical properties. Transparent materials like PMMA (polymethyl methacrylate) are being used to create "smart" mixer settlers that allow for visual inspection and potential integration of optical sensors for real-time process monitoring.
Conclusion
Mixer settlers have become indispensable tools in the chemical process industry, offering unparalleled flexibility and efficiency in liquid-liquid extraction processes. Their ability to handle a wide range of applications, from rare earth purification to nuclear fuel reprocessing, underscores their versatility. As technology continues to advance, we can expect even more innovative features and materials to further enhance the capabilities of these transformative devices. The future of chemical separation processes looks bright, with mixer settlers leading the way towards more sustainable and efficient industrial practices.
