The Fundamentals of Mixer Settler Technology
Operating Principles and Design

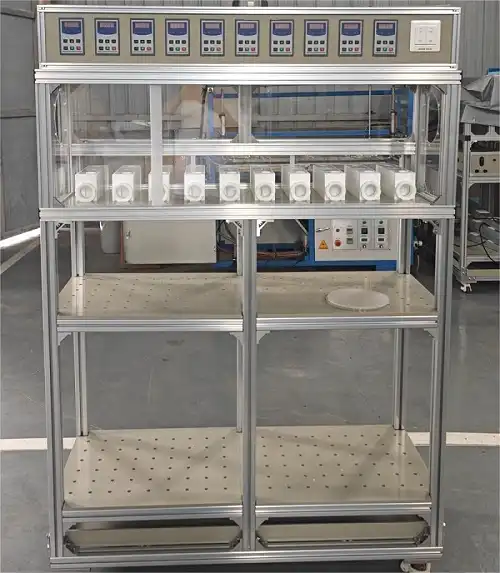

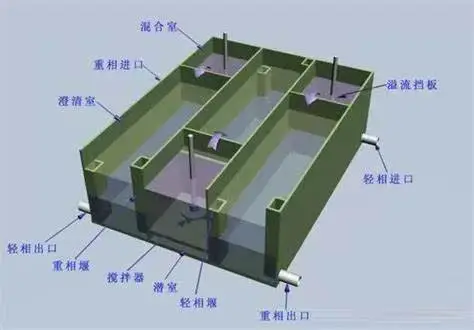

Mixer settler equipment operates on a simple yet ingenious principle. The process begins in the mixing chamber, where two immiscible liquids are vigorously agitated. This creates an emulsion, maximizing the contact surface area between the phases and facilitating mass transfer. The mixture then flows into the settling chamber, where gravity takes over. Here, the phases separate based on density differences, with the heavier phase settling to the bottom while the lighter phase rises to the top.

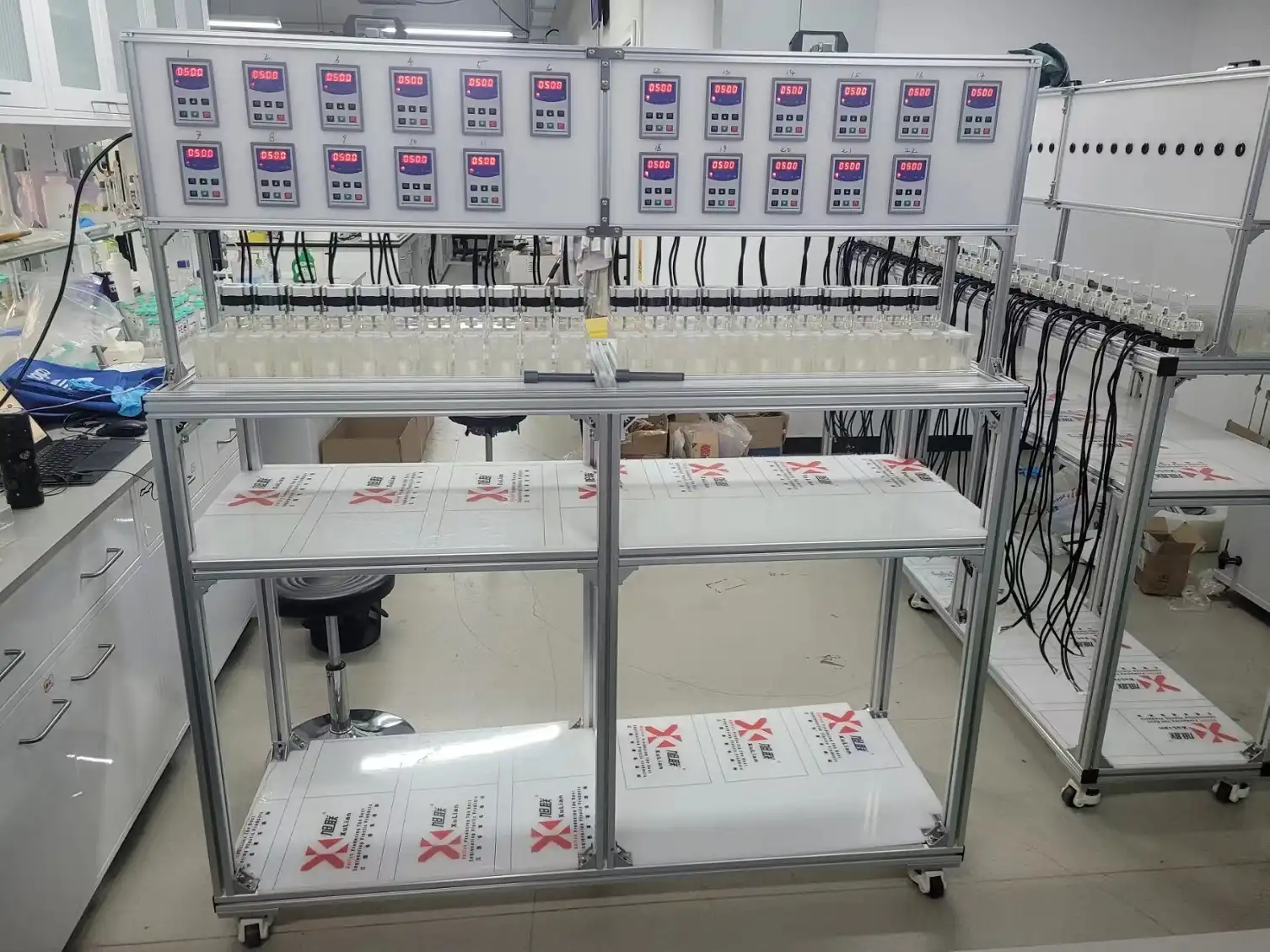

The design of mixer settlers can vary, but most configurations include a series of interconnected stages. Each stage consists of a mixing unit and a settling unit, allowing for multiple extraction or stripping steps in a single, compact setup. This modular approach offers flexibility in process design and optimization.
Key Components and Materials
Modern mixer settlers are constructed using advanced materials to ensure durability and chemical resistance. Common options include polypropylene (PP), polyvinyl chloride (PVC), and stainless steel (SUS). For applications involving highly corrosive substances, specialized materials like polytetrafluoroethylene (PTFE) or titanium may be employed.
Critical components of a mixer settler include:
- Agitators: These provide the mixing energy and can be adjustable to optimize performance.
- Baffles: Strategically placed to prevent vortex formation and enhance mixing efficiency.
- Weirs: Adjustable barriers that control the interface height between phases in the settler.
- Overflow and underflow outlets: Allow for continuous operation and product collection.
Process Control and Optimization
Achieving optimal performance in mixer settler operations requires precise control over various parameters. Modern units often incorporate advanced sensors and control systems to monitor and adjust key variables such as:
- Agitation speed: Influences droplet size and mass transfer rates.
- Flow rates: Affects residence time and extraction efficiency.
- Temperature: Can impact solubility and reaction kinetics.
- pH: Critical for many extraction processes, especially in hydrometallurgy.
By fine-tuning these parameters, operators can maximize extraction efficiency while minimizing energy consumption and reagent use.
Applications Across Industries
Rare Earth Element Extraction
The extraction and purification of rare earth elements (REEs) represent one of the most significant applications of mixer settler technology. These critical materials, essential for modern electronics and renewable energy technologies, often occur in low concentrations and complex mineral matrices. Mixer settlers excel in the selective extraction of REEs from leach solutions, enabling the separation of individual elements like neodymium and dysprosium.
The process typically involves multiple stages of extraction, scrubbing, and stripping. Organic solvents containing specific extractants selectively bind to the target REEs, separating them from impurities. The mixer settler's ability to handle high throughputs while maintaining excellent phase separation makes it ideal for industrial-scale REE production.
Nuclear Fuel Reprocessing
In the nuclear industry, mixer settlers play a crucial role in the PUREX (Plutonium Uranium Redox Extraction) process. This method is used to recover uranium and plutonium from spent nuclear fuel, enabling the recycling of these valuable materials. The process involves multiple extraction stages, where tributyl phosphate (TBP) in an organic diluent selectively extracts uranium and plutonium from an aqueous nitric acid solution.
Mixer settlers are particularly well-suited for this application due to their ability to handle radioactive materials safely and efficiently. The equipment's design allows for remote operation and maintenance, minimizing radiation exposure to personnel. Additionally, the high separation efficiency of mixer settlers helps ensure the purity of the recovered nuclear materials, a critical factor in fuel reprocessing.
Wastewater Treatment and Metal Recovery
As environmental regulations become increasingly stringent, industries are turning to advanced technologies for wastewater treatment and valuable metal recovery. Mixer settlers offer an effective solution for removing heavy metals and other contaminants from industrial effluents. In these applications, the equipment is often used in conjunction with ion exchange or solvent extraction processes.
For example, in the treatment of acid mine drainage, mixer settlers can be employed to selectively extract metals like copper, zinc, and nickel. The recovered metals can then be further purified for reuse, turning an environmental liability into a valuable resource. This approach not only helps companies meet environmental standards but also provides an economic incentive for responsible waste management.
Innovations and Future Trends
Advanced Materials and Fabrication Techniques
The evolution of mixer settler technology is closely tied to advancements in materials science and manufacturing techniques. Recent innovations include the use of high-performance polymers like polyetheretherketone (PEEK) for components exposed to extreme chemical environments. These materials offer exceptional resistance to a wide range of solvents and acids, extending equipment lifespan and reducing maintenance costs.
Additive manufacturing, or 3D printing, is also making inroads in mixer settler production. This technology allows for the creation of complex internal geometries that can enhance mixing efficiency and improve phase separation. Custom-designed impellers and baffles can be rapidly prototyped and tested, accelerating the development of optimized designs for specific applications.
Integration of Smart Technologies
The integration of smart technologies is transforming mixer settler operations, ushering in the era of Industry 4.0. Advanced sensors and real-time monitoring systems provide operators with unprecedented insight into the extraction process. Machine learning algorithms can analyze this data to predict maintenance needs, optimize operating parameters, and even suggest process improvements.
Some cutting-edge mixer settler systems now incorporate:
- Inline spectroscopy for real-time composition analysis
- Adaptive control systems that automatically adjust parameters based on feed variations
- Remote monitoring and control capabilities for enhanced safety and efficiency
- Predictive maintenance algorithms to minimize downtime
Sustainable Design and Operation
As industries worldwide focus on sustainability, mixer settler manufacturers are developing more environmentally friendly designs. Energy-efficient motors and optimized hydraulics reduce power consumption, while improved sealing technologies minimize the risk of leaks and emissions. Some innovative designs even incorporate heat recovery systems, capturing waste heat from the extraction process for use in other plant operations.
Additionally, there's a growing trend towards the use of green solvents and bio-based extractants in mixer settler processes. These environmentally benign alternatives can reduce the carbon footprint of extraction operations while maintaining or even improving performance. Research into novel extraction chemistries continues to open new possibilities for sustainable industrial mixing solutions.
Conclusion
Mixer settler equipment has proven to be a cornerstone of industrial mixing solutions, offering unparalleled efficiency and versatility across a wide range of applications. From rare earth extraction to wastewater treatment, these powerful devices continue to drive innovation and sustainability in chemical processing. As technology advances, we can expect even more sophisticated and environmentally friendly mixer settler designs to emerge, further cementing their role in shaping the future of industrial mixing and separation processes. By embracing these technologies, industries can achieve higher productivity, reduced environmental impact, and improved resource utilization.
