Types of Extraction Equipment and Their Applications
Solvent Extraction Systems

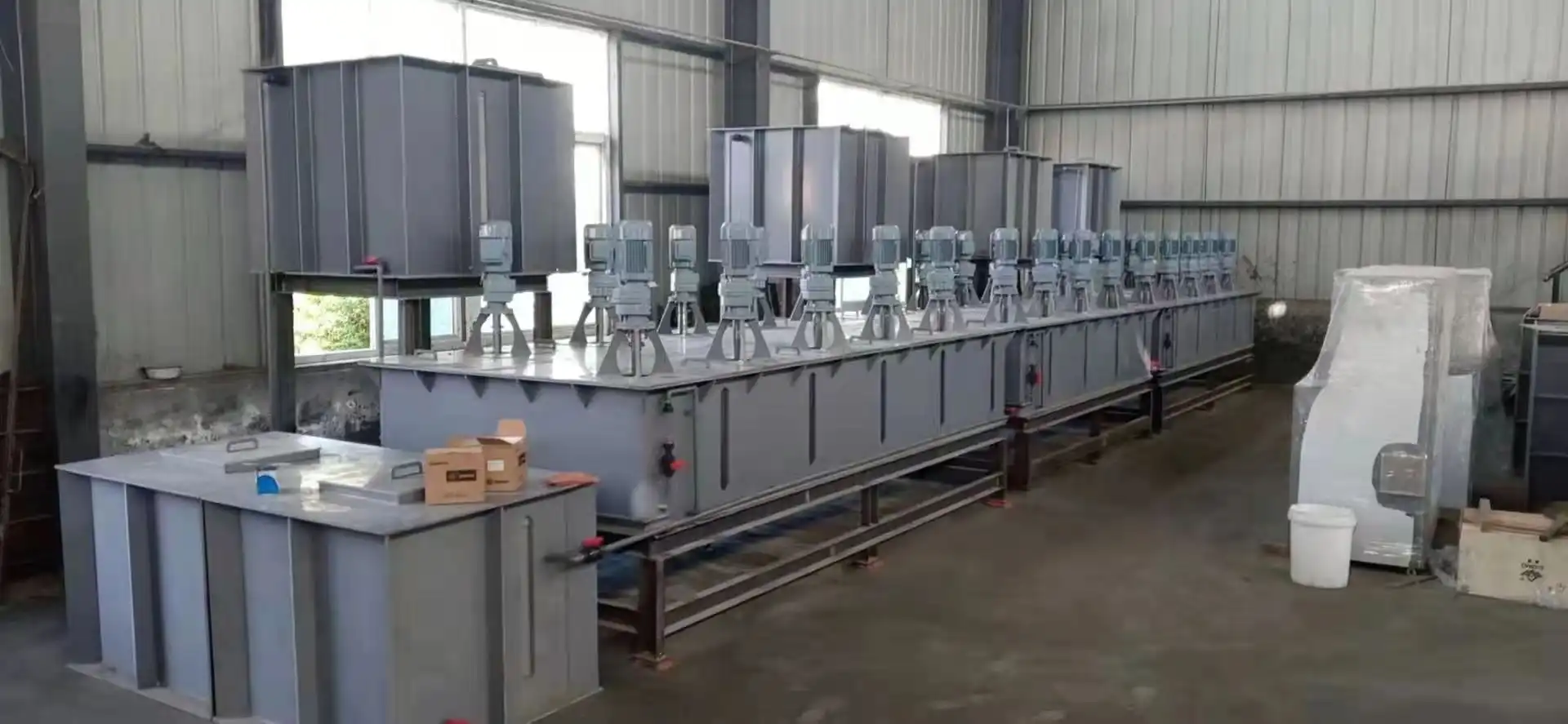

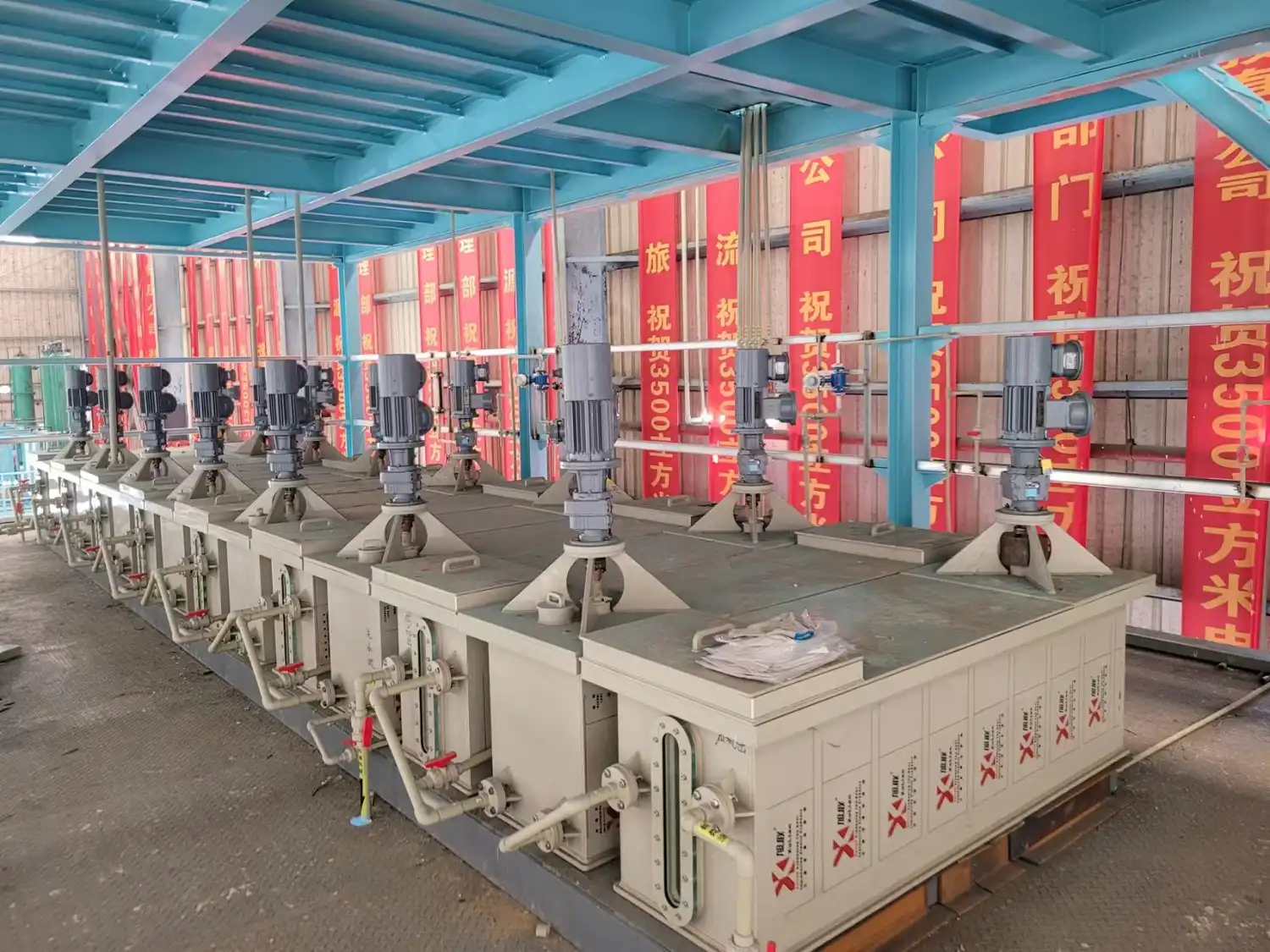

Solvent extraction systems are widely used in industries such as petrochemicals, pharmaceuticals, and food processing. These systems utilize liquid solvents to separate desired compounds from raw materials. Key components include mixing vessels, separators, and solvent recovery units. The process involves contacting the feed material with a solvent, allowing the target compounds to dissolve, followed by separation and purification steps.
Applications of solvent extraction systems include:
- Purification of active pharmaceutical ingredients
- Recovery of valuable metals from ores
- Extraction of essential oils from plant materials
- Removal of contaminants from industrial waste streams
Supercritical Fluid Extraction (SFE) Equipment
Supercritical fluid extraction utilizes gases in their supercritical state, often carbon dioxide, to extract desired compounds. This technology offers advantages such as high selectivity, low environmental impact, and the ability to operate at relatively low temperatures. SFE equipment typically consists of high-pressure pumps, extraction vessels, and separators.
Common applications of SFE include:
- Decaffeination of coffee and tea
- Extraction of nutraceuticals from plant sources
- Purification of specialty chemicals
- Production of high-purity extracts for the fragrance industry
Centrifugal Extractors
Centrifugal extractors are specialized devices that combine mixing and separation in a single unit. They utilize centrifugal force to enhance the contact between immiscible liquids, accelerating the extraction process. These extractors are particularly useful for applications requiring rapid mass transfer and efficient phase separation.
Industries benefiting from centrifugal extractors include:
- Nuclear fuel reprocessing
- Recovery of rare earth elements
- Purification of bio-based chemicals
- Extraction of valuable compounds from waste streams
Optimizing Extraction Processes: Key Considerations
Solvent Selection and Management
Choosing the right solvent is crucial for efficient extraction. Factors to consider include selectivity, boiling point, toxicity, and cost. Implementing effective solvent management practices, such as recycling and proper disposal, can significantly impact both economic and environmental aspects of the product process.
Important considerations for solvent selection and management:
- Compatibility with target compounds and equipment materials
- Regulatory compliance and safety requirements
- Energy consumption for solvent recovery
- Potential for solvent substitution with greener alternatives
Process Parameters and Control
Optimizing process parameters is essential for achieving high extraction efficiency and product quality. Key variables include temperature, pressure, contact time, and flow rates. Implementing robust process control systems helps maintain consistent performance and enables real-time adjustments to maximize yield and purity.
Critical process parameters to monitor and control:
- Extraction temperature and pressure profiles
- Solvent-to-feed ratios - Residence time in extraction vessels
- Mixing intensity and mass transfer efficiency
Scale-up and Process Integration
Successful scale-up of the product processes from laboratory to industrial scale requires careful consideration of equipment design and operating conditions. Integrating extraction units with upstream and downstream processes can enhance overall efficiency and reduce operational costs. Pilot-scale testing and process simulation tools play vital roles in optimizing large-scale extraction systems.
Key aspects of scale-up and integration:
- Equipment sizing and geometry considerations
- Heat and mass transfer limitations at larger scales
- Integration with feed preparation and product purification steps
- Optimization of utility consumption and waste minimization
Emerging Trends and Innovations in Extraction Technology
Intensified Extraction Processes
Process intensification techniques are gaining traction in the field of extraction, aiming to enhance efficiency and reduce equipment footprint. Examples include pulsed column extractors, microfluidic devices, and rotating disc contactors. These innovative designs offer improved mass transfer rates and flexibility in handling diverse feed materials.
Benefits of intensified extraction processes:
- Reduced solvent consumption and processing time
- Improved selectivity and product purity
- Enhanced energy efficiency and operational flexibility
- Potential for continuous processing and modular scale-up
Green Extraction Technologies
The drive towards sustainability has spurred the development of eco-friendly product methods. These include the use of bio-based solvents, enzyme-assisted product, and the application of ultrasound or microwave energy to enhance product efficiency. Green product technologies aim to reduce environmental impact while maintaining or improving process performance.
Examples of green product approaches:
- Subcritical water product for polar compounds
- Deep eutectic solvents as alternatives to traditional organic solvents
- Pulsed electric field-assisted product for cellular disruption
- Integrated product-distillation processes for solvent recovery.
Digitalization and Advanced Process Analytics
The integration of digital technologies and advanced analytics is revolutionizing extraction processes. Machine learning algorithms can optimize operating conditions in real-time, while in-line sensors and spectroscopic techniques enable continuous monitoring of extract composition. These advancements contribute to improved process control, product quality, and operational efficiency.
Applications of digital technologies in extraction:
- Predictive maintenance of the product equipment
- Real-time optimization of multi-component extraction processes
- Quality-by-design approaches for pharmaceutical extractions
- Digital twins for process simulation and operator training
Conclusion
Extraction equipment plays a pivotal role in numerous industries, enabling the efficient separation and purification of valuable compounds. This guide has explored various types of the product technologies, from traditional solvent-based systems to emerging green extraction methods. By considering key factors such as solvent selection, process optimization, and emerging trends, industries can harness the full potential of the product equipment to drive innovation and sustainability in their operations.
