Understanding mixer settlers is vital for anyone involved in liquid-liquid extraction processes. A mixer settler is a specialized piece of equipment designed to separate components by exploiting their varying solubility in two immiscible liquids. This dual-phase apparatus efficiently combines mixing and settling functions to facilitate precise separation. Its design ensures thorough contacting of phases followed by calm settling, making it indispensable in industries requiring high-purity extractions such as pharmaceuticals and nutraceuticals, where compliance and scalability are critical.
What is a Mixer Settler?

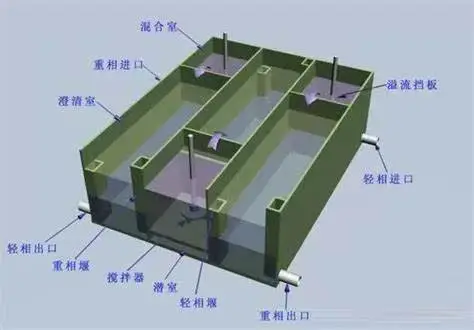

A mixer settler is essentially a two-stage device used in solvent extraction processes. The first stage, the mixer, vigorously combines two immiscible liquids - typically an aqueous phase and an organic phase - to promote mass transfer and the dissolution of one component into the other. The second stage, the settler, allows these mixed liquids to separate by gravity due to their density differences, establishing two clear layers for recovery. This equipment’s modularity allows adjustment of the number of stages, agitator speed, and interface height, enhancing process control to fit specific applications.
Internal components often include adjustable weirs and patented baffle designs that prevent phase bubbling and promote a stable interface, ensuring clean separation. Materials such as PP, PVC, PTFE, and SUS316L are selected for their corrosion resistance and compliance with GMP standards, catering to industries where contamination risks are intolerable. The mixer settler’s production methods - welding, bonding, and injection molding - contribute to its robust build and leak-proof integrity.
The combination of adaptable design and precise engineering makes the mixer settler a cornerstone technology in modern liquid-liquid separation.
Advantages of Mixer Settlers
When evaluating liquid-liquid extraction equipment, mixer settlers present several compelling advantages over alternatives like extraction columns and centrifugal extractors. Their distinct separation of mixing and settling zones provides better control over phase interactions and reduces the risk of emulsification, which can complicate downstream processing.
Notable benefits include:
- High extraction efficiency: The separate stages optimize mass transfer and phase disengagement, enhancing product purity and yield in sensitive extractions such as botanical compounds and pharmaceuticals.
- Flexibility: Adjustable agitator speeds and stage quantities allow customization matching the process scale, whether laboratory-scale (200 ml) or industrial volumes exceeding several liters.
- Operational reliability: The design incorporates zero-leak features and sturdy materials to withstand harsh solvents and continuous operation without degradation.
- Ease of maintenance: With modular components and straightforward cleaning protocols, downtime is minimized - a crucial factor for continuous pharmaceutical or food-grade production lines.
Studies comparing mixer settlers with pulsed columns demonstrate a 15-20% improvement in energy efficiency for equivalent throughput, making them not only effective but also sustainable solutions.
These advantages effectively address the demands of precision, scalability, and regulatory compliance that leading industry players require.
Mixer Settler Applications
Mixer settlers have proven their versatility across diverse sectors, making them invaluable tools in improving operational efficiency and product quality. Key applications include:
- Pharmaceuticals and Nutraceuticals: Extraction of high-purity botanical actives, requiring GMP-compliant systems that safeguard bioactive compound integrity through gentle yet precise extractions.
- Food and Beverage: Processing of essential oils, natural flavors, and pigments, where food-grade safety and the careful preservation of delicate compounds are paramount.
- Cosmetics and Personal Care: Production of natural extracts for skincare and fragrances that benefit from gentle physical separation methods such as mixer settlers paired with CO2 extraction.
- Chemical and Industrial: Heavy-duty extraction for mining rare earth elements like neodymium and dysprosium, nuclear material separation, battery material reclamation (lithium, cobalt), and wastewater treatment including copper and zinc removal.
By facilitating high-throughput and customizable separation environments, mixer settlers support unique process requirements, from sensitive bioactives to rugged industrial streams.
Comparing Mixer Settlers with Other Equipment
Choosing appropriate liquid-liquid extraction equipment can be complex. Mixer settlers distinguish themselves through several key traits when compared to liquid-liquid extraction columns and pulsed columns.
Extraction columns provide continuous counter-current flow and high surface area contact but may suffer from operational complexities and emulsification. Pulsed columns mitigate some issues but pose mechanical complexity and maintenance costs. Mixer settlers, by contrast, offer straightforward design, easier scale-up, and distinct mixing and settling zones that improve phase separation efficiency.
| Feature | Mixer Settler | Extraction Column | Pulsed Column |
|---|---|---|---|
| Process Control | Highly adjustable (agitator speed, stage count) | Moderate | Limited |
| Energy Efficiency | Lower power consumption (15-20% less) | Higher due to continuous recirculation | Moderate |
| Maintenance Complexity | Simple, modular design | Complex internals | Medium complexity |
| Suitable for Delicate Compounds | Excellent due to controlled mixing | Variable, risk of shear damage | Variable |
This clear delineation aids process engineers and plant managers in selecting equipment tailored to their production and regulatory needs.
Purchasing Mixer Settlers

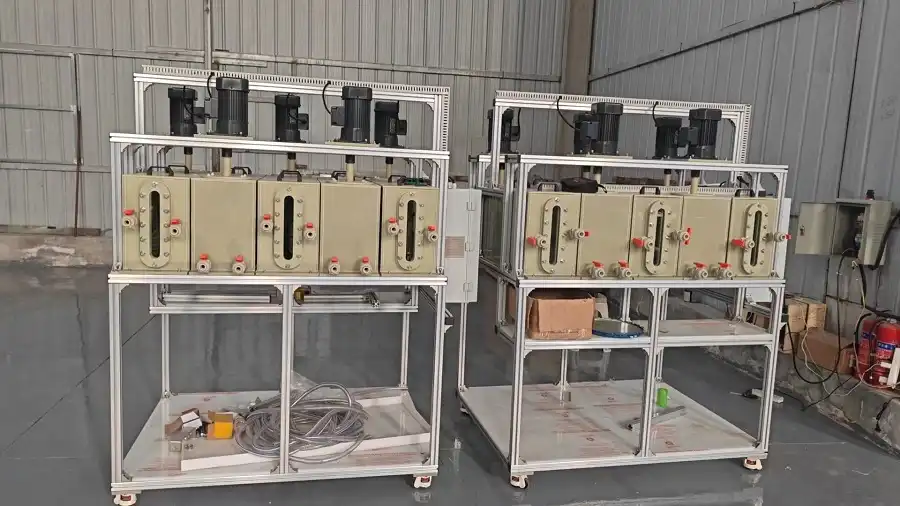

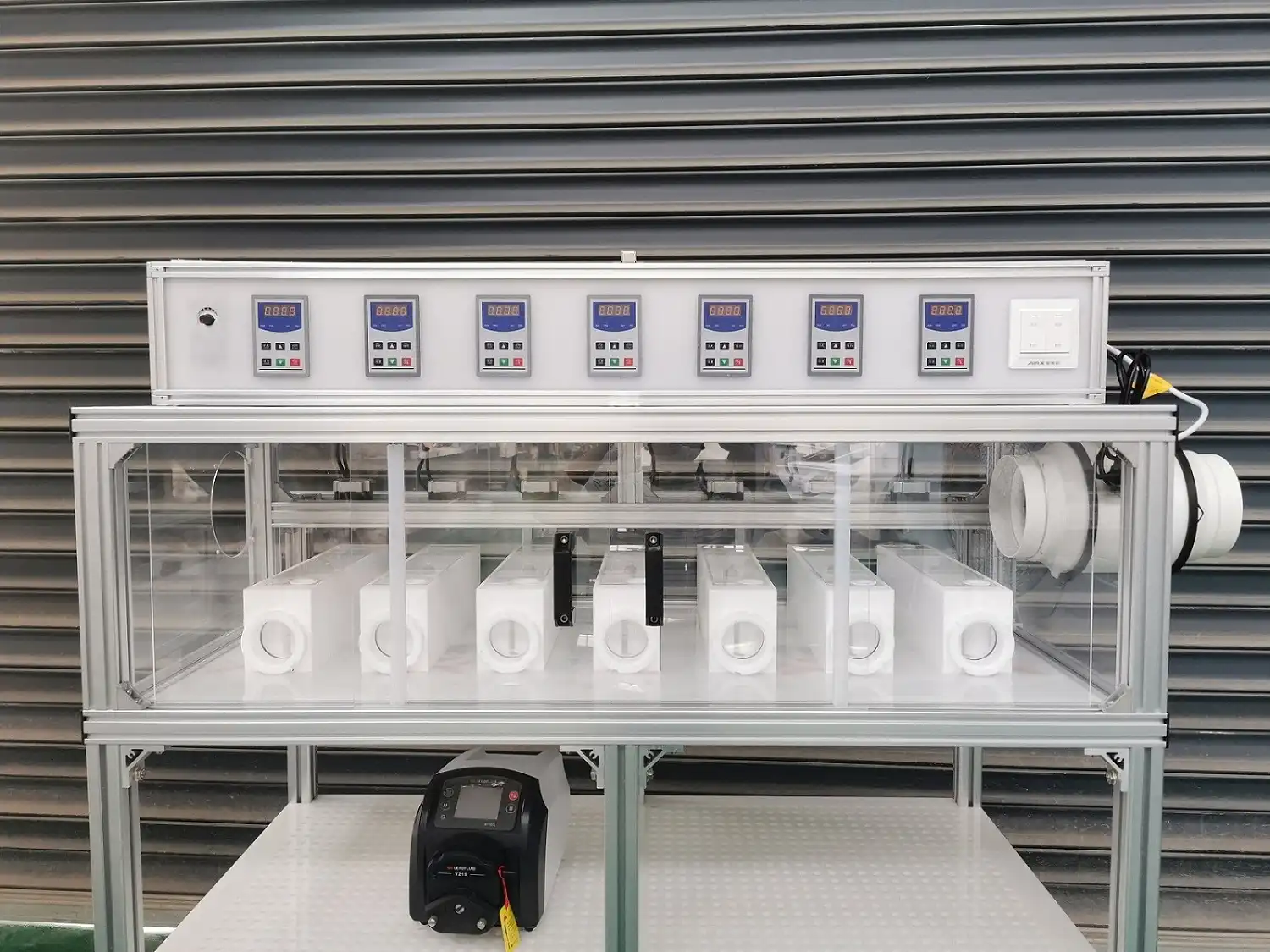

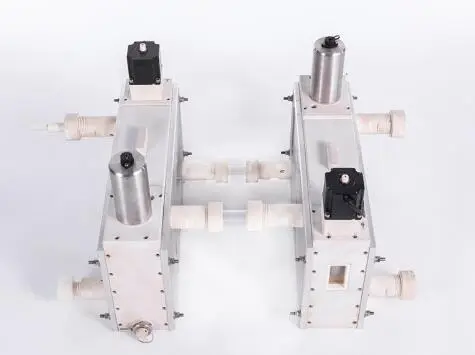

Investing in a mixer settler requires careful evaluation of supplier credentials, product quality, and after-sales services. Top manufacturers, such as Shaanxi Cuiyan Technology Co., Ltd, offer a range of customizable models configured for desktop, mobile, or environmentally friendly editions. These units accommodate mixing volumes from 200 ml to 3 liters or customized sizes, crafted from materials ensuring compliance and longevity.
Price considerations often reflect the build quality, level of automation, and integrated control features like temperature and pH adjustment devices. Prioritizing suppliers with proven patents, strong R&D, and global certifications (ASME, ISO, REACH) is essential to secure equipment that meets stringent industry demands.
Engaging manufacturers who provide comprehensive technical support and training enhances operational reliability and long-term ROI for extraction systems.
Maintenance and Technical Support
Operating mixer settlers at peak performance depends on routine maintenance and access to technical expertise. Cleaning protocols typically involve flushing with deionized water post-batch and annual seal replacement to maintain leak-free performance. The modular design facilitates quick disassembly for inspection and repair.
Advanced models feature sensor integration to monitor pH, temperature, and liquid levels via PLC systems, allowing real-time process adjustments. Having access to manufacturer-provided detailed guides, troubleshooting resources, and installation assistance reduces downtime and supports compliance with production standards.
Consistent maintenance sustains separation efficiency and product quality crucial to pharmaceutical, food-grade, and chemical applications.
Company Introduction and Product Services
Shaanxi Cuiyan Technology Co., Ltd has been a trusted innovator since 2012, delivering state-of-the-art mixer settlers tailored for rare earth extraction, lithium battery recycling, nuclear fuel processing, and much more. The company employs over 37 experts and holds more than 100 patents, emphasizing automation, corrosion resistance, and modular construction.
Their mixer settlers feature customizable workflows, zero-leak designs, and energy-efficient operation, providing clients worldwide with compliant, scalable solutions. Success stories include advancing neodymium purification and enhancing lithium recovery from EV batteries, underscoring their capability in high-stakes extraction scenarios.
Dedicated customer support, from installation to training, accompanies their equipment, ensuring users maximize operational benefits while maintaining strict environmental and safety standards.
Conclusion
As liquid-liquid extraction demands evolve across pharmaceutical, food, cosmetic, and industrial sectors, mixer settlers remain at the forefront of technology, offering extraordinary adaptability, extraction precision, and operational reliability. Shaanxi Cuiyan's innovative mixer settlers combine advanced materials, automated control, and robust construction, delivering exceptional extraction performance tailored to sophisticated industry standards. By opting for such equipment, businesses can achieve heightened compliance, scalability, and efficiency, all while safeguarding sensitive compounds and optimizing resource use. Embracing these solutions enables companies to stay competitive in a rapidly advancing market where quality and environmental stewardship are paramount.
FAQs
What distinguishes a mixer settler from other liquid-liquid extraction equipment?
Mixer settlers separate the mixing and settling functions into two distinct zones, permitting precise control over agitation, flow rates, and phase interaction, leading to higher purity and better separation efficiency compared to combined or single-stage extractors.
How customizable are mixer settlers to specific industrial applications?
Highly customizable - from mixing volume (200 ml to several liters), plate thickness, and material selection (PP, PVC, PTFE, SUS, Ti), to optional functions like temperature control and pH adjustment devices, allowing adaptation to diverse process requirements.
What maintenance is required to ensure mixer settler longevity?
Regular cleaning after each batch with deionized water, annual replacement of seals, inspection of agitator and baffles, and monitoring of integrated sensors to avoid leaks and performance degradation maintain equipment longevity and efficiency.
Where to Buy Mixer Settler?
To acquire high-quality mixer settlers tailored to your specific process requirements, turn to Shaanxi Cuiyan Technology Co., Ltd. With a legacy of innovation in extraction technology and a dedicated support team, they ensure seamless integration and operational excellence. Contact us at wangzhijun@cuiyan-tec.com to discuss your application needs, request detailed product information, or obtain a personalized quote. Your pursuit of precise, scalable, and compliant liquid-liquid extraction ends with our trusted solutions.
