Navigating the precise operations of a lab scale mixer settler unlocks superior solvent extraction and phase separation in research and pilot projects. This compact system excels in simulating industrial-scale liquid-liquid extraction, offering outstanding extraction efficiency for botanical compounds, essential oils, and specialty chemicals. The guide below outlines how to operate such units safely while optimizing mixing efficiency and settling time, ultimately ensuring high-purity outputs and scalable results tailored for pharmaceuticals, cosmetics, food, and chemical industries.
Understanding Your Lab Scale Mixer Settler Configuration

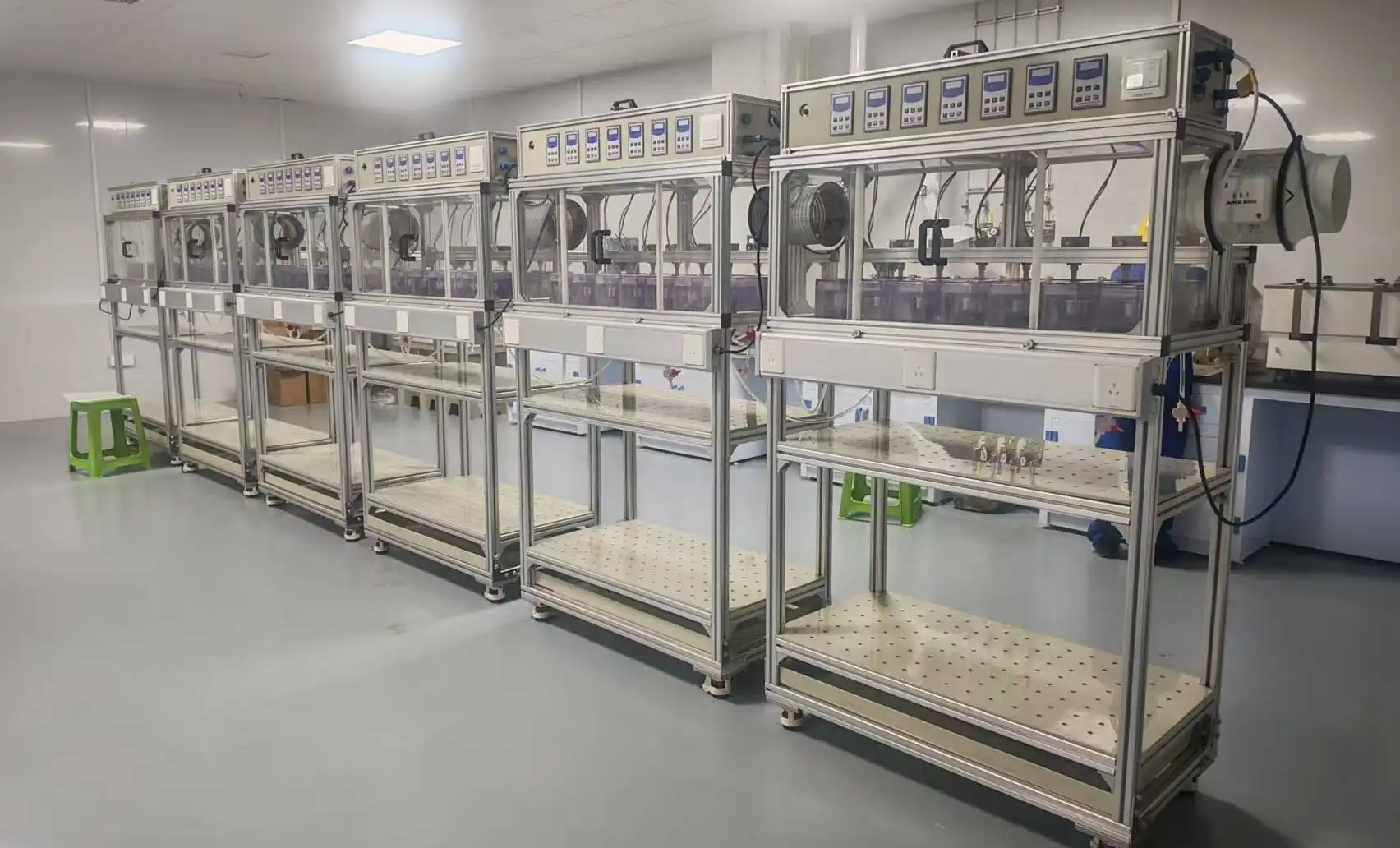

The versatility of lab scale mixer settlers extends through options like desktop base, mobile standard, and environmentally friendly high edition - each tailored to specific operational scenarios. Selection of mixing volume ranges from 200ml to 3L or customized capacities, accommodating batch processing or continuous operation needs. Material choices - including PP, PTFE, SUS, or transparent PVC - impact corrosion resistance and chemical compatibility, crucial for maintaining GMP compliance and handling aggressive solvents or temperature-controlled processes. Recognizing the manufacturing techniques such as laser welding and injection molding highlights the durability and leakage-proof integrity important for handling delicate bioactive compounds or harsh chemical phases.
Essential Components and Optional Features

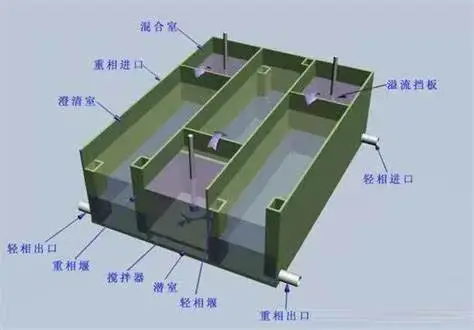

The core elements of the lab scale mixer settler include mixer-settler stages with thickness options that influence hydrodynamics and phase interface stability. The agitator speed is adjustable up to 800 RPM, optimizing agitation and thus enhancing mass transfer during mixing. Optional devices, like temperature control units, pH adjustment modules, and anti-overflow tanks, play pivotal roles during process optimization - especially when extracting sensitive natural ingredients or recovering metals through precise chemical processes. Integrated watch windows and IoT sensors facilitate real-time monitoring of interfacial tension and flow dynamics, allowing researchers to maintain process control with minimal risk of emulsification, which can hinder phase separation.
Step-by-Step Operation: From Setup to Extraction
Begin by securing the unit on a stable, vibration-resistant surface to preserve accurate separation dynamics. Calibration of temperature and pH sensors via the touchscreen interface ensures reliable data acquisition. Slowly initiate the agitator at low RPM, carefully increasing speed to prevent emulsions from forming, which can complicate separation. Introduce the feed solutions - organic and aqueous phases - in designated tanks, leveraging the one-step filling method equipped with anti-bubbling technology to maintain phase clarity. Observe phase interfaces through transparent panels and adjust mixer-settler stage count or agitator speed as needed. Settling time must be monitored; adequate residence time in the settler zone supports clear liquid-liquid separation and prevents cross-contamination.
Optimizing Extraction Efficiency and Process Control
Refining flow dynamics and agitation parameters in the lab scale mixer settler elevates extraction rates beyond 95%, supported by patented anti-bubbling designs and automated controls. Control over the phase interface height enables operators to fine-tune separation boundaries, crucial for avoiding phase overlap or breakthrough. These capabilities are essential for pharmaceutical R&D when purifying Active Pharmaceutical Ingredients (APIs), where extraction precision directly impacts product purity and regulatory compliance. Utilizing environmentally friendly editions further demonstrates commitment to sustainable lab practices, minimizing solvent waste and energy consumption during batch or pilot plant operations.
Maintenance and Troubleshooting Tips
Regular inspection of seals, welds, and sensor calibrations prevents leakage risks and ensures continuous leak-proof operation. Should emulsions appear unexpectedly, reducing agitator speed and verifying the integrity of baffles often resolves phase instability. Cleaning protocols involve disassembling components produced from chemically resistant materials such as PTFE or SUS316L, enabling safe removal of residues without risking corrosion or material deformation. Continuous data logging supports early detection of irregularities in agitation or settling behavior, guiding preventive maintenance schedules that protect your investment and maintain GMP compliance.
Applications Showcase: Real-World Uses of Lab Scale Mixer Settlers
This lab scale mixer settler technology shines across diverse industries. In rare earth extraction, it facilitates the purification of lanthanum (La), cerium (Ce), and neodymium (Nd) by simulating industrial hydrometallurgical conditions with precision. Battery recycling workflows benefit by recovering lithium, cobalt, and nickel, leveraging liquid-liquid extraction to reclaim valuable metals efficiently while reducing environmental impact. The pharmaceutical sector relies on these units to refine APIs, ensuring impurities are systematically removed. Wastewater treatment operations employ mixer settlers to extract and remove heavy metals, safeguarding ecosystems through cleaner effluent release. The adaptability and scalability inherent in these systems make them indispensable for forward-thinking R&D scientists and process engineers alike.
Shaanxi Cuiyan Technology: Your Partner in Advanced Extraction Solutions
Since 2012, Shaanxi Cuiyan Technology Co., Ltd. has pioneered innovative lab scale mixer settler designs, delivering corrosion-resistant, modular systems tailored for precision-driven industries. Backed by 12+ years of industrial expertise and over 300 satisfied global clients, the company offers customizable configurations enhanced by patented anti-overflow and automated mixing technologies. The commitment to scalable solutions ensures seamless transition from laboratory testing to pilot-scale production lines. Shaanxi Cuiyan’s extraction equipment supports sophisticated hydrometallurgical production, addressing challenges in precious metal recovery, chemical process optimization, and botanical extract refinement - all with uncompromising safety and efficiency.
Conclusion
Mastery of your lab scale mixer settler operation unlocks unparalleled control over solvent extraction and phase separation for a variety of complex chemical and biological applications. Appreciating the meticulous design features, calibration procedures, and process optimizations ensures that your separation technology delivers reproducible and high-purity results. Choosing scalable, customizable solutions like those from Shaanxi Cuiyan empowers your research or production team to innovate confidently while adhering to stringent quality standards.
Where to Buy Lab Scale Mixer Settler?
Acquiring a reliable lab scale mixer settler to elevate your extraction workflows is effortless with Shaanxi Cuiyan Technology Co., Ltd. Their dedication to advanced manufacturing and responsive customer support positions them as a trusted provider in pharmaceutical, food, cosmetics, and chemical sectors. Explore tailored options spanning from desktop models to environmentally friendly editions, all rigorously tested for operational excellence. Contact us at wangzhijun@cuiyan-tec.com to discuss your specific requirements or request a personalized quote. For more comprehensive details, visit cuiyan-tec.com and start enhancing your extraction efficiency with a premium lab scale mixer settler today.
