The distinction between a lab scale mixer settler and a pilot scale mixer settler centers on capacity, functionality, and application scope. Lab scale units are compact, primarily designed for preliminary testing and process understanding at small volumes, usually below 5 liters. Pilot scale mixer settlers bridge the gap to industrial scale with larger mixing volumes (8L to 80L or customized sizes) and enhanced capabilities for scalable extraction processes. They simulate real industrial conditions more accurately, offering precision, compliance with GMP standards, and flexibility needed for botanical extracts, pharmaceutical purification, and complex chemical separations.
Three Core Differences Between Pilot Scale Mixer Settler vs Lab Scale Mixer Settler
- Scale and Capacity: Lab scale units typically operate at volumes less than 5 liters, while pilot scale models from 8L upward accommodate process scaling and higher throughput, matching industrial needs.
- Process Control and Configuration: Pilot scale mixer settlers come with advanced modular design options, adjustable agitation speeds, temperature and pH control, and customizable stage numbers, supporting complex separation tasks.
- Material and Construction: Pilot scale devices integrate corrosion-resistant, industrial-grade materials like PP, PPH, and PMMA, with robust fabricated plates (8-15mm thick), ensuring durability and compliance with industrial standards absent in lab units.
Pros and Cons of Lab Scale Mixer Settler
| Pros | Cons |
|---|---|
| Compact and portable for quick screening | Limited volume, unsuitable for scale-up |
| Lower cost and easy to operate | Less accurate simulation of industrial hydrodynamics |
| Facilitates process development and troubleshooting | Lacks advanced features such as temperature and pH control |
If your work focuses on early-phase extraction research or small-batch experimentation, then a lab scale mixer settler is more suitable for cost and operational simplicity.
Applicability Scenarios of Pilot Scale Mixer Settler
The pilot scale mixer settler excels when transitioning from laboratory insights to industrial validation. Its applications are diverse: rare earth metal extractions like nickel and cobalt, rubidium cesium recovery, salt lake brine processing, vanadium battery recycling, and biological wastewater treatment. It meets the stringent requirements of pharmaceuticals and nutraceuticals for high purity and GMP compliance. Cosmetics manufacturers benefit from gentle yet effective separation maintaining bioactive compound integrity, while chemical and industrial sectors leverage its robust design for continuous, high-volume operations. The modular and customizable design allows precise control over mixing, settling, and phase interface height — critical for replicating industrial mass transfer and minimizing emulsification.
If your process involves scaling up complex solvent extractions or demands pilot plant validation, a pilot scale mixer settler offers the necessary control and flexibility.

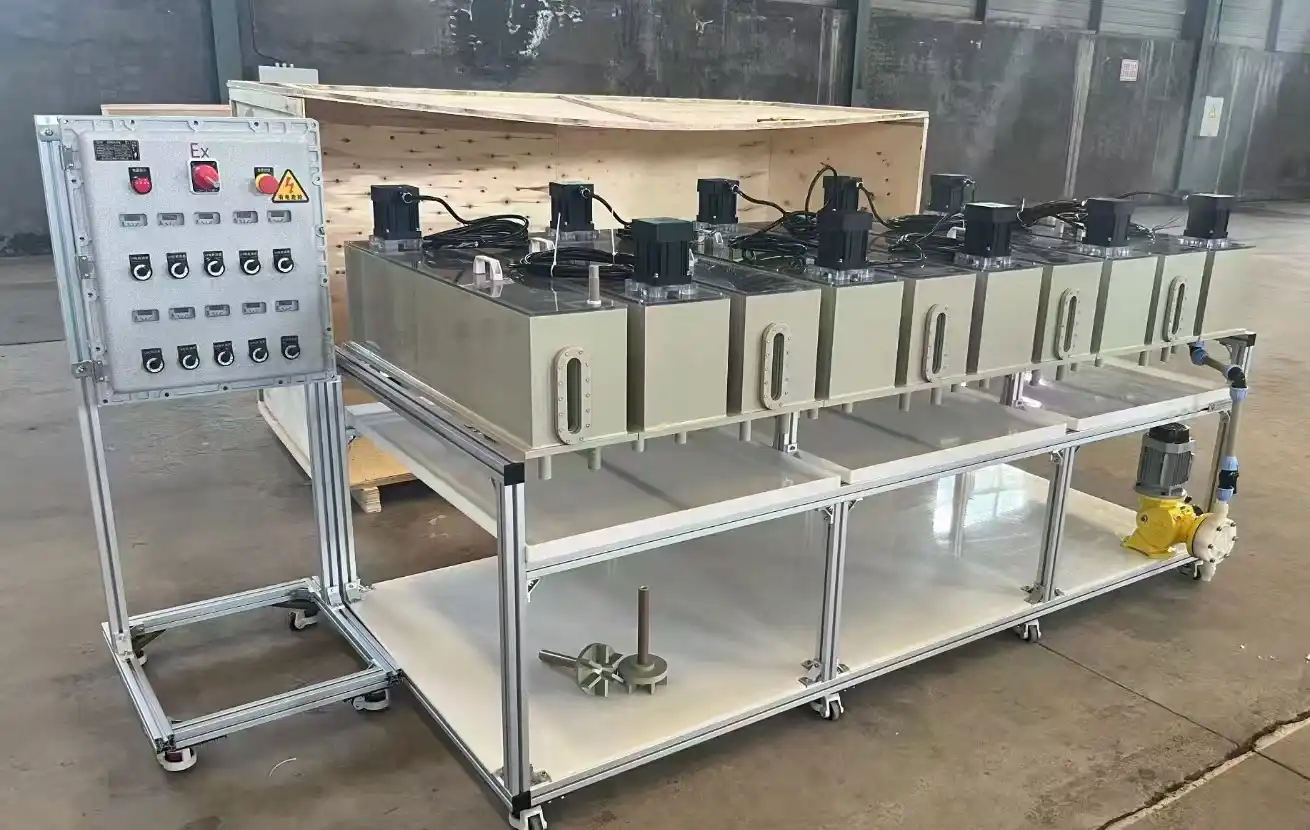

Key Features and Advantages of Shaanxi Cuiyan's Pilot Scale Mixer Settler
- High Extraction Efficiency and Separation Quality: Designed to maximize liquid-liquid separation with adjustable stage numbers to optimize mass transfer rates.
- Leakage-Free and Durable Construction: Welded joints and thick corrosion-resistant plates enhance operational safety and longevity, even under harsh chemical conditions.
- Customizable Mixing Volume: Ranges from 8L to 80L and can be tailored to suit specific process scales without compromising precision.
- Advanced Control Options: Integration of temperature control, pH adjustment, anti-overflow tanks, and watch windows for real-time monitoring of phase separation.
- Material Versatility: Constructed of PP, PPH, PVC, transparent PVC or PMMA, meeting diverse chemical resistance needs and observation requirements.
- Flexible Platform Configurations: Available in mobile platform or skid-mounted editions to fit varying plant layouts and process flows.
- Adjustable Operational Parameters: Variable agitator speeds and phase interface control accommodate changing process conditions and optimization efforts.
- Energy Efficient and Automation Ready: Designed for reduced power consumption while supporting PLC integration for continuous operation and process optimization.
These features empower R&D scientists and plant managers in pharmaceuticals and nutraceuticals, as well as production directors in food and beverage, cosmetics, and chemical industries, to conduct precise process scaling and compliance validation seamlessly with the pilot scale mixer settler.
Material and Design Considerations for Effective Scale-Up
Material selection profoundly influences mixer settler performance and longevity. For acidic or alkaline environments typical in hydrometallurgy, PP and PPH afford robust corrosion resistance. Where real-time visual monitoring is critical — such as in complex bioactive compound extraction — transparent PVC and PMMA allow process observation. The production process including welding and bonding ensures leak-proof assemblies vital for GMP compliance and safety. Plate thicknesses (8mm to 15mm) correlate with mechanical stability and vibration damping, crucial for maintaining consistent hydrodynamics during agitation and settling.
If your operation demands handling corrosive solvents or observation during extraction, pilot scale mixer settlers with corrosion-resistant and transparent materials are a practical choice.
How Pilot Scale Mixer Settlers Optimize Industrial Process Validation?

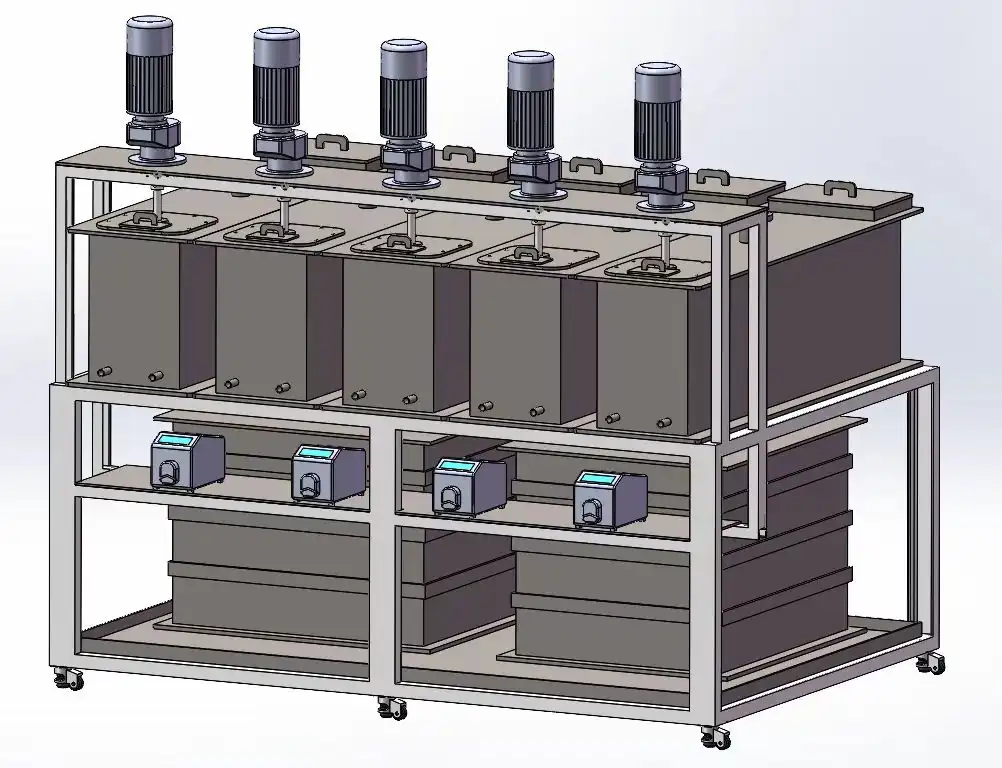

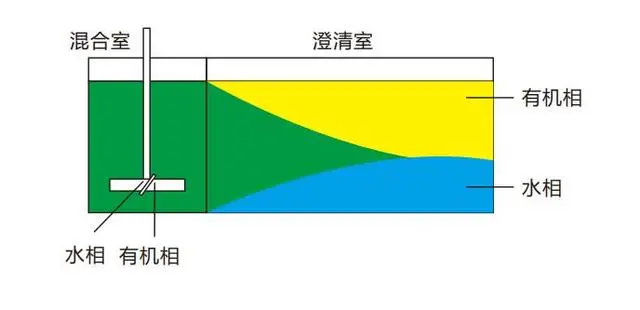

Pilot scale mixer settlers mirror industrial hydrodynamics and separation efficiency closely. The mixing stage uses agitators to blend immiscible phases, enhancing solvent extraction of target compounds through controlled mass transfer. Adjustable weirs and settling zones facilitate optimal phase separation by gravity, minimizing emulsification and phase entrainment. Modern units allow real-time adjustment of agitator speed and interface heights, yielding reproducible data essential for scale-up. Optional sensors and automation modules enable continuous monitoring of pH, temperature, and liquid levels, supporting process optimization and compliance with regulatory standards.
Testing with a 24-hour trial run at pilot scale provides actionable data on phase separation efficiency, identifying bottlenecks and enabling fine-tuning before committing to costly industrial installation.
If you require demonstration of process reliability and scalability ahead of full production, pilot scale mixer settlers provide indispensable insights and validation.
Summary Table: Pilot Scale Mixer Settler vs Lab Scale Mixer Settler
| Feature | Lab Scale Mixer Settler | Pilot Scale Mixer Settler |
|---|---|---|
| Mixing Volume | < 5 L | 8L to 80L (customizable) |
| Material Options | Basic plastics, limited corrosion resistance | PP, PPH, PVC, transparent PVC, PMMA with weld sealing |
| Process Control | Manual, limited sensors | Automated controls, temperature & pH, adjustable agitation |
| Application Scope | Preliminary R&D, small batch tests | Pilot plant validation, scale-up studies, continuous operation |
| Durability & Safety | Basic construction | Robust plate thickness, leak-proof design |
| Data Reliability | Limited industrial simulation | Accurate simulation of industrial hydrodynamics |
Conclusion
Pilot scale mixer settlers represent a critical evolution from lab scale units, integrating design robustness, precise process control, and scalable volumes that closely simulate industrial extraction. Shaanxi Cuiyan Technology Co., Ltd.'s offerings provide tailored, corrosion-resistant, and modular solutions equipped with advanced features to facilitate seamless process scaling and validation across pharmaceuticals, food & beverage, cosmetics, and chemical industries. Choosing the right scale depends on your stage of process development and production goals. Reliable performance data and flexible configurability make pilot scale mixer settlers an indispensable asset for R&D and plant managers aiming to bridge laboratory success with commercial production smoothly.
