The Fundamental Principles of Mixer Settler Operation
Mixing Phase: Promoting Efficient Mass Transfer
The mixing phase is the heart of the mixer settler's operation. In this stage, the aqueous and organic phases are vigorously combined using an impeller or agitator. This intense mixing creates a large interfacial area between the two phases, promoting rapid mass transfer of the target compounds. The efficiency of this process depends on factors such as agitation speed, mixer design, and residence time. Modern mixer settlers often feature adjustable agitator speeds, allowing operators to fine-tune the mixing intensity based on the specific requirements of different extraction processes.
Settling Phase: Gravity-Driven Separation

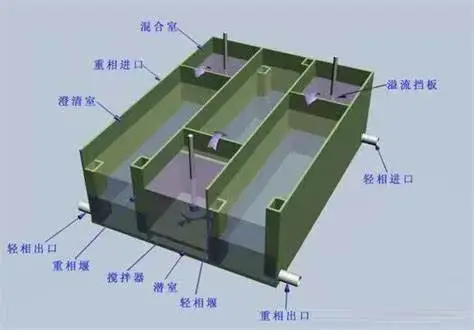

Following the mixing phase, the combined liquids flow into the settling chamber. Here, gravity takes over, causing the heavier aqueous phase to sink while the lighter organic phase rises. The settler's design, including its length and internal baffles, plays a crucial role in ensuring complete phase separation. The settling time is a critical parameter, as insufficient settling can lead to entrainment and reduced extraction efficiency. Advanced mixer settlers incorporate adjustable phase interface height controls, enabling operators to optimize the separation process for various liquid combinations and flow rates.
Continuous Operation and Multi-Stage Configuration

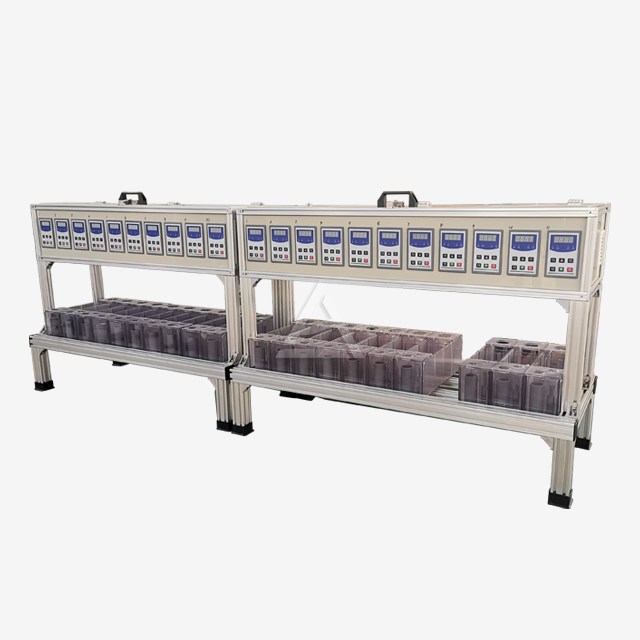

One of the key advantages of mixer settlers is their ability to operate continuously and in multiple stages. In a multi-stage configuration, each mixer settler unit represents a single theoretical stage of extraction. The aqueous and organic phases flow countercurrently through a series of units, with each stage bringing the system closer to equilibrium. This arrangement significantly enhances the overall extraction efficiency and allows for the processing of solutions with low concentrations of target compounds. The number of stages can be adjusted based on the specific separation requirements, making mixer settlers highly versatile for various applications.
Design Features and Material Considerations for Mixer Settlers
Customizable Configurations for Diverse Applications

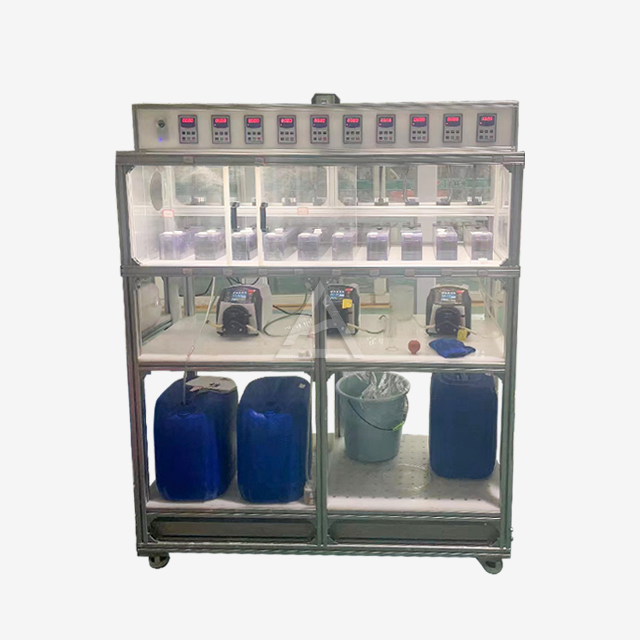

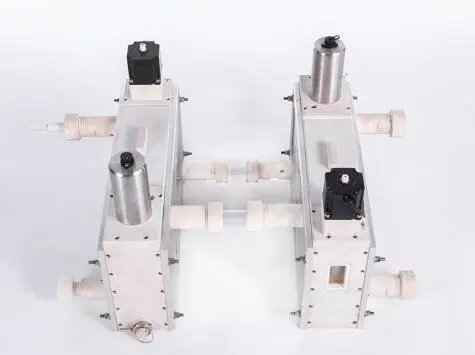

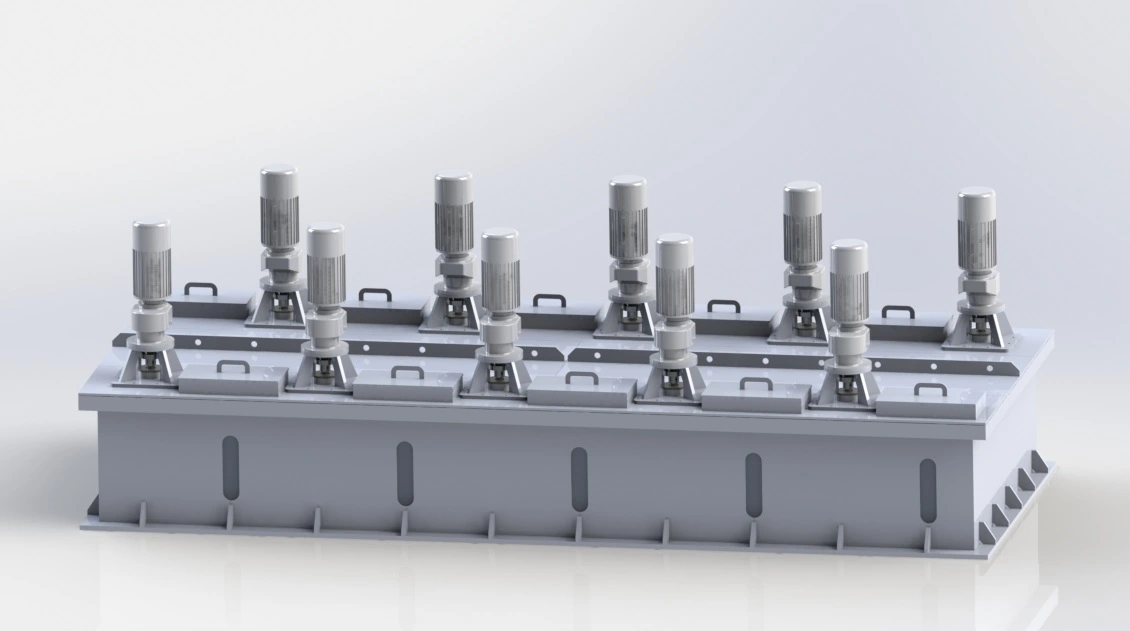

Mixer settlers come in various configurations to suit different operational needs. Desktop base editions are ideal for laboratory-scale experiments and process development, while mobile standard editions offer flexibility for pilot plant operations. For industrial-scale applications, environmentally friendly high editions provide robust performance with minimal ecological impact. The mixing volume can range from 200ml for small-scale operations to 3L or more for large industrial processes, with custom sizes available to meet specific requirements. This scalability makes mixer settlers adaptable to a wide range of applications, from rare earth extraction to nuclear waste processing.
Material Selection for Corrosion Resistance and Durability
The choice of materials for mixer settler construction is crucial for ensuring longevity and performance in harsh chemical environments. Common materials include polypropylene (PP), polyvinyl chloride (PVC), and high-performance plastics like polyether ether ketone (PEEK) for corrosive applications. For scenarios requiring exceptional chemical resistance, stainless steel (SUS) or titanium (Ti) may be employed. The plate thickness, typically ranging from 5mm to 10mm, is selected based on the expected operating conditions and chemical compatibility. Transparent materials like PMMA can be used for observation windows, allowing operators to monitor the extraction process visually.
Advanced Features for Enhanced Performance
Modern mixer settlers incorporate various optional features to enhance their performance and versatility. Temperature control devices enable precise regulation of the extraction environment, critical for temperature-sensitive processes. pH adjustment devices allow for real-time modification of solution acidity, optimizing extraction conditions. Water-bath jacket devices provide uniform temperature distribution, while anti-overflow tank devices prevent spills and ensure safe operation. These advanced features, combined with the ability to adjust mixer-settler stage amounts, agitator speeds, and phase interface heights, make contemporary mixer settlers highly adaptable to a wide range of extraction challenges.
Applications and Advantages of Mixer Settlers in Industry
Diverse Applications Across Multiple Industries
Mixer settlers find applications in numerous industries due to their versatility and efficiency. In the mining and metallurgical sector, they are indispensable for rare earth extraction, nickel-cobalt separation, and the processing of salt lake brines. The nuclear industry relies on mixer settlers for isotope extraction and the treatment of nuclear waste. In the rapidly growing field of battery recycling, these devices play a crucial role in recovering valuable materials from lithium-ion and vanadium redox flow batteries. Environmental applications include the treatment of industrial wastewaters and the recovery of metals from electroplating effluents. The adaptability of mixer settlers to handle various chemical systems makes them a go-to solution for challenging separation problems across diverse industrial sectors.
Key Advantages in Solvent Extraction Processes
Mixer settlers offer several advantages that make them preferred in many solvent extraction applications. Their design ensures high extraction rates and excellent separation effects, maximizing the recovery of target compounds. The robust construction and careful sealing eliminate leakage risks, enhancing operational safety and environmental protection. The ease of operation and maintenance reduces downtime and training requirements, making mixer settlers cost-effective in the long run. Their modular nature allows for easy scaling and modification of the extraction process, providing flexibility as production needs change. Additionally, the ability to precisely control mixing intensity, settling time, and phase interface height enables operators to optimize the extraction process for maximum efficiency and product purity.
Innovations and Future Trends in Mixer Settler Technology
The field of mixer settler technology continues to evolve, with ongoing research focused on improving performance and expanding applications. Recent innovations include the development of microfluidic mixer settlers for high-precision, small-scale extractions in pharmaceutical and fine chemical industries. Advanced materials science is contributing to the creation of more durable and chemically resistant components, extending the lifespan of mixer settlers in aggressive environments. Integration with digital control systems and real-time monitoring technologies is enhancing operational efficiency and enabling predictive maintenance. As industries increasingly focus on sustainability, mixer settlers are being adapted for use in circular economy applications, such as the recovery of rare earth elements from electronic waste and the extraction of valuable compounds from industrial byproducts.
Conclusion
Mixer settlers are indispensable tools in the realm of solvent extraction, offering a powerful combination of efficiency, versatility, and reliability. Their ability to handle a wide range of chemical systems, coupled with their scalability and customizable features, makes them ideal for applications across numerous industries. As technology advances and environmental concerns grow, the role of mixer settlers in sustainable resource recovery and waste treatment is set to expand. Understanding the principles and applications of these devices is crucial for professionals in chemical engineering, hydrometallurgy, and environmental sciences, as mixer settlers continue to play a pivotal role in shaping the future of separation technologies.
