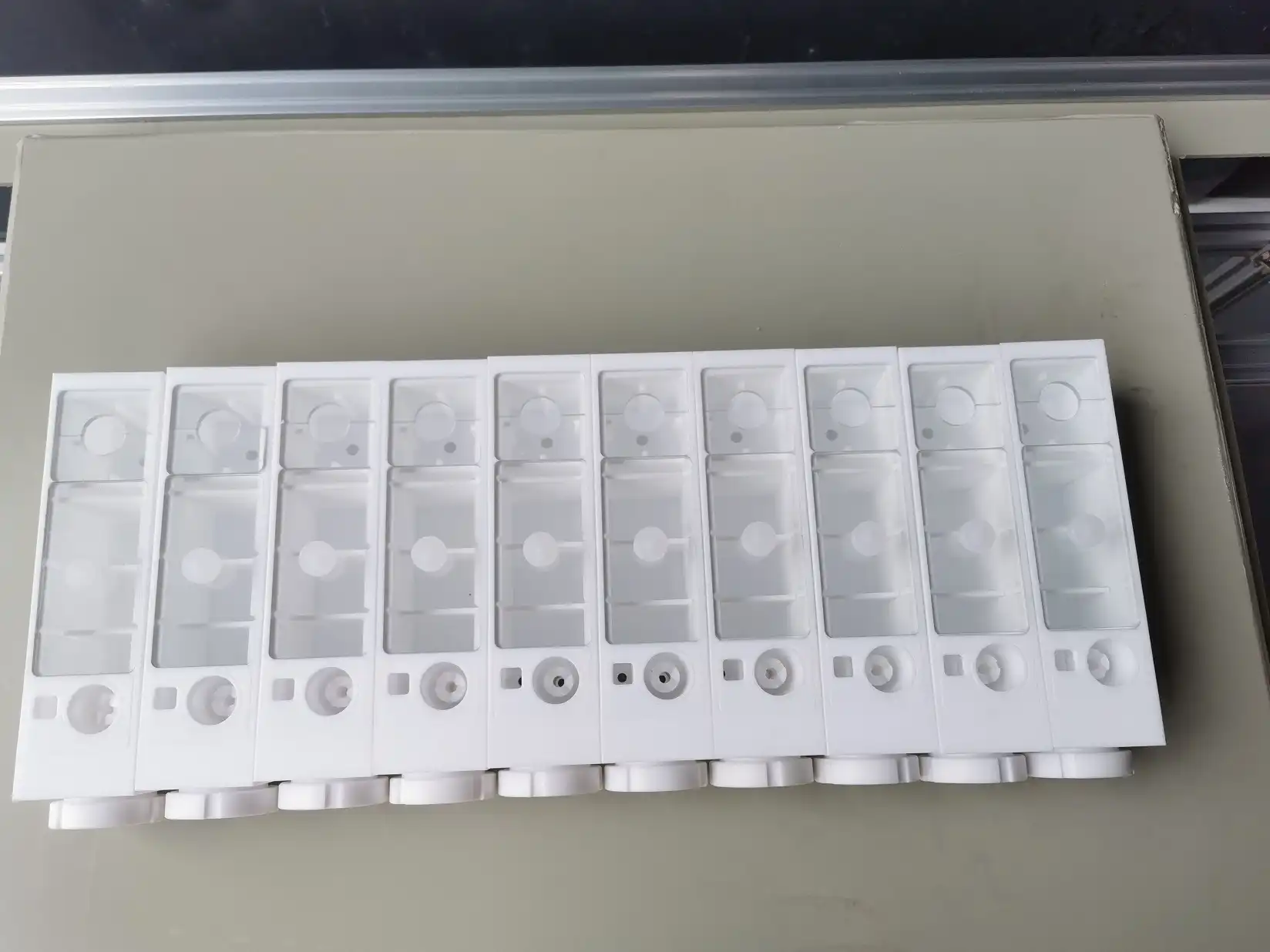

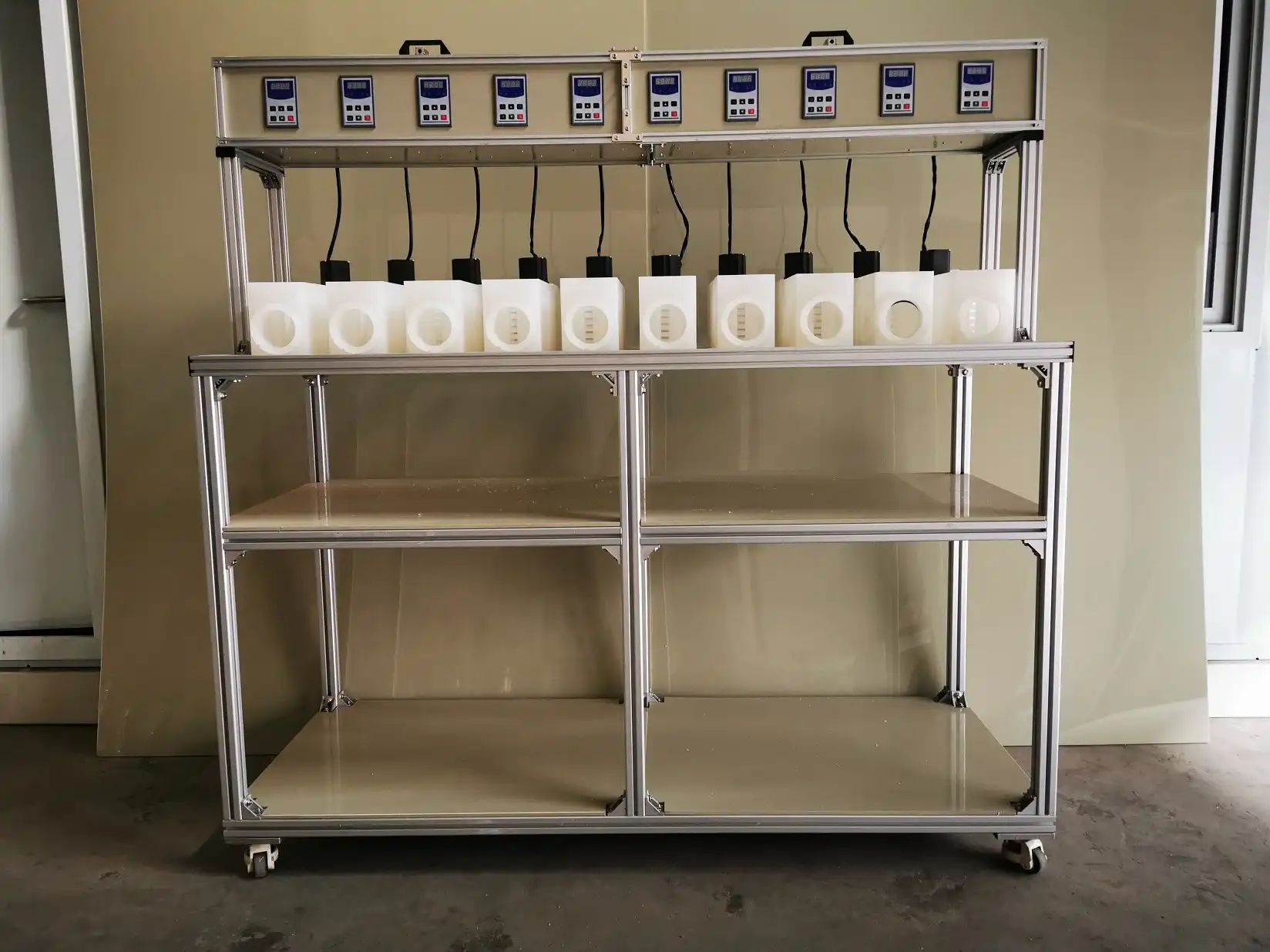

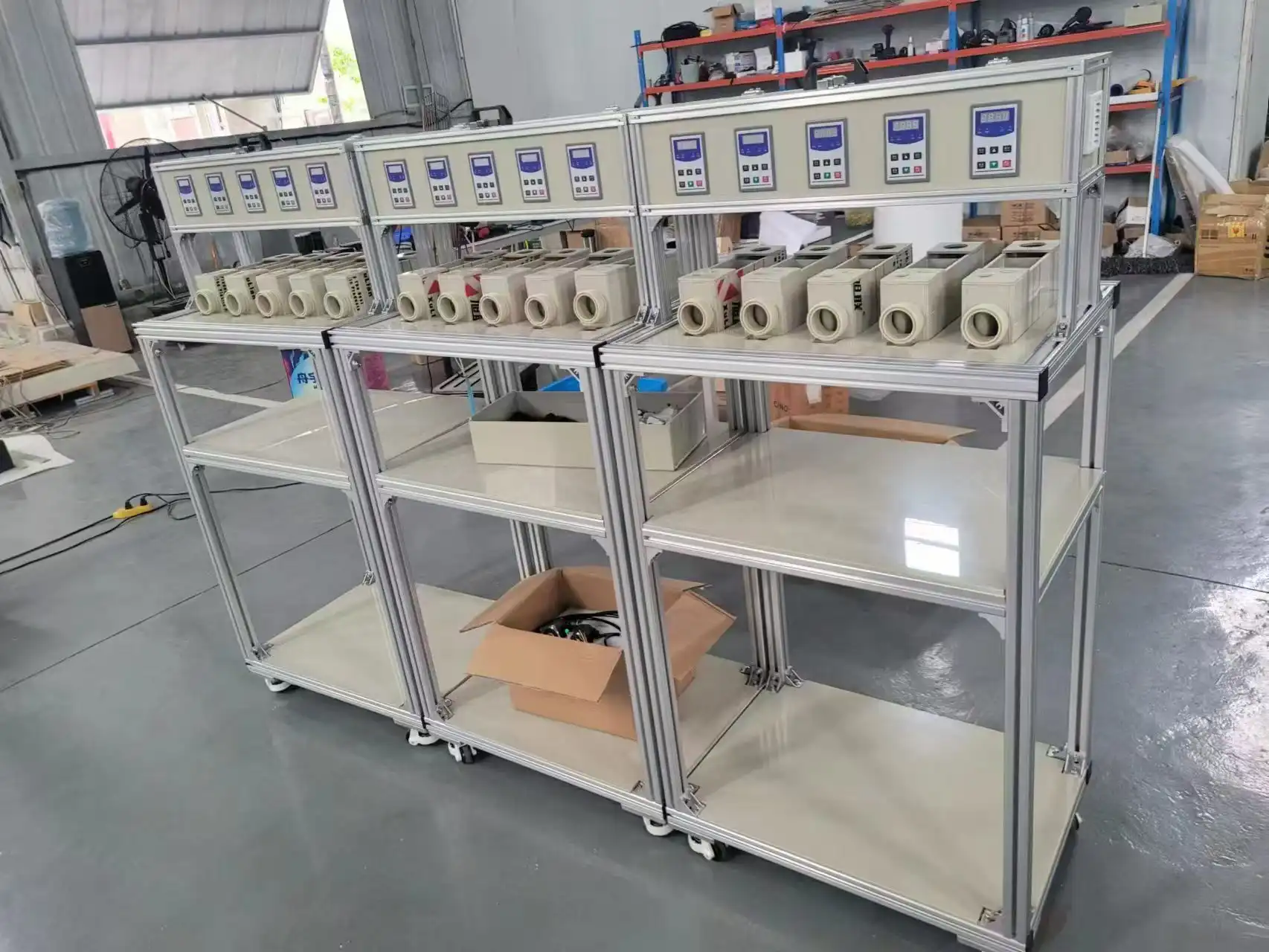

The Anatomy of a Mixer Settler
Mixing Chamber: Where the Magic Begins
The mixing chamber is the heart of a mixer settler, where the initial contact between immiscible liquids occurs. This compartment is equipped with an agitator, typically a propeller or impeller, designed to create turbulent flow. The agitator's speed can be adjusted, usually between 100 to 800 RPM, to optimize mixing intensity. High-quality mixer settlers, like those offered by Cuiyan Technology, feature precision-engineered agitators that ensure uniform dispersion while minimizing energy consumption.
Material selection for the mixing chamber is crucial, as it must withstand potentially corrosive substances. Options range from PP and PVC for milder applications to PTFE and titanium for highly aggressive environments. The chamber's design often incorporates baffles to prevent vortex formation and enhance mixing efficiency. Some advanced models include temperature control devices or pH adjustment mechanisms to fine-tune extraction conditions.
Settling Chamber: Gravity's Role in Separation
After mixing, the liquid mixture flows into the settling chamber, where phase separation occurs. This chamber is typically wider and deeper than the mixing zone to reduce flow velocity and allow gravity to work effectively. The key to efficient settling lies in the chamber's geometry and internal structures. Cuiyan Technology's mixer settlers employ patented baffle designs that promote laminar flow and prevent remixing, ensuring stable phase separation.
The settling chamber often features adjustable weirs or overflow devices that control the interface height between the separated phases. This adjustability is crucial for maintaining optimal extraction efficiency across various operating conditions. In some designs, such as those used in nuclear extraction processes, the settling chamber may incorporate additional safety features like anti-overflow tanks to prevent accidental releases.
Interface Control: Maintaining Extraction Efficiency
The interface between the separated phases is a critical zone in mixer settler operation. Precise control of this interface ensures that the lighter phase doesn't contaminate the heavier phase outlet and vice versa. Modern mixer settlers utilize advanced interface control mechanisms, including capacitance probes or optical sensors, to monitor and adjust the interface position automatically.
Cuiyan Technology's mixer settlers offer optional watch window devices, allowing operators to visually inspect the interface and make real-time adjustments. For applications requiring utmost precision, such as rare earth element extraction, the interface height can be fine-tuned to within millimeters, maximizing separation efficiency while minimizing product loss.
Operational Principles and Process Dynamics
Mass Transfer Kinetics
The effectiveness of a mixer settler hinges on the principles of mass transfer between immiscible liquids. During the mixing phase, the increased interfacial area between the two liquids promotes rapid mass transfer of the target compound from one phase to the other. The rate of this transfer is governed by factors such as concentration gradients, diffusion coefficients, and interfacial tension.
In Cuiyan Technology's mixer settlers, the mixing intensity can be precisely controlled to achieve the optimal balance between mass transfer rate and droplet size distribution. This control is crucial in applications like lithium battery recycling, where efficient extraction of valuable metals depends on maximizing the contact between the aqueous and organic phases while avoiding the formation of stable emulsions that could hinder separation.
Flow Patterns and Residence Time
The flow pattern within a mixer settler significantly impacts its performance. In the mixing chamber, turbulent flow ensures thorough contact between phases. As the mixture enters the settling chamber, the flow transitions to a more laminar regime, facilitating phase separation. The residence time in each chamber is a critical parameter that affects extraction efficiency.
Cuiyan Technology's mixer settlers are designed with optimized flow paths that minimize dead zones and ensure uniform residence time distributions. This is particularly important in continuous multi-stage extraction processes, such as those used in copper electroplate recycling, where consistent performance across all stages is essential for achieving high overall recovery rates.
Coalescence and Phase Separation Dynamics
The settling chamber's efficiency depends on the coalescence of dispersed droplets into larger globules that can readily separate. Factors influencing coalescence include droplet size distribution, interfacial tension, and the presence of surfactants or impurities. Cuiyan Technology's mixer settlers incorporate features that enhance coalescence, such as strategically placed coalescence plates or mesh elements.
In applications like nuclear extraction, where phase separation must be exceptionally clean, additional measures may be implemented. These can include electrostatic coalescers or special chemical additives that promote rapid phase disengagement without compromising the extraction process. The ability to fine-tune these separation dynamics makes mixer settlers adaptable to a wide range of extraction challenges across different industries.
Applications and Industrial Impact
Hydrometallurgy and Rare Earth Processing
Mixer settlers play a pivotal role in hydrometallurgical processes, particularly in the extraction and purification of rare earth elements. In the processing of neodymium and dysprosium, for instance, mixer settlers enable the precise separation of these valuable elements from complex ore matrices. The ability to adjust parameters such as agitation speed, phase ratios, and residence times allows for optimized extraction efficiency at each stage of the process.
Cuiyan Technology's mixer settlers, with their customizable configurations and corrosion-resistant materials, are well-suited for handling the aggressive chemical environments often encountered in rare earth processing. The high extraction rates and perfect separation effects achieved by these units contribute to increased yields and purity levels, crucial factors in the competitive rare earth market.
Environmental Remediation and Wastewater Treatment

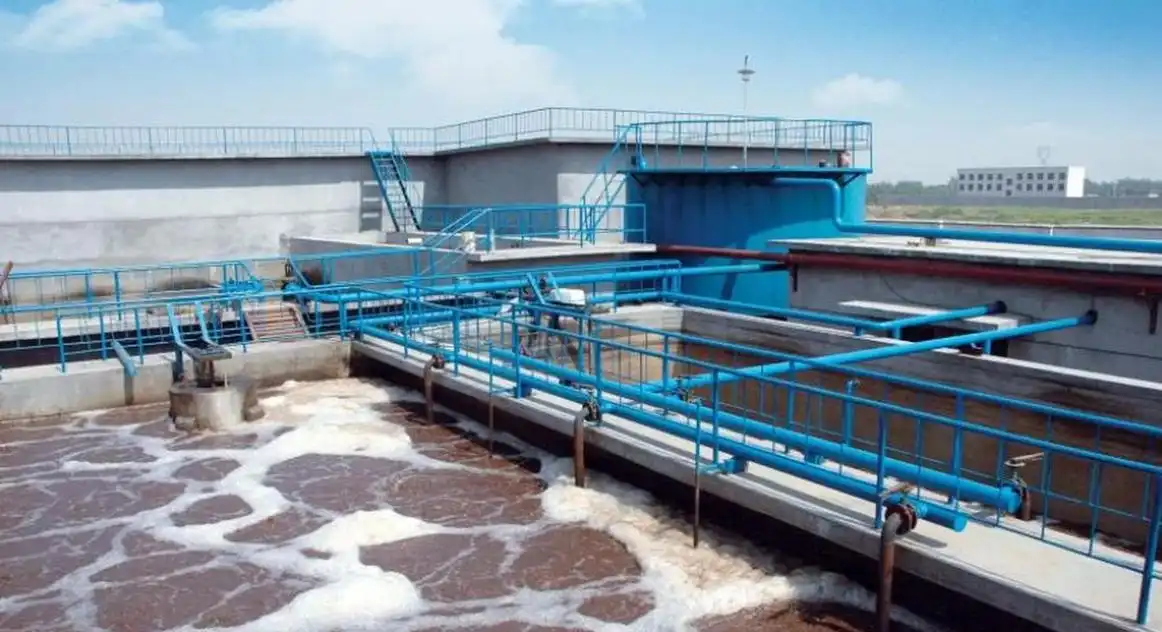

In the realm of environmental technology, mixer settlers are instrumental in treating industrial wastewater and recovering valuable resources. For heavy metal removal applications, such as extracting copper and zinc from effluents, mixer settlers offer a controlled environment for selective extraction. The ability to precisely manage pH levels and introduce specific extractants allows for targeted removal of contaminants while minimizing chemical consumption.
Cuiyan Technology's environmentally friendly high edition mixer settlers incorporate features like closed-loop operation and minimal organic solvent losses, aligning with stringent environmental regulations. These units can be integrated into comprehensive wastewater treatment systems, contributing to both pollution reduction and resource recovery objectives.
Nuclear Fuel Reprocessing and Isotope Separation
The nuclear industry relies heavily on mixer settlers for critical separation processes, including uranium/plutonium separation in fuel reprocessing. The high stakes involved in these applications demand mixer settlers of exceptional reliability and precision. Cuiyan Technology's offerings in this sector feature enhanced safety measures, such as radiation-resistant materials and fail-safe operational designs.
In isotope separation, where even minute differences in chemical behavior are exploited, the fine control offered by advanced mixer settlers is invaluable. The ability to maintain stable interfaces and precise flow control enables the separation of isotopes that would be challenging or impossible with other technologies. This capability not only supports nuclear power generation but also contributes to medical isotope production and scientific research.
Conclusion
Mixer settlers stand as a cornerstone technology in liquid-liquid extraction, offering a blend of simplicity and sophistication that caters to a wide array of industrial needs. From rare earth purification to environmental remediation, these versatile units continue to evolve, incorporating advanced materials and control systems to meet ever-more demanding separation challenges. As industries strive for greater efficiency and sustainability, the role of mixer settlers in enabling precise, scalable, and environmentally friendly extraction processes is set to grow, driving innovation in chemical processing across sectors.
