How Are Mixer Settlers Used in Rare Earth and Lithium Extraction?
Mixer settlers play a crucial role in rare earth and lithium extraction processes, offering efficient separation and purification of these valuable elements. These versatile devices combine mixing and settling stages to facilitate liquid-liquid extraction, allowing for the separation of rare earth elements and lithium from their ores or recycled materials. Mixer settlers are particularly effective due to their ability to handle large volumes, provide excellent mass transfer, and offer easy scalability. In rare earth extraction, they're used to separate individual elements from mixed rare earth concentrates, while in lithium extraction, they help isolate lithium from brine or recycled battery materials. The process typically involves multiple stages of mixing and settling, with each stage progressively purifying the target elements.
Understanding Mixer Settler Technology in Extraction Processes
Principles of Mixer Settler Operation
Mixer settlers operate on the principle of liquid-liquid extraction, utilizing the differences in solubility between two immiscible liquids. The process begins in the mixing chamber, where an aqueous solution containing the target elements is vigorously combined with an organic solvent. This mixing creates an emulsion, increasing the surface area for mass transfer between the two phases. The emulsion then flows into the settling chamber, where gravity separation occurs. The heavier aqueous phase settles to the bottom, while the lighter organic phase, now enriched with the extracted elements, rises to the top. This separation allows for the continuous flow of both phases to subsequent stages or collection points.

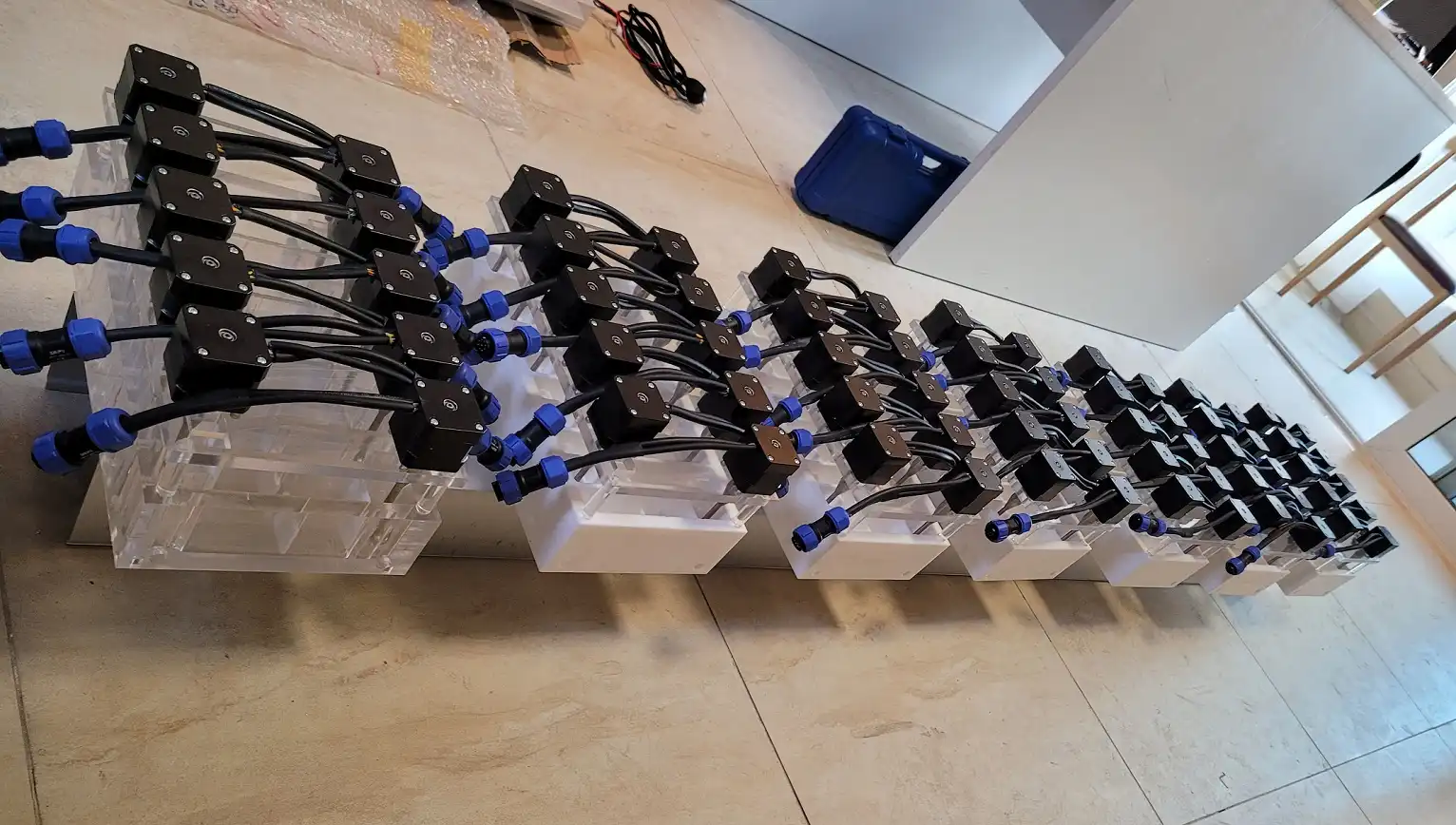

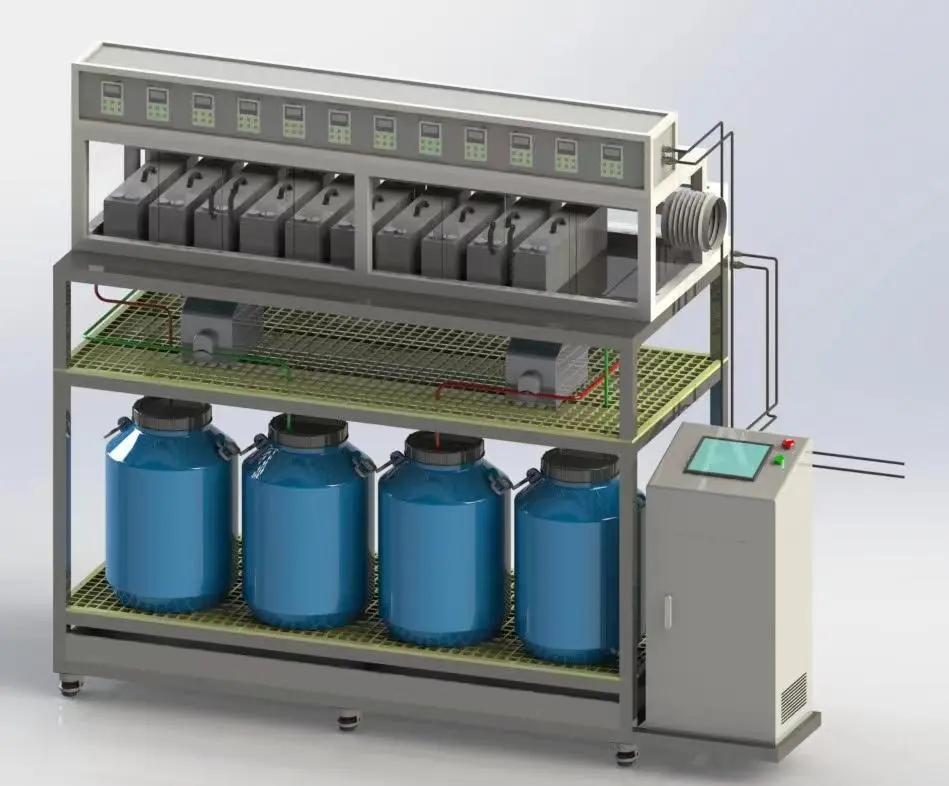

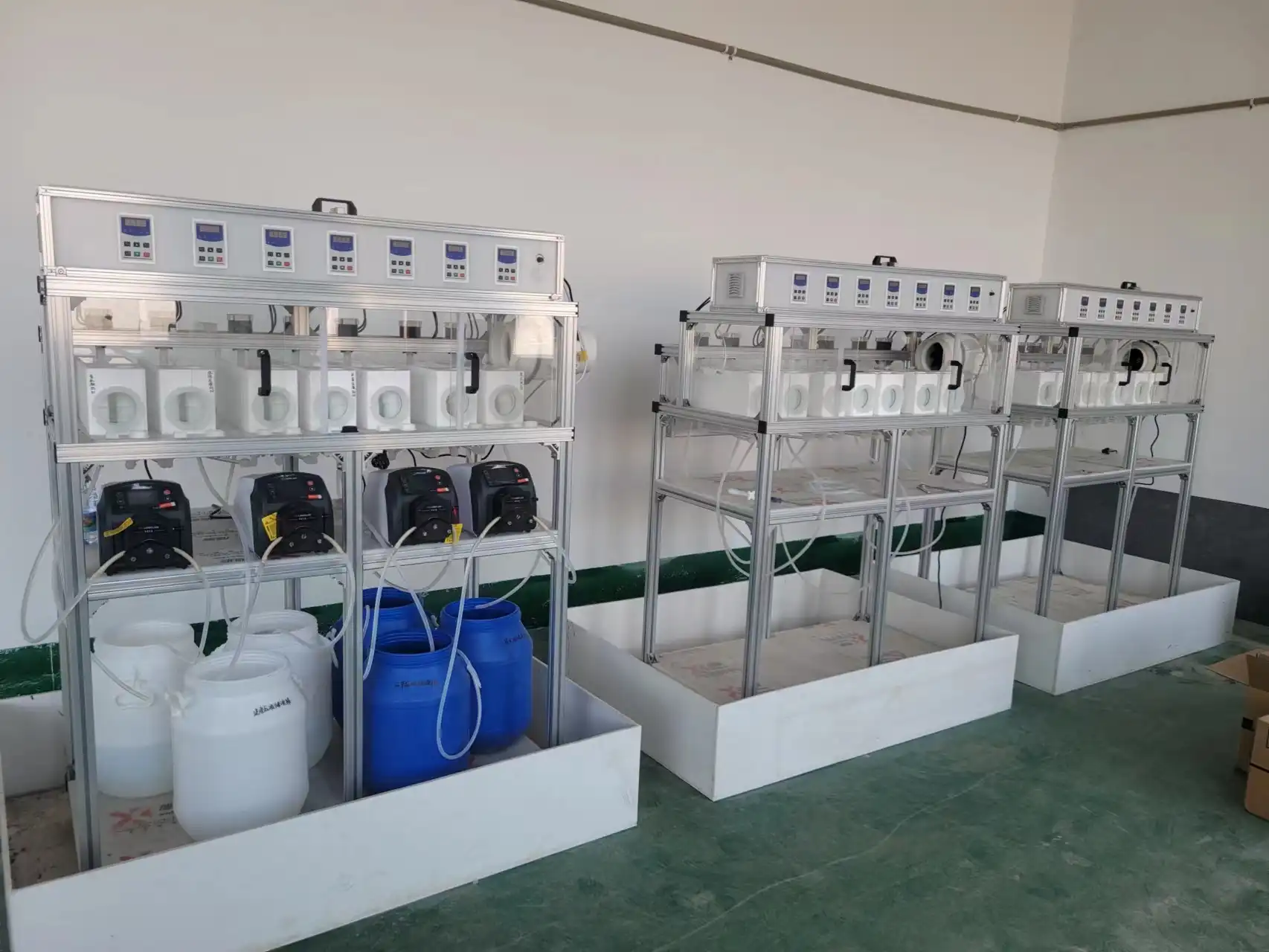

Key Components of Mixer Settlers
Modern mixer settlers are designed with several key components to optimize extraction efficiency. The mixing chamber typically features a high-speed impeller or agitator to ensure thorough blending of the aqueous and organic phases. The settling chamber is equipped with baffles or plates to promote smooth flow and prevent remixing. Some advanced designs incorporate adjustable weirs to control the interface height between phases, allowing for fine-tuning of the extraction process. Additionally, mixer settlers may be equipped with temperature control devices, pH adjustment mechanisms, or water-bath jackets to maintain optimal conditions for specific extraction processes.
Advantages of Mixer Settlers in Extraction
Mixer settlers offer numerous advantages in rare earth and lithium extraction processes. Their ability to handle large volumes continuously makes them suitable for industrial-scale operations. The design allows for easy adjustment of mixing intensity and settling time, providing flexibility in dealing with different feed compositions. Mixer settlers also boast high extraction rates and excellent separation effects, crucial for achieving high-purity products. The modular nature of these systems allows for easy scaling by adding or removing stages as needed. Moreover, their robust construction from materials like PP, PVC, or PTFE ensures resistance to corrosive chemicals often used in extraction processes.
Application of Mixer Settlers in Rare Earth Extraction
Separation of Individual Rare Earth Elements
In rare earth extraction, mixer settlers are instrumental in separating individual rare earth elements from mixed concentrates. The process typically involves multiple stages, each designed to extract specific elements based on their chemical properties. For instance, lighter rare earths like lanthanum and cerium are often separated in early stages, while heavier elements like ytterbium and lutetium are extracted in later stages. The organic phase in each stage is carefully selected to preferentially extract certain elements, allowing for precise separation. This staged extraction process is crucial for obtaining high-purity rare earth products essential for advanced technologies.
Process Optimization for Rare Earth Extraction
Optimizing mixer settler operations for rare earth extraction involves careful control of several parameters. The pH of the aqueous phase is critical, as it affects the solubility and extractability of different rare earth elements. Temperature control is also essential, as it influences reaction kinetics and separation efficiency. The ratio of organic to aqueous phase, known as the O/A ratio, is adjusted to maximize extraction while minimizing the amount of organic solvent used. Additionally, the selection of appropriate extractants and diluents in the organic phase is crucial for achieving selective separation of rare earth elements with similar chemical properties.
Challenges and Solutions in Rare Earth Extraction
Rare earth extraction using mixer settlers faces several challenges, including the complexity of separating elements with similar chemical properties. To address this, advanced extractants and multi-stage processes are employed. Another challenge is the potential for crud formation, which can interfere with phase separation. This is mitigated through careful control of impurities in the feed and regular maintenance of the equipment. Environmental concerns related to the use of organic solvents are addressed by implementing closed-loop systems and exploring more environmentally friendly extractants. Continuous research and development in this field aim to improve extraction efficiency while reducing environmental impact.
Lithium Extraction Using Mixer Settlers
Brine Processing for Lithium Extraction
Mixer settlers play a vital role in extracting lithium from brine sources, such as salt lakes. The process begins with the concentration of lithium-rich brine through solar evaporation. The concentrated brine then undergoes a series of extraction stages in mixer settlers. In each stage, the brine is mixed with an organic solvent containing a lithium-selective extractant. This process selectively removes lithium from the brine, leaving behind other salts. The lithium-rich organic phase is then stripped in subsequent stages to produce a purified lithium solution. This method is particularly effective for processing large volumes of brine with relatively low lithium concentrations.
Lithium Recovery from Recycled Batteries
As the demand for lithium in battery production grows, the importance of recycling spent lithium-ion batteries increases. Mixer settlers are employed in hydrometallurgical processes to recover lithium from battery waste. After physical preprocessing of the batteries, the resulting black mass undergoes leaching to dissolve lithium and other valuable metals. The leach solution is then processed through a series of mixer settler stages to selectively extract and purify lithium. This process not only recovers valuable lithium but also helps in managing electronic waste, contributing to a circular economy in the battery industry.
Innovations in Lithium Extraction Technology
Recent innovations in lithium extraction using mixer settlers focus on improving efficiency and sustainability. New extractants are being developed to enhance selectivity for lithium over other alkali metals, reducing the number of stages required for purification. There's also a growing interest in direct lithium extraction (DLE) technologies, which can be integrated with mixer settler systems for more efficient processing of low-concentration brines. Additionally, research is being conducted on using ionic liquids as alternatives to traditional organic solvents, potentially reducing environmental impacts. These advancements aim to make lithium extraction more economical and environmentally friendly, supporting the growing demand for lithium in clean energy technologies.
Conclusion
Mixer settlers are indispensable in the extraction and purification of rare earth elements and lithium, offering efficient and scalable solutions for these critical industries. Their versatility in handling various feed compositions, coupled with the ability to achieve high purity products, makes them a cornerstone technology in hydrometallurgical processes. As demand for rare earth elements and lithium continues to grow, driven by advancements in electronics and clean energy technologies, the role of mixer settlers in ensuring a steady supply of these materials becomes increasingly important. Ongoing innovations in mixer settler design and extraction processes promise to further enhance efficiency and sustainability in these vital extraction operations.
Contact Us
Ready to optimize your extraction processes? Cuiyan Technology offers cutting-edge mixer settler technology tailored for rare earth and lithium extraction. Experience higher extraction rates, perfect separation effects, and customizable solutions to meet your specific needs. Contact us at wangzhijun@cuiyan-tec.com to discover how our expertise can elevate your extraction operations.
References
Zhang, L., et al. (2020). "Advances in Rare Earth Element Extraction and Separation Using Solvent Extraction Technology." Hydrometallurgy, 203, 105-118.
Wang, J., et al. (2019). "Lithium Extraction from Brine Resources: Current Status and Future Prospects." Resources, Conservation and Recycling, 152, 104-112.
Chen, X., et al. (2018). "Separation of Heavy Rare Earths Using Mixer-Settlers: Process Optimization and Kinetics Study." Separation and Purification Technology, 195, 82-91.
Swain, B. (2017). "Recovery and Recycling of Lithium: A Review." Separation and Purification Technology, 172, 388-403.
Xie, F., et al. (2016). "A Critical Review on Solvent Extraction of Rare Earths from Aqueous Solutions." Minerals Engineering, 56, 10-28.
Meshram, P., et al. (2015). "Extraction of Lithium from Primary and Secondary Sources by Pre-treatment, Leaching and Separation: A Comprehensive Review." Hydrometallurgy, 150, 192-208.
