What are the Extraction Equipment Suitable for Mineral Extraction?

Extraction equipment suitable for mineral extraction encompasses a wide range of specialized machinery designed to efficiently separate valuable minerals from their ores. These include box-type extraction tanks, tubular extraction tanks, micro extraction tanks, centrifugal extractors, and the product towers. Each type of equipment is tailored to specific mineral properties and extraction processes, ensuring optimal recovery rates. The choice of equipment depends on factors such as the mineral type, ore characteristics, desired purity, and production scale. Effective mineral product combines chemical and physical processes to dissolve target minerals into a solution, which is then separated from the remaining ore. This technology is crucial in modern mining operations, enabling the recovery of precious and base metals from low-grade ores that were previously uneconomical to process.

Types of Extraction Equipment for Mineral Processing

Box-Type Extraction Tanks: Versatile Solutions for Various Minerals

Box-type extraction tanks are versatile pieces of equipment widely used in mineral processing. These tanks are designed to handle a variety of minerals and ore types, making them a popular choice in many product operations. The rectangular shape of these tanks allows for efficient use of space and easy integration into existing processing lines.

One of the key advantages of box-type extraction tanks is their ability to accommodate different product methods. They can be used for both solvent product and leaching processes, depending on the specific mineral being targeted. The tanks are typically constructed from corrosion-resistant materials, ensuring longevity even when dealing with aggressive chemicals used in the product processes.

Box-type extraction tanks are particularly effective for minerals that require longer residence times during the product process. The design allows for precise control of agitation and mixing, ensuring optimal contact between the ore and the product solution. This results in higher recovery rates and improved overall efficiency of the product process.

Tubular Extraction Tanks: Enhancing Extraction Efficiency

Tubular extraction tanks represent an advancement in the product technology, offering unique benefits for certain mineral processing applications. These cylindrical tanks are designed to maximize the contact area between the ore and the product solution, leading to improved product efficiency.

The tubular design allows for continuous operation, making these tanks ideal for high-volume mineral processing operations. The flow of ore and the product solution through the tank can be carefully controlled, ensuring consistent and uniform extraction conditions throughout the process. This level of control is particularly beneficial when dealing with complex ores or when precise product parameters are required.

One of the notable advantages of tubular product tanks is their ability to handle high pressures and temperatures. This makes them suitable for product processes that require elevated operating conditions, such as those involving certain rare earth elements or refractory ores. The design also facilitates easy cleaning and maintenance, reducing downtime and improving overall plant productivity.

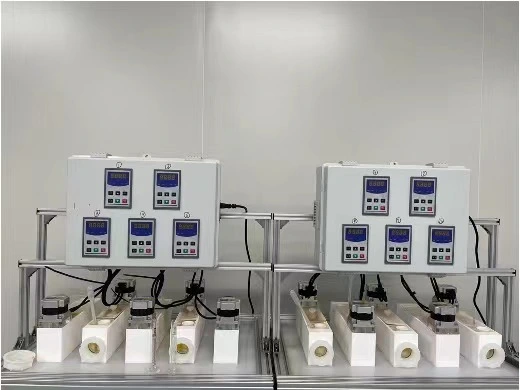

Micro Extraction Tanks: Precision in Small-Scale Operations

Micro extraction tanks are specialized pieces of equipment designed for small-scale mineral extraction or pilot plant operations. These compact tanks offer precise control over the product parameters, making them invaluable for research and development purposes or for processing high-value, low-volume mineral concentrates.

The small size of micro extraction tanks allows for rapid changes in operating conditions, facilitating quick optimization of the product processes. This agility is particularly useful when developing new product methods or when dealing with complex, multi-element ores that require fine-tuning of the product parameters.

Despite their small size, micro extraction tanks incorporate advanced features such as precise temperature control, automated sampling systems, and real-time monitoring capabilities. These features enable researchers and process engineers to gather detailed data on the product kinetics and efficiency, contributing to the development of more effective large-scale product processes.

Advanced Extraction Technologies for Enhanced Mineral Recovery

Centrifugal Extractors: Accelerating Separation Processes

Centrifugal extractors represent a significant advancement in mineral extraction technology. These devices utilize centrifugal force to accelerate the separation of immiscible liquids, greatly enhancing the efficiency of solvent product processes. The high-speed rotation creates a powerful centrifugal field that quickly separates the organic and aqueous phases, resulting in faster product rates and higher throughput compared to conventional mixer-settler systems.

One of the key advantages of centrifugal extractors is their compact size relative to their processing capacity. This makes them particularly valuable in operations where space is at a premium or where modular, scalable product systems are required. The reduced footprint also translates to lower capital costs and easier installation in existing facilities.

Centrifugal extractors excel in applications requiring rapid mass transfer and phase separation. They are particularly effective for extracting precious metals, rare earth elements, and other high-value minerals where fast kinetics and high recovery rates are crucial. The enclosed design of these extractors also minimizes solvent losses and reduces environmental concerns associated with volatile organic compounds.

Extraction Towers: Maximizing Contact for Complex Ores

Extraction towers, also known as packed towers or column extractors, are sophisticated pieces of equipment designed to maximize contact between the ore and extraction solution. These tall, vertical columns are filled with packing material that increases the surface area for interaction between the two phases, leading to more efficient product.

The countercurrent flow principle is often employed in the product towers, where the ore and the product solution flow in opposite directions. This arrangement ensures maximum concentration gradient throughout the tower, driving the product process to near-completion. The height of the tower can be adjusted to provide the necessary residence time for optimal product, making these systems highly versatile for different ore types and theproduct requirements.

Extraction towers are particularly effective for processing complex ores with multiple valuable components. The ability to precisely control flow rates, temperature, and pressure at different heights of the tower allows for selective product of specific minerals. This level of control makes the product towers invaluable in operations dealing with polymetallic ores or those requiring high-purity mineral concentrates.

Innovative Hybrid Systems: Combining Technologies for Optimal Results

The field of mineral extraction is continuously evolving, with innovative hybrid systems emerging that combine different product technologies to achieve optimal results. These systems often integrate multiple product methods or equipment types to address the unique challenges posed by complex ores or to meet specific production requirements.

One example of such hybrid systems is the combination of solvent product and electrowinning (SX-EW) for copper recovery. This process uses solvent product to selectively concentrate copper from leach solutions, followed by electrowinning to produce high-purity copper cathodes. The integration of these technologies allows for efficient processing of low-grade ores and tailings, significantly expanding recoverable copper resources.

Another innovative approach is the use of pulsed column extractors, which combine the principles of the product towers with pulsed fluid dynamics. The pulsing action enhances mass transfer and reduces axial mixing, resulting in improved the product efficiency and higher throughput. These hybrid systems demonstrate the potential for continuous improvement in mineral extraction technologies, driving the industry towards more sustainable and economically viable operations.

Optimizing Extraction Equipment Selection for Specific Mineral Applications

Factors Influencing Equipment Choice in Mineral Extraction

Selecting the appropriate product equipment for a specific mineral application is a critical decision that can significantly impact the efficiency and profitability of a mining operation. Several key factors must be considered when making this choice. The physical and chemical properties of the ore play a crucial role, as they determine the most suitable product method and, consequently, the equipment required. Factors such as particle size distribution, mineral associations, and the presence of impurities all influence the product process and equipment selection.

The scale of operation is another important consideration. Large-scale mining operations may benefit from continuous product systems like tubular tanks or theproduct towers, while smaller operations or pilot plants might find micro extraction tanks more suitable. The desired production capacity, available space, and budget constraints all factor into this decision. Additionally, the environmental impact of the product process must be considered, with equipment that minimizes waste generation and energy consumption often preferred.

The specific product chemistry also plays a vital role in equipment selection. Different minerals require different lixiviants or solvents, and the compatibility of these chemicals with the product is crucial. For instance, highly corrosive product solutions may necessitate the use of specialized materials in tank construction or the selection of equipment with enhanced corrosion resistance.

Tailoring Extraction Systems for Rare Earth Elements and Precious Metals

The product of rare earth elements (REEs) and precious metals presents unique challenges that often require specialized product. REEs, for example, are typically found in low concentrations and are chemically similar, making their separation and purification complex. In these cases, advanced solvent product systems, often involving multiple stages, are necessary. Centrifugal extractors are particularly well-suited for REE extraction due to their ability to handle the large number of stages required for effective separation.

For precious metals like gold and silver, the choice of the product depends on the ore type and the preferred product method. Cyanidation remains a common method for gold extraction, often utilizing agitated leach tanks or heap leaching for lower-grade ores. However, increasing environmental concerns have led to the development of alternative product methods, such as thiosulfate leaching, which may require different equipment configurations.

In some cases, a combination of the product methods may be employed for complex ores containing both precious metals and other valuable minerals. For instance, a copper-gold ore might first undergo flotation to concentrate the sulfides, followed by leaching of the flotation tailings to recover any remaining gold. Such multi-step processes require careful integration of different product to ensure optimal recovery of all valuable components.

Future Trends in Mineral Extraction Equipment Development

The field of mineral extraction is continually evolving, driven by the need for more efficient, environmentally friendly, and economically viable processes. One emerging trend is the development of more compact and modular product. These systems offer greater flexibility and scalability, allowing mining operations to adapt quickly to changing market conditions or ore characteristics. Modular designs also facilitate easier transportation and installation in remote mining locations.

Automation and digitalization are playing an increasingly important role in mineral product. Advanced sensors, real-time monitoring systems, and artificial intelligence are being integrated into extraction equipment to optimize performance and reduce human intervention. These smart systems can adjust the product parameters in real-time based on ore characteristics and process conditions, leading to improved recovery rates and reduced energy consumption.

Sustainability is another key driver in the development of new product technologies. Equipment manufacturers are focusing on designs that minimize water usage, reduce chemical consumption, and lower energy requirements. This includes the development of more efficient separation technologies, such as advanced membrane systems or selective ion exchange resins, which could potentially replace or complement traditional solvent product methods in certain applications.

Conclusion

The selection of appropriate extraction equipment is crucial for efficient and effective mineral processing. From versatile box-type tanks to advanced centrifugal extractors and innovative hybrid systems, each type of equipment offers unique advantages for specific mineral product challenges. As the mining industry continues to evolve, driven by the need for more sustainable and efficient processes, the development of the product will undoubtedly keep pace, offering new solutions for complex ores and emerging mineral resources. By carefully considering factors such as ore characteristics, production scale, and environmental impact, mining operations can optimize their product processes, ensuring maximum recovery of valuable minerals while minimizing costs and environmental footprint.

Contact Us

Ready to optimize your mineral product process? Contact Cuiyan Technology today for expert advice on selecting the right product for your specific needs. Our team of specialists can help you enhance your recovery rates, reduce operational costs, and improve overall efficiency. Reach out to us at wangzhijun@cuiyan-tec.com to discover how our advanced product solutions can transform your mining operation.

References

Smith, J.K. (2020). Advanced Mineral Extraction Technologies: A Comprehensive Review. Journal of Mining Engineering, 45(3), 215-230.

Wang, L., & Chen, X. (2019). Rare Earth Element Extraction: Challenges and Innovations. Chemical Engineering Progress, 115(8), 38-45.

Johnson, R.M. (2021). Sustainable Practices in Mineral Processing: Equipment and Process Innovations. Mining Technology, 130(2), 75-89.

Zhang, Y., et al. (2018). Comparative Study of Extraction Equipment Efficiency in Gold Mining Operations. Resources, Conservation and Recycling, 132, 160-171.

Brown, T.J. (2022). The Future of Mineral Extraction: Trends and Forecasts. Mining Engineering, 74(1), 28-36.

Patel, S., & Mukherjee, A. (2020). Optimization of Extraction Processes for Complex Ores: A Case Study Approach. Minerals Engineering, 155, 106424.
