Understanding Mixer Settler Systems in Hydrometallurgy
Principles of Mixer Settler Operation
Mixer settler systems operate on the principle of liquid-liquid extraction, where two immiscible phases – typically an aqueous solution containing the metal of interest and an organic solvent – are brought into contact. The mixing stage ensures intimate contact between the phases, promoting the transfer of metal ions from the aqueous to the organic phase. Subsequently, in the settling stage, the phases separate due to density differences, allowing for the collection of the metal-rich organic phase.
The efficiency of this process depends on several factors, including the mixing intensity, residence time, and the chemical properties of the extractant used. Modern mixer settlers are designed to optimize these parameters, offering adjustable agitator speeds and phase interface heights to achieve the desired extraction performance.
Components and Design Features

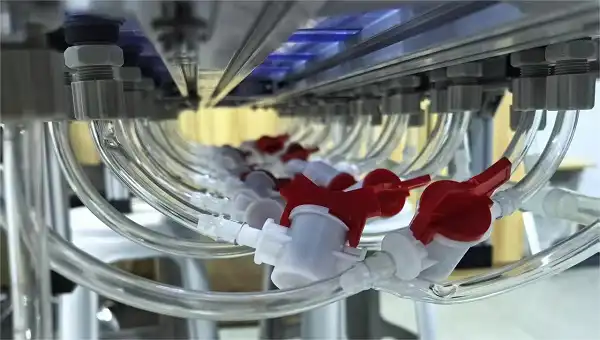

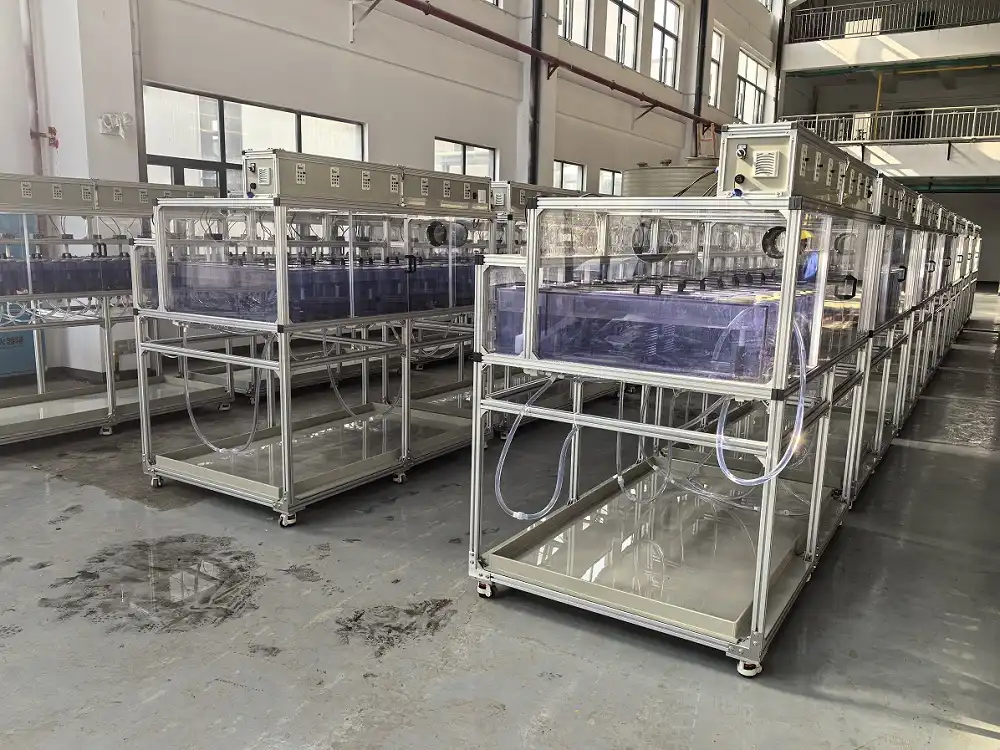

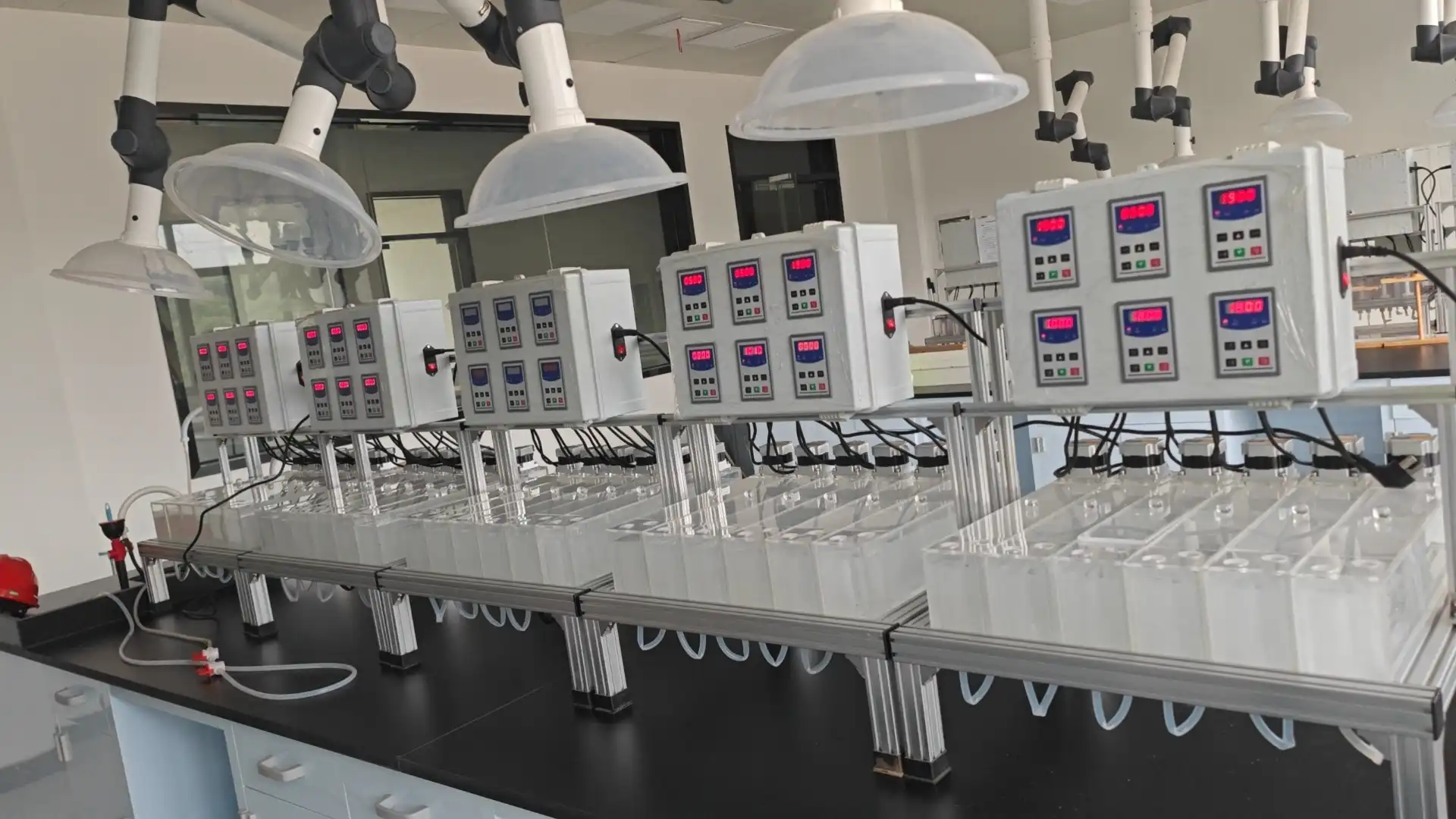

A typical mixer settler unit consists of two main sections: the mixer and the settler. The mixer is equipped with an impeller or agitator to create turbulence and promote phase contact. The settler, on the other hand, provides a quiescent zone for phase separation. Advanced designs incorporate features such as anti-overflow tanks, watch windows for visual monitoring, and water-bath jackets for temperature control.
The construction materials for mixer settlers are chosen based on the specific application and chemical environment. Common materials include polypropylene (PP), polyvinyl chloride (PVC), and stainless steel (SUS), with specialized options like PEEK or titanium available for more demanding processes. The plate thickness, ranging from 5mm to 10mm, is selected to ensure structural integrity and long-term durability.
Advantages of Mixer Settler Technology
Mixer settler systems offer numerous advantages in hydrometallurgical processes. Their modular design allows for easy scaling and customization, with options for multiple stages to enhance extraction efficiency. The ability to adjust parameters such as mixing intensity and phase ratios provides operational flexibility, enabling operators to optimize performance for different feed compositions.
Moreover, these systems boast high extraction rates and excellent phase separation, minimizing the risk of entrainment and ensuring high-quality products. The robust construction and simple operation make mixer settlers a reliable choice for continuous industrial applications, while their compact footprint makes them suitable for installations with space constraints.
Applications of Mixer Settlers in Metal Extraction
Rare Earth Element Extraction
The extraction of rare earth elements (REEs) is one of the most significant applications of mixer settler technology. These critical materials, essential for various high-tech applications, often occur in low concentrations and require sophisticated separation techniques. Mixer settlers excel in this domain, allowing for the selective extraction and separation of individual REEs through careful control of pH, extractant composition, and phase ratios.
In a typical REE extraction process, multiple mixer settler stages are employed in series to achieve high purity and recovery rates. The ability to fine-tune operating conditions at each stage enables the development of highly efficient separation schemes, overcoming the challenges posed by the similar chemical properties of REEs.
Base Metal Recovery
Mixer settlers play a crucial role in the recovery of base metals such as copper, nickel, and cobalt from leach solutions and industrial effluents. In copper extraction, for instance, mixer settler circuits are used to selectively remove copper from pregnant leach solutions, often using extractants like LIX or Acorga. The loaded organic phase is then stripped to produce a concentrated copper electrolyte suitable for electrowinning.
For nickel and cobalt extraction, particularly from laterite ores or recycled materials, mixer settlers offer the flexibility to handle complex feed compositions. By employing appropriate extractants and pH control, these systems can achieve effective separation of nickel and cobalt, even in the presence of impurities like magnesium and calcium.
Emerging Applications in Battery Recycling
As the demand for electric vehicles and energy storage systems grows, the recycling of lithium-ion batteries has become a critical challenge. Mixer settler systems are finding new applications in this field, offering efficient methods for recovering valuable metals like lithium, cobalt, and nickel from spent batteries.
In these processes, mixer settlers are used to selectively extract and separate the target metals from complex leach solutions derived from battery waste. The ability to handle high throughputs and achieve high separation factors makes mixer settlers an attractive option for large-scale battery recycling operations, contributing to the circular economy of critical metals.
Optimizing Mixer Settler Performance in Hydrometallurgical Processes
Process Parameter Optimization
Achieving optimal performance in mixer settler systems requires careful tuning of various process parameters. Key variables include the organic-to-aqueous (O/A) ratio, mixing intensity, and residence time in both the mixer and settler sections. Advanced mixer settler designs offer the flexibility to adjust these parameters, allowing operators to optimize extraction efficiency and phase separation for specific feed compositions and target metals.
For instance, in rare earth extraction, the O/A ratio and pH are critical factors influencing selectivity. By adjusting these parameters across multiple stages, operators can develop extraction schemes that effectively separate individual REEs. Similarly, in base metal recovery, optimizing mixing intensity and settler design can minimize entrainment and improve overall metal recovery rates.
Material Selection and Maintenance
The choice of materials for mixer settler construction is crucial for ensuring long-term performance and reliability. While polypropylene (PP) and PVC are common choices for many applications due to their chemical resistance and cost-effectiveness, more demanding processes may require specialized materials like PTFE or titanium.
Regular maintenance is essential to prevent issues such as scaling, corrosion, or mechanical wear. This includes routine inspections of impellers, seals, and vessel walls, as well as periodic cleaning to remove any accumulated solids or crud. Implementing a proactive maintenance strategy can significantly extend the lifespan of mixer settler equipment and maintain optimal performance over time.
Innovations in Mixer Settler Design
Ongoing research and development efforts are driving innovations in mixer settler technology. Advanced designs incorporate features such as improved phase disengagement zones, enhanced mixing devices, and integrated coalescence aids to boost efficiency and reduce footprint. Some modern systems also integrate inline analytical tools for real-time monitoring of metal concentrations and phase compositions, enabling more precise process control.
Furthermore, computational fluid dynamics (CFD) modeling is increasingly used to optimize mixer settler designs, allowing engineers to predict flow patterns, mixing efficiency, and phase separation behavior. This approach facilitates the development of more efficient and compact mixer settler units tailored to specific hydrometallurgical applications.
Conclusion
Mixer settler systems have established themselves as indispensable tools in modern hydrometallurgy, offering unparalleled flexibility and efficiency in metal extraction and purification processes. From rare earth elements to base metals and emerging applications in battery recycling, these versatile systems continue to play a pivotal role in meeting the world's growing demand for high-purity metals. As technology advances and environmental considerations become increasingly important, the ongoing development of mixer settler technology promises to further enhance their performance, sustainability, and applicability across a wide range of hydrometallurgical processes.
