Fundamentals of Mixer Settler Technology in Petrochemicals
Operating Principles and Design Features

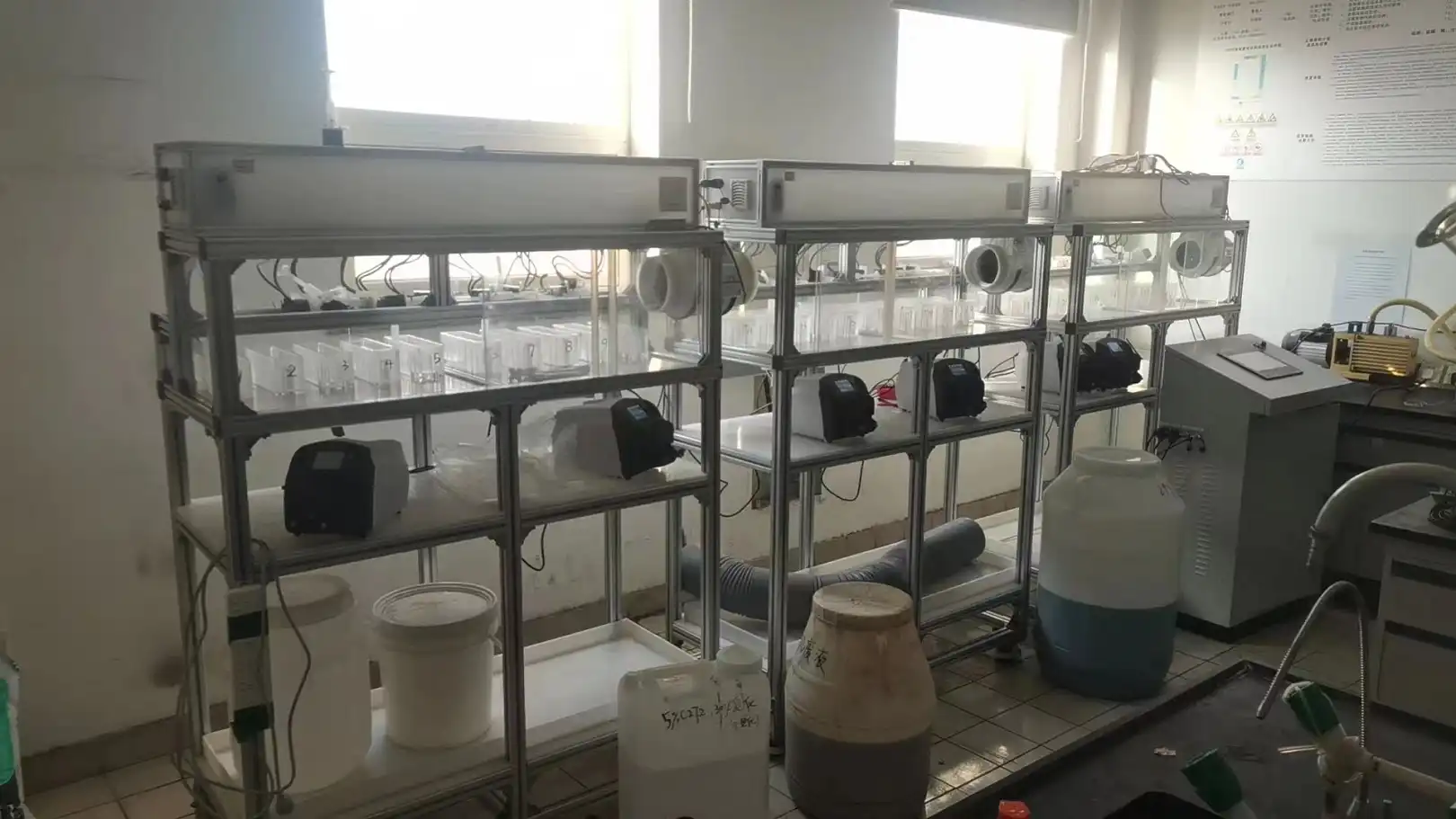

Mixer settlers consist of two main components: a mixing chamber and a settling chamber. In the mixing chamber, immiscible liquids are vigorously agitated to promote mass transfer. The mixture then flows into the settling chamber, where gravity separation occurs. This design allows for continuous operation and efficient phase separation.
Key design features of modern mixer settlers include:
- Adjustable impeller speed for optimal mixing intensity
- Baffles to prevent vortex formation and enhance mixing efficiency
- Weirs and picket fences to control interface levels and improve phase separation

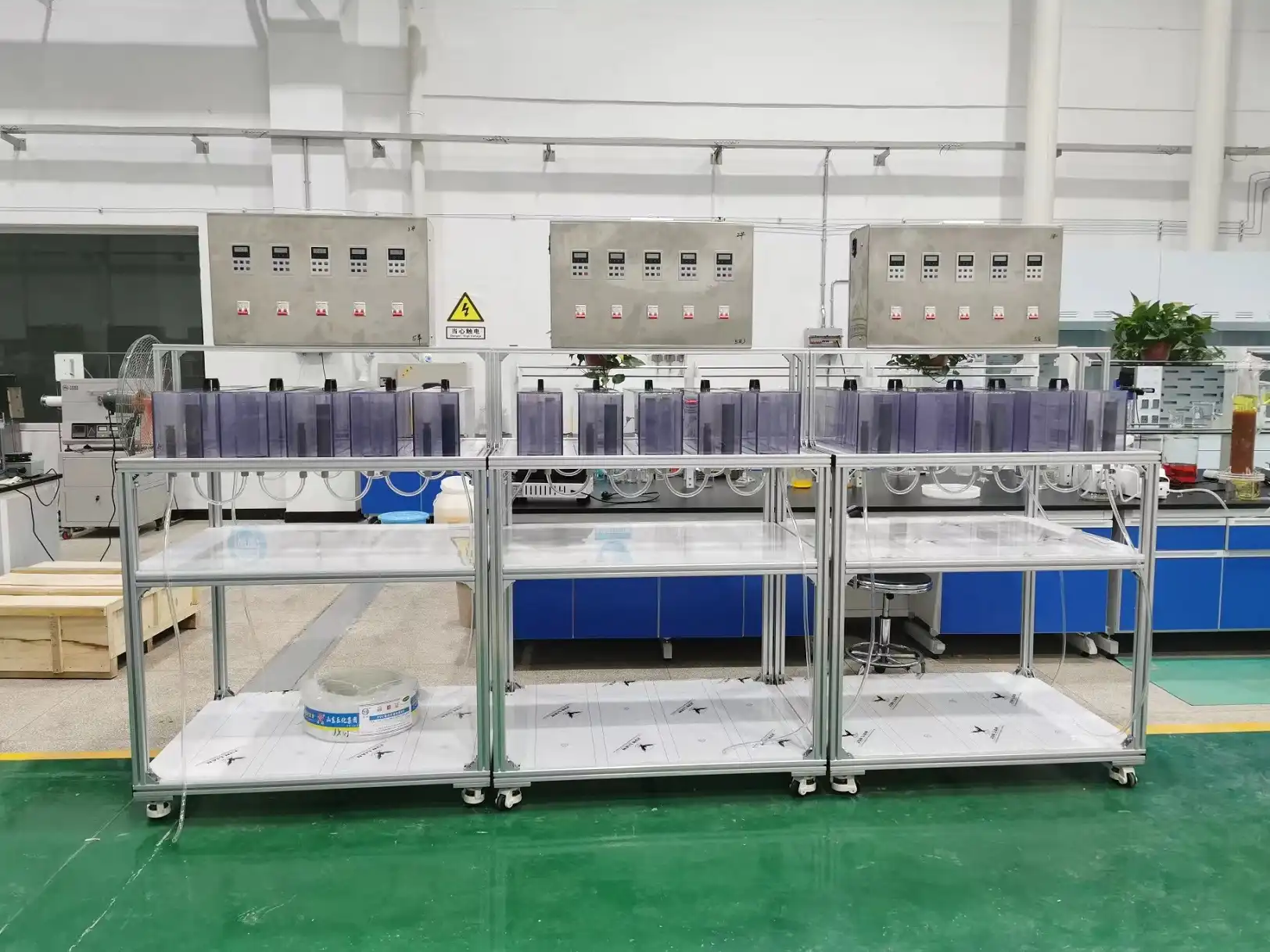

- Multiple stages for increased extraction efficiency
Material Selection for Corrosion Resistance
In petrochemical applications, mixer settlers must withstand harsh chemical environments. Common materials used include:
- Stainless steel (e.g., 316L) for general corrosion resistance
- Hastelloy or titanium for extremely corrosive media
- Fluoropolymers (e.g., PTFE) for lining or sealing components
The choice of material depends on the specific chemicals involved and operating conditions, ensuring longevity and reliability of the equipment.
Process Control and Automation
Modern mixer settlers incorporate advanced control systems to optimize performance:
- PLC-based control for precise adjustment of operating parameters
- Real-time monitoring of interface levels, flow rates, and temperatures
- Automated sampling and analysis for continuous process optimization
- Integration with plant-wide control systems for seamless operation
These automation features enhance consistency, reduce operator workload, and allow for rapid response to changing process conditions.
Key Benefits of Mixer Settlers in Petrochemical Applications
Enhanced Extraction Efficiency
Mixer settlers offer superior extraction efficiency compared to other liquid-liquid extraction methods. The controlled mixing and settling stages allow for optimal mass transfer between phases. This results in higher recovery rates of target compounds and improved separation of impurities.
Factors contributing to enhanced efficiency include:
- Adjustable mixing intensity to suit different chemical systems
- Multi-stage configurations for achieving high purity levels
- Optimized flow patterns to minimize back-mixing and maximize contact time
Operational Flexibility and Scalability
One of the key advantages of mixer settlers is their adaptability to various process requirements:
- Modular design allows for easy addition or removal of stages
- Wide operating range in terms of flow rates and phase ratios
- Ability to handle varying feed compositions and product specifications
- Straightforward scale-up from pilot to industrial scale
This flexibility enables petrochemical plants to respond quickly to changing market demands or feedstock quality without major equipment modifications.
Energy Efficiency and Cost Savings
Mixer settlers offer significant energy and cost benefits in petrochemical operations:
- Lower power consumption compared to centrifugal extractors
- Reduced solvent usage through efficient mass transfer
- Minimal maintenance requirements due to simple mechanical design
- Potential for heat integration to optimize energy utilization
These factors contribute to lower operating costs and improved overall process economics in petrochemical plants by minimizing energy consumption, reducing maintenance frequency, and extending equipment lifespan. As a result, plants achieve higher efficiency, enhanced reliability, and more sustainable long-term profitability.
Use Cases and Applications in the Petrochemical Industry
Aromatics Extraction and Purification
Mixer settlers play a crucial role in the production and purification of aromatic compounds:
- Separation of benzene, toluene, and xylenes (BTX) from naphtha reformate
- Removal of non-aromatic impurities to meet product specifications
- Recovery of valuable aromatics from process streams
The ability to handle large volumes and achieve high purity levels makes mixer settlers ideal for these applications. Multi-stage configurations allow for efficient fractionation of different aromatic species.
Solvent Recovery and Recycling
In petrochemical processes, solvent recovery is essential for cost reduction and environmental compliance. Mixer settlers excel in this area:
- Extraction of solvents from waste streams for reuse
- Purification of recovered solvents to meet process requirements
- Separation of co-solvents or entrainers in azeotropic distillation processes
The flexibility of mixer settlers allows for handling various solvent systems and adapting to changing feed compositions, ensuring consistent solvent quality for recycling.
Acid and Alkali Purification
Mixer settlers are widely used in the purification of acids and alkalis used in petrochemical processes:
- Removal of organic impurities from sulfuric acid
- Purification of caustic soda solutions
- Recovery of acids from spent pickle liquors
The corrosion-resistant materials and design features of modern mixer settlers make them suitable for handling these aggressive chemicals safely and efficiently.
Conclusion
Mixer settlers have become indispensable in the petrochemical industry, offering a powerful combination of efficiency, flexibility, and cost-effectiveness. Their ability to handle a wide range of liquid-liquid extraction tasks makes them valuable assets in various processes, from aromatics production to solvent recovery. As the industry continues to evolve, mixer settlers will play a crucial role in meeting the demands for higher purity products, improved resource utilization, and enhanced environmental performance. By leveraging the benefits of mixer settler technology, petrochemical companies can optimize their operations and maintain a competitive edge in the global market.
